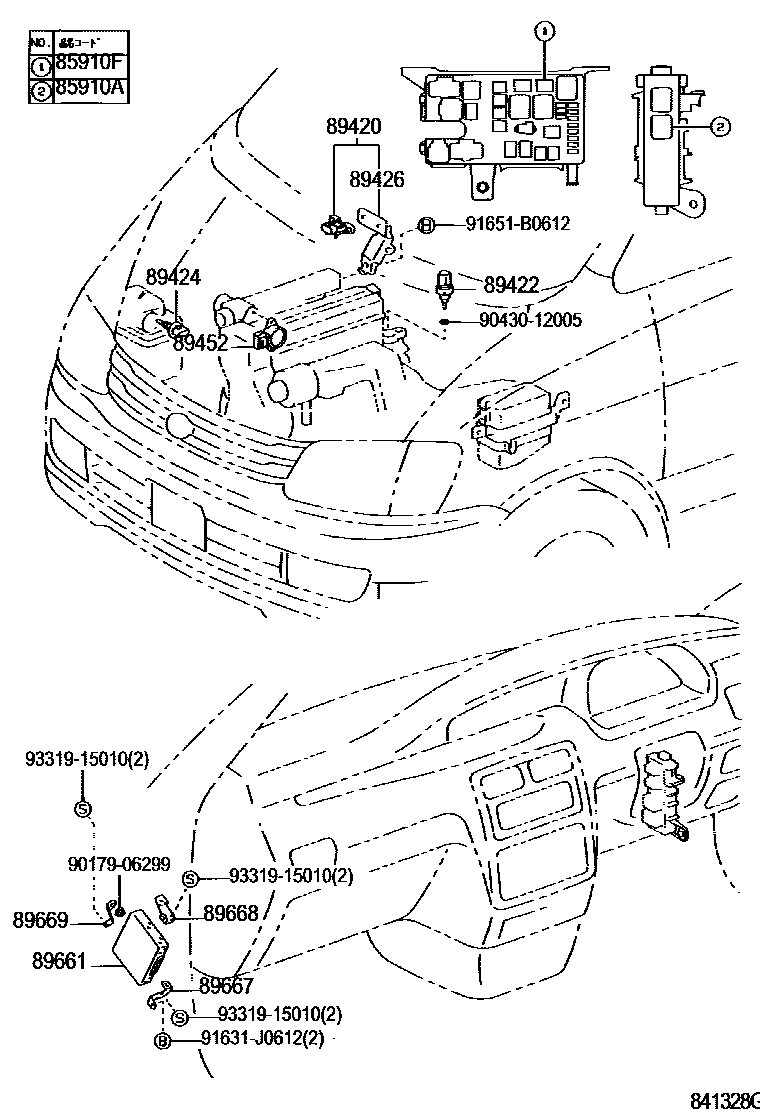

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iSR40199812-200111

85910FRELAY, COMPUTER (FOR EFI)

main90987-02012iSR40199812-200111

89420SENSOR ASSY, VACUUM

main89420-28060iSR40199611-199812

main89420-28070iKR42199812-200310

main89420-28090iSR40199812-200111

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010iSR40199611-199703

main89422-22030iSR40199703-199812

MARK 89422-22030*369

main89422-35010iKR42199812-200310

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iSR40199611-199812

89426BRACKET, VACUUM SENSOR

main89426-28060iSR40199812-200111

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-0A010iKR42199812-200310

PART NUMBER LABEL=89452-0A010

main89452-33030iSR40199611-199812

89661COMPUTER, ENGINE CONTROL

main89660-28820iKR42..ARL199812-200310

main89660-28830iKR42..GEN199812-200310

main89661-28360iSR40..MTM..GEN199611-199812

main89661-28361iSR40..MTM..GEN199812-200111

main89661-28800iSR40..ATM..GEN199611-199812

main89661-28801iSR40..ATM..GEN199812-200111

main89661-28810iSR40..ARL199710-199812

main89661-28811iSR40..ARL199812-200111

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-28040iSR40199611-199812

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-28050iSR40199611-199812

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-28050iSR40199611-199812

9017906299

main90179-06299

9043012005

main90430-12005

91631J0612

main91631-J0612

91651B0612

main91651-B0612

9331915010

main93319-15010

16 parts on this diagram · 2 diagrams in section
