METER

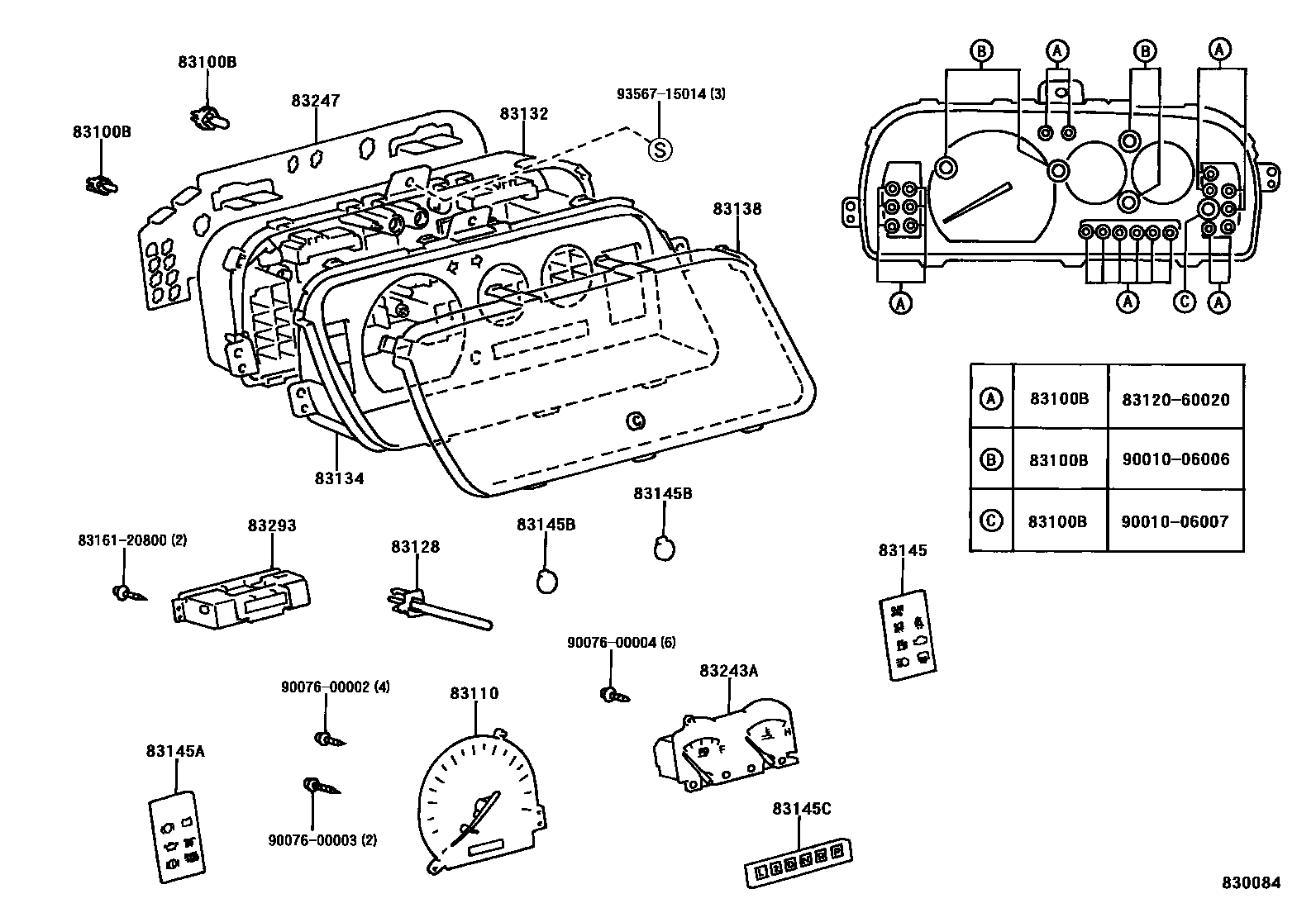

0001 1 0002 1 0003 1W(TACHOMETER) 0004 1W(TACHOMETER) 0005 1

83100BBULB, COMBINATION METER, NO.1

main83120-60020iCR41,KR4#,SR40199611-199812

12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION

main90010-06006iCR41,KR4#,SR40199611-199812

12V3.4W,W(GREEN CAP),TYPE B:REFER TO ILLUSTRATION

main90010-06007iCR41,KR4#,SR40199611-199812

12V 3.4W,W(SOCKET),TYPE C:REFER TO ILLUSTRATION

main90010-06028iCR41,KR42,SR40199812-200310

12V 1.12W,W(SOCKET)

main90010-06034iCR41,KR42,SR40199812-200310

14V3.0W,W(GREEN CAP)

83110SPEEDOMETER ASSY

main83220-28070iSR40199611-199812

main83220-28080iSR40..GEN199611-199812

KM/MPH

main83220-28100iCR41,KR4#199611-199812

main83220-28110iCR41,KR4#..GEN199611-199812

KM/MPH

main83220-28150iCR4#,KR42199812-200412

main83220-28160iKR42..GEN199812-200310

MILE/H+KM/H

main83221-28600iSR40199812-200111

main83221-28680iSR40..ATM..GEN199812-200111

MILE/H+KM/H

83128KNOB, TRIP COUNTER

main83224-28080iSR40199611-199812

main83224-28150iCR41,KR4#199611-199812

main83224-28410iSR40199812-200111

main83224-28530iCR4#,KR42199812-200412

83132CASE, COMBINATION METER

main83841-28080iSR40199611-199812

main83841-28150iCR41,KR4#199611-199812

main83841-28410iSR40..ATM..GEN199812-200111

main83841-28550iKR42..GEN199812-200310

main83841-28580iCR4#199812-200412

main83841-28600iSR40..ATM..ARL199812-200111

main83841-28610iSR40..MTM..ARL199812-200111

main83841-28620iKR42..ATM199812-200310

main83841-28630iKR42..MTM..ARL199812-200310

main83841-28690iSR40..MTM..GEN199812-200111

83134COVER, COMBINATION METER, NO.1

main83821-28410iSR40199812-200111

main83821-28530iKR42..ATM199812-200310

main83821-28550iCR4#,KR42..MTM199812-200412

main83851-28080iSR40..ATM199611-199812

main83851-28090iSR40..MTM199611-199812

main83851-28150iCR41,KR4#..MTM199611-199812

main83851-28160iKR42..ATM199611-199812

83138GLASS, SPEEDOMETER

main83852-28080iSR40199611-199812

main83852-28150iCR41,KR4#199611-199812

main83852-28410iCR4#,KR42,SR40199812-200412

83145LENS, METER, NO.1

main83831-28060iSR40199611-199812

main83831-28150iCR41,KR4#199611-199812

83145ALENS, METER, NO.2

main83831-28130iKR42..ARL199611-199801

main83831-28200iSR40..ARL199710-199812

main83831-28220iKR42..ARL199801-199812

main83831-28240iKR4#..GEN199611-199812

main83832-28080iSR40..GEN199611-199812

main83832-28150iCR41199611-199812

83145BLENS, METER, NO.3

main83833-26010×2iCR41,KR4#,SR40199611-199812

83145CLENS, METER, NO.4

main83831-28160iKR42..ATM199611-199812

main83833-28080iSR40..ATM199611-199812

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83882-28150iCR41,KR4#199611-199812

main83882-28200iSR40199611-199812

main83882-28410iSR40199812-200111

main83882-28530iCR41,KR42199812-200310

83247PLATE, METER CIRCUIT

main83861-28150iCR41,KR4#..GEN199611-199801

main83861-28201iSR40..ATM..ARL199710-199812

main83861-28211iSR40..MTM..ARL199710-199812

main83861-28220iKR42..ATM199611-199801

main83861-28221iKR42..ATM199801-199812

main83861-28230iKR42..MTM..ARL199611-199801

main83861-28231iKR42..MTM..ARL199801-199812

main83861-28241iCR41,KR4#..GEN199801-199812

main83861-28280iSR40..ATM..GEN199611-199801

main83861-28281iSR40..ATM..GEN199801-199812

main83861-28300iSR40..MTM..GEN199611-199801

main83861-28301iSR40..MTM..GEN199801-199812

83293COMPUTER, TOTAL COUNTER MODULE

main83293-28030iSR40..GEN199611-199801

main83293-28031iSR40..ARL199710-199801

main83293-28040iSR40..GEN199611-199801

KM/MPH

main83293-28041iSR40..GEN199801-199812

KM/MPH

main83293-28060iCR41,KR4#199611-199812

main83293-28070iCR41,KR4#..GEN199611-199812

KM/MPH

main83293-28100iSR40199812-200111

main83293-28110iSR40..ATM..GEN199812-200111

MILE/H+KM/H

main83293-28130iCR4#,KR42199812-200412

main83293-28140iKR42..GEN199812-200310

MILE/H+KM/H

8316120800CASE, COMBINATION METER MIRROR, NO.1

main83161-20800

9007600002

main90076-00002

9007600003

main90076-00003

9007600004

main90076-00004

9356715014

main93567-15014

18 parts on this diagram · 5 diagrams in section
