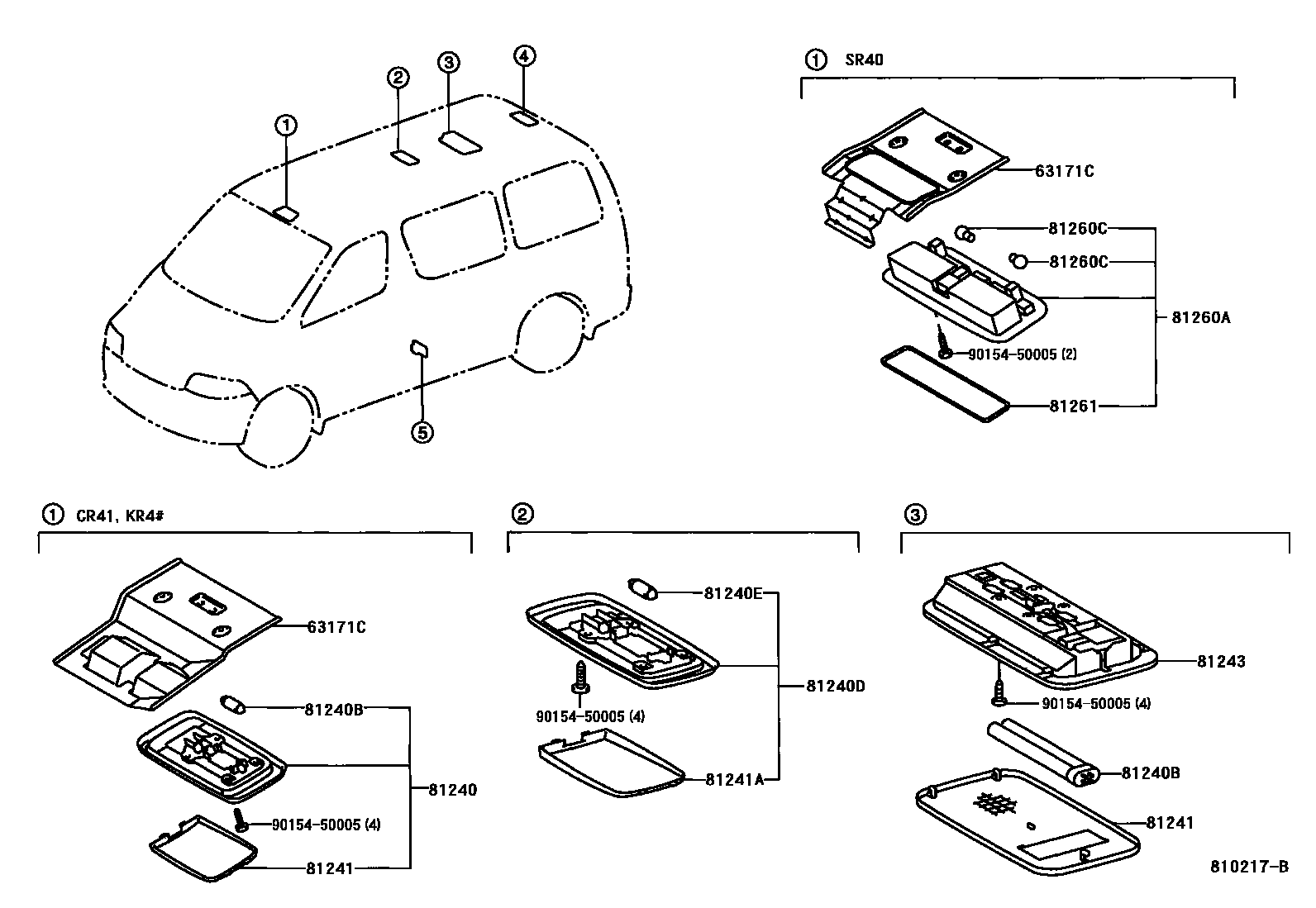

INTERIOR LAMP

0001 1 0002 1

63171CBRACKET, ROOM LAMP

main63171-28010iSR40199812-200111

main63171-28040iCR42199812-200412

81240LAMP ASSY, ROOM, NO.1

main81240-12060-B2iCR41,KR4#199611-199812

MOON MIST,TRIM1#

main81240-12060-P1iCR41199812-200112

LT.GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-11052iSR40199812-200111

100V 13W

main90981-14011×2iCR41199812-200112

12V 8W

81240DLAMP ASSY, ROOM, NO.2

main81240-12060-B2iCR41,KR4#199611-199812

MOON MIST,TRIM1#

main81240-12060-P1iCR41199812-200112

LT.GRAY,TRIM1#

81240EBULB, ROOM LAMP, NO.2

main90981-14011×2iCR42199812-200412

12V 8W

81241LENS, ROOM LAMP, NO.1

main81241-12020iCR41,KR4#199611-199812

main81241-28010iSR40199611-199812

81241ALENS, ROOM LAMP, NO.2

main81241-12020×2iCR41199812-200112

81243BODY, ROOM LAMP, NO.1

main81243-28040-B0iSR40199611-199812

MOON MIST,TRIM1#

main81243-28040-B1iSR40199812-200111

LT.GRAY,TRIM1#

81260ALAMP ASSY, MAP

main81260-14080-B4iSR40199611-199812

MOON MIST,TRIM1#

main81260-14080-B5iSR40199812-200111

LT.GRAY,TRIM1#

81260CBULB(FOR MAP LAMP)

main90981-12005×2iSR40199611-199812

12V 8W

81261LENS AND COVER, MAP LAMP

main81261-14080iSR40199611-199812

9015450005

main90154-50005

12 parts on this diagram · 2 diagrams in section
