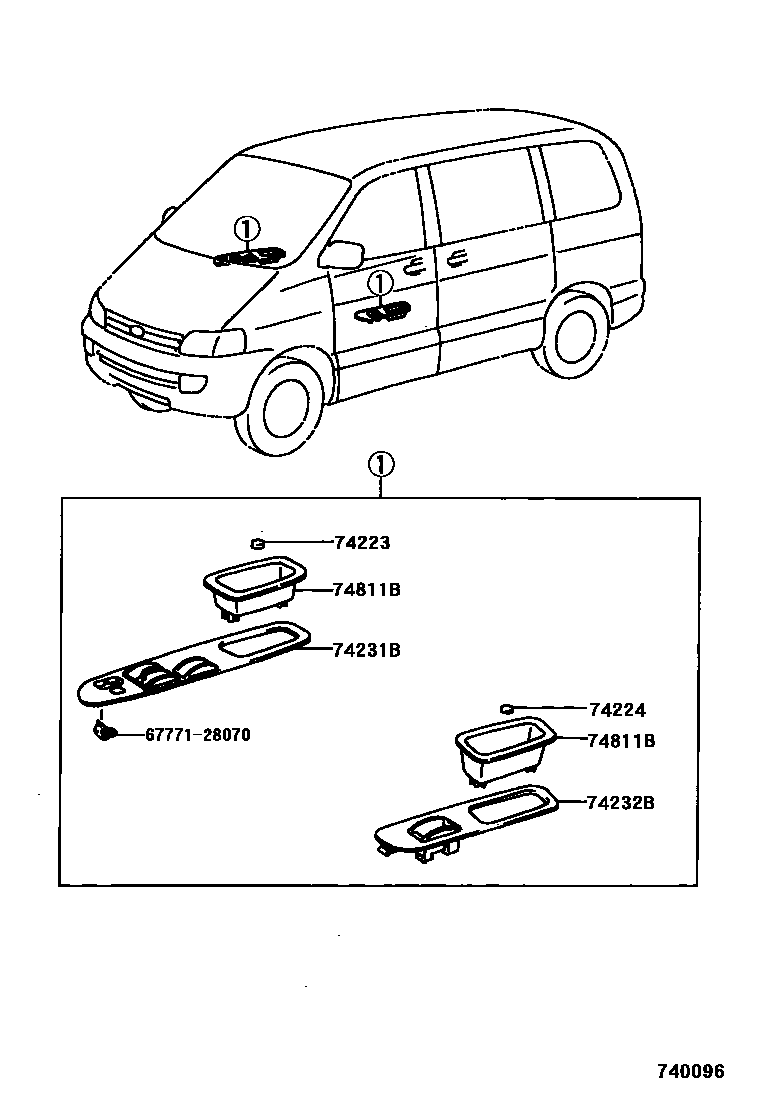

ARMREST & VISOR

0001 1ARMREST 0002 1VISOR

74223CAP, DOOR ARMREST, RH

main74223-28010-B0iSR40199801-199812

MD.MOON MIST,TRIM1#

main74223-28010-C0iCR41..06S199611-199812

BLACK,TRIM10

74224CAP, DOOR ARMREST, LH

main74223-28010-B0iSR40199801-199812

MD.MOON MIST,TRIM1#

main74223-28010-C0iCR41..06S199611-199812

BLACK,TRIM10

74231BPANEL, DOOR ARMREST BASE, RH

main74231-28070-B0iSR40..GEN199611-199801

MD.MOON MIST,TRIM1#

main74231-28110iSR40..GEN199801-199812

WOOD GRAIN

main74231-28130-B0iSR40..ARL199710-199801

MD. MOON MIST,TRIM1#

main74231-28320iSR40..GEN199812-200111

WOOD GRAIN

74232BPANEL, DOOR ARMREST BASE, LH

main74232-28030-B0iSR40199611-199812

MD.MOON MIST,TRIM1#

main74232-28040-B0iSR40..GEN199801-199812

HONG KONG SPEC,MD.MOON MIST,TRIM1#

main74232-28190iSR40..GEN199812-200111

WOOD GRAIN

74811BHANDLE, DOOR PULL

main74811-12040-B1×2iCR41,KR4#199611-199812

MD.MOON MIST,TRIM1#

6777128070WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-28070

6 parts on this diagram · 2 diagrams in section
