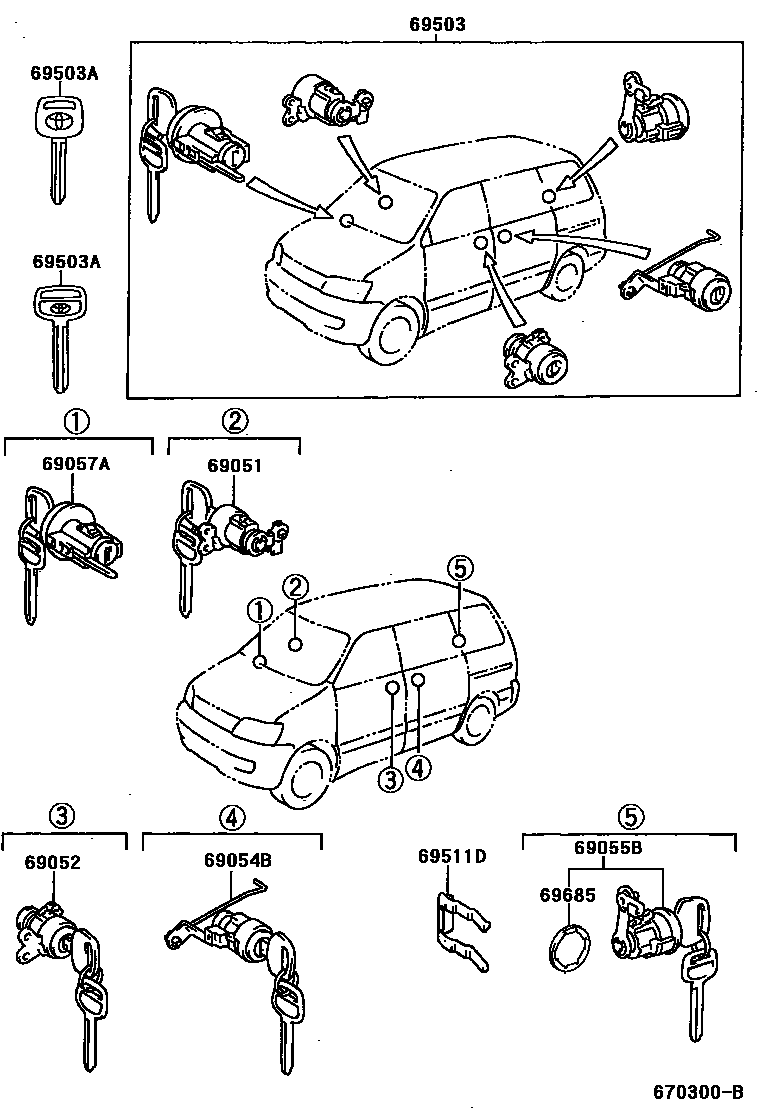

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-28110iCR41,KR4#,SR40..GEN199611-199812

main69051-28130iKR42,SR40..ARL199611-199812

main69051-28190iCR4#,KR42,SR40..GEN199812-200301

main69051-28280iKR42..ARL200301-200308

main69051-28290iCR42,KR42..GEN200301-200308

main69051-28300iCR42,KR42200308-200412

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-28100iCR41,KR4#,SR40..GEN199611-199812

main69052-28120iKR42,SR40..ARL199611-199812

main69052-28180iCR4#,KR42,SR40..GEN199812-200301

main69052-28270iKR42..ARL200301-200308

main69052-28280iCR42,KR42..GEN200301-200308

main69052-28290iCR42,KR42200308-200412

69054BCYLINDER & KEY SET, SLIDE DOOR LOCK, LH

main69054-28110iCR41,KR4#,SR40..GEN199611-199812

main69054-28130iKR42,SR40..ARL199611-199812

main69054-28180iCR4#,KR42,SR40..GEN199812-200308

main69054-28210iCR42,KR42200308-200412

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-28120iCR41,KR4#,SR40..GEN199611-199812

main69055-28140iKR42,SR40..ARL199611-199812

main69055-28200iCR4#,KR42,SR40..GEN199812-200308

main69055-28250iCR42,KR42200308-200412

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-28090iSR40..ARL199710-199812

main69057-28100iKR42..ARL199611-199812

main69057-28110iCR41,KR4#,SR40..GEN199611-199812

main69057-28180iKR42..ARL199812-200308

main69057-28240iCR4#,KR42,SR40..GEN199812-200308

main69057-28350iCR42,KR42200308-200412

69503CYLINDER SET, LOCK

main69005-28370iKR42..ARL199611-199812

main69005-28380iCR41,KR4#,SR40..4D..GEN199611-199812

main69005-28390iKR4#..5D199611-199812

main69005-28590iSR40..GEN199812-200111

main69005-28600iCR42,KR42..5D199812-200301

main69005-28660iKR42..ARL199812-200301

main69005-28850iCR42,KR42..4D..GEN200301-200308

main69005-28860iCR42,KR42..5D200301-200308

main69005-28870iKR42..ARL200301-200308

main69005-28A10iKR42..4D..GEN200308-200310

main69005-28A30iCR42..5D200308-200412

69503AKEY, BLANK

main90999-00185iCR41,KR4#;SR40..GEN199611-199812

MASTER KEY,W(*68)

main90999-00186iCR41,KR4#;SR40..GEN199611-199812

MASTER KEY

69511DRETAINER, BACK DOOR LOCK CYLINDER

main69512-87001iCR4#,KR42,SR40199812-200412

69685PAD, LOCK CYLINDER

main69513-32010iKR42200308-200310

main69513-87001iCR41,KR4#,SR40199611-199812

9 parts on this diagram · 2 diagrams in section
