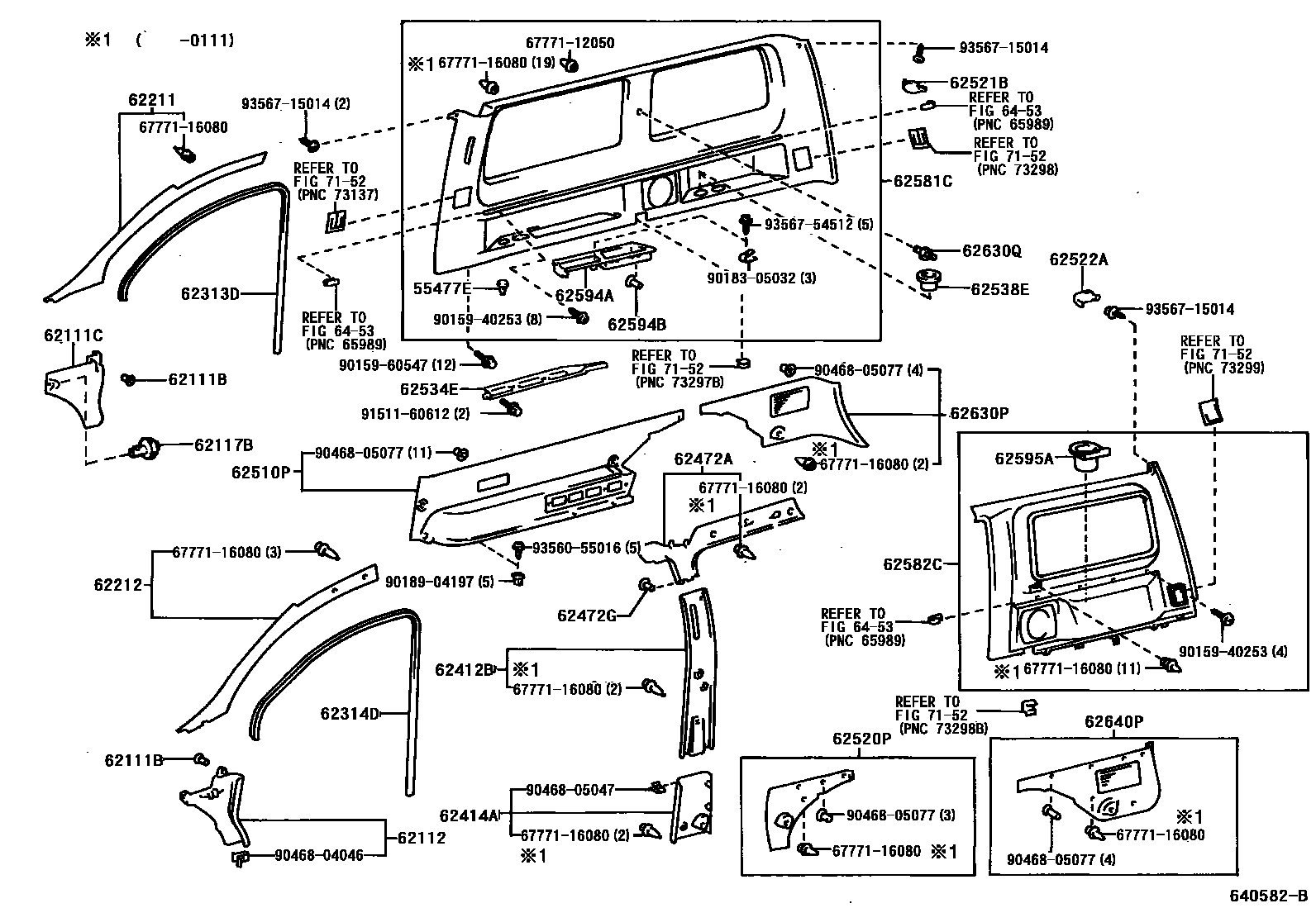

INSIDE TRIM BOARD

0001 1 0002 1

55477EBEZEL, CIGARETTE LIGHTER HOLE

main55477-28030iSR40199812-200111

62111BCLIP(FOR COWL SIDE TRIM)

main90467-05031-01×2iCR41199812-200112

BLACK,TRIM1#

62111CBOARD, COWL SIDE TRIM, RH

main62111-28060-B0iCR41,KR4#,SR40199611-199812

MD.MOON MIST,TRIM1#

62112BOARD, COWL SIDE TRIM, LH

main62112-28050-B0iCR42199812-200412

MD.MOON MIST,TRIM1#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06189-B0iCR41199812-200112

BLUISH GRAY,TRIM1#

62211GARNISH, FRONT PILLAR, RH

main62211-28210-B0iSR40199611-199812

MOON MIST,TRIM1#

main62211-28220-B0iCR41,KR4#199611-199812

MOON MIST,TRIM1#

main62211-28330-B0iSR40199812-200111

MOON MIST,TRIM1#

main62211-28350-B0iKR42199812-200310

MOON MIST,TRIM1#

62212GARNISH, FRONT PILLAR, LH

main62212-28100-B0iSR40199611-199812

MOON MIST,TRIM1#

main62212-28110-B0iCR41,KR4#199611-199812

MOON MIST,TRIM1#

main62212-28140-B0iSR40199812-200111

MOON MIST,TRIM1#

62313DTRIM, FRONT DOOR OPENING, RH

main62311-28080-B0iSR40199812-200111

MOON MIST,TRIM1#

main62313-28060-B0iSR40199611-199812

MOON MIST,TRIM1#

main62313-28070-B0iKR42199812-200310

MOON MIST,TRIM1#

62314DTRIM, FRONT DOOR OPENING, LH

main62312-28080-B0iSR40199812-200111

MOON MIST,TRIM1#

main62314-28010-B0iSR40199611-199812

MOON MIST,TRIM1#

main62314-28020-B0iKR42199812-200310

MOON MIST,TRIM1#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-28210-B0iSR40199611-199812

MOON MIST,TRIM1#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-28060-B0iSR40199611-199812

MD.MOON MIST,TRIM1#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-28130-B0iSR40199611-199812

MOON MIST,TRIM1#

62472GCLIP (FOR ROOF SIDE GARNISH)

main90467-05063-B3iSR40199611-199812

BLUISH GRAY,TRIM1#

62510PPANEL ASSY, QUARTER TRIM, FRONT RH

main62510-28190-B0iSR40..GEN199611-199801

MD.MOON MIST,TRIM1#

main62510-28200-B0iCR41..06S199812-200112

W(REAR SEAT),MD.MOON MIST,TRIM1#

main62510-28230-B0iCR41..06S199812-200112

W(REAR SEAT & REAR SEAT BELT),MD.MOON MIST,TRIM1#

main62510-28250iCR41,KR4#..4D199611-199812

main62510-28250-E0iCR42..4D200008-200412

MD.DAK,TRIM1#

62520PPANEL ASSY, QUARTER TRIM, FRONT LH

main62520-28350iSR40..GEN199710-199801

main62520-28350-B0iSR40199611-199710

MD.MOON MIST,TRIM1#

62521BCOVER, QUARTER TRIM, RH

main62521-28030iSR40..GEN199710-199801

main62521-28030-B0iSR40199801-199812

MOON MIST,TRIM1#

62522ACOVER, QUARTER TRIM, LH

main62522-28010iSR40..GEN199710-199801

main62522-28010-B0iSR40199812-200111

MOON MIST,TRIM1#

62534EBRACKET, SIDE TRIM, NO.2

main62534-28100iSR40..GEN199611-199801

62538ECOVER, QUARTER TRIM, HOLE

main55548-42010×2iSR40..GEN199710-199801

main55548-42010-B1×2iSR40199611-199710

MD.MOON MIST,TRIM1#

62581CGARNISH, REAR WINDOW SIDE, RH

main62550-28020iSR40..GEN199710-199801

main62550-28020-B1iSR40199611-199710

MOON MIST,TRIM1#

main62550-28060-B3iSR40199801-199812

MOON MIST,TRIM1#

62582CGARNISH, REAR WINDOW SIDE, LH

main62560-28030iSR40..GEN199710-199801

main62560-28030-B4iSR40199611-199710

MOON MIST,TRIM1#

main62560-28110-B1iSR40199801-199812

MOON MIST,TRIM1#

62594APOCKET, QUARTER TRIM, NO.1

main62594-28040iSR40..GEN199710-199801

main62594-28040-B0iSR40199611-199710

MD.MOON MIST,TRIM1#

62594BCLIP(FOR QUARTER TRIM POCKET)

main90467-05063-B3×2iSR40..GEN199611-199801

BLUISH GRAY,TRIM1#

62595APOCKET, QUARTER TRIM, NO.2

main62595-28050-B0iSR40199812-200111

MD.MOON MIST,TRIM1#

62630PPANEL ASSY, QUARTER TRIM, REAR RH

main62630-2J880iSR40..GEN199710-199801

main62630-2J880-B0iSR40199812-200111

MD.MOON MIST,TRIM1#

main62630-2R050iCR41..06S199812-200112

W(REAR SEAT BELT)

main62630-2R060iKR42..4D199812-200310

main62630-2R060-E0iCR42..4D200008-200412

MD.DAK,TRIM1#

main62630-2R080iKR4#..5D199611-199812

main62630-2R080-E0iCR42..5D200008-200412

MD.OAK,TRIM1#

main62630-2R180iKR42..5D..06S199812-200208

W(REAR SEAT BELT)

62630QCLIP (FOR QUARTER TRIM)

main90467-07124-B0iSR40199801-199812

MOON MIST,TRIM1#

62640PPANEL ASSY, QUARTER TRIM, REAR LH

main62640-28870iSR40..GEN199710-199801

main62640-28870-B0iSR40199812-200111

MD.MOON MIST,TRIM1#

main62640-2J030iCR41,KR41..06S199611-199812

W(REAR SEAT BELT)

main62640-2J040iCR41199812-200112

main62640-2J040-E0iCR42200008-200412

MD.DAK,TRIM1#

6453ROOM CURTAIN & ROOM RACK

→ Go to FIG 64-53

7152SEAT BELT

→ Go to FIG 71-52

6777112050WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12050

6777116080WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-16080

9015940253

main90159-40253

9015960547

main90159-60547

9018305032

main90183-05032

9018904197

main90189-04197

9046804046

main90468-04046

9046805047

main90468-05047

9046805077

main90468-05077

9151160612

main91511-60612

9356055016

main93560-55016

9356715014

main93567-15014

9356754512

main93567-54512

42 parts on this diagram · 2 diagrams in section
