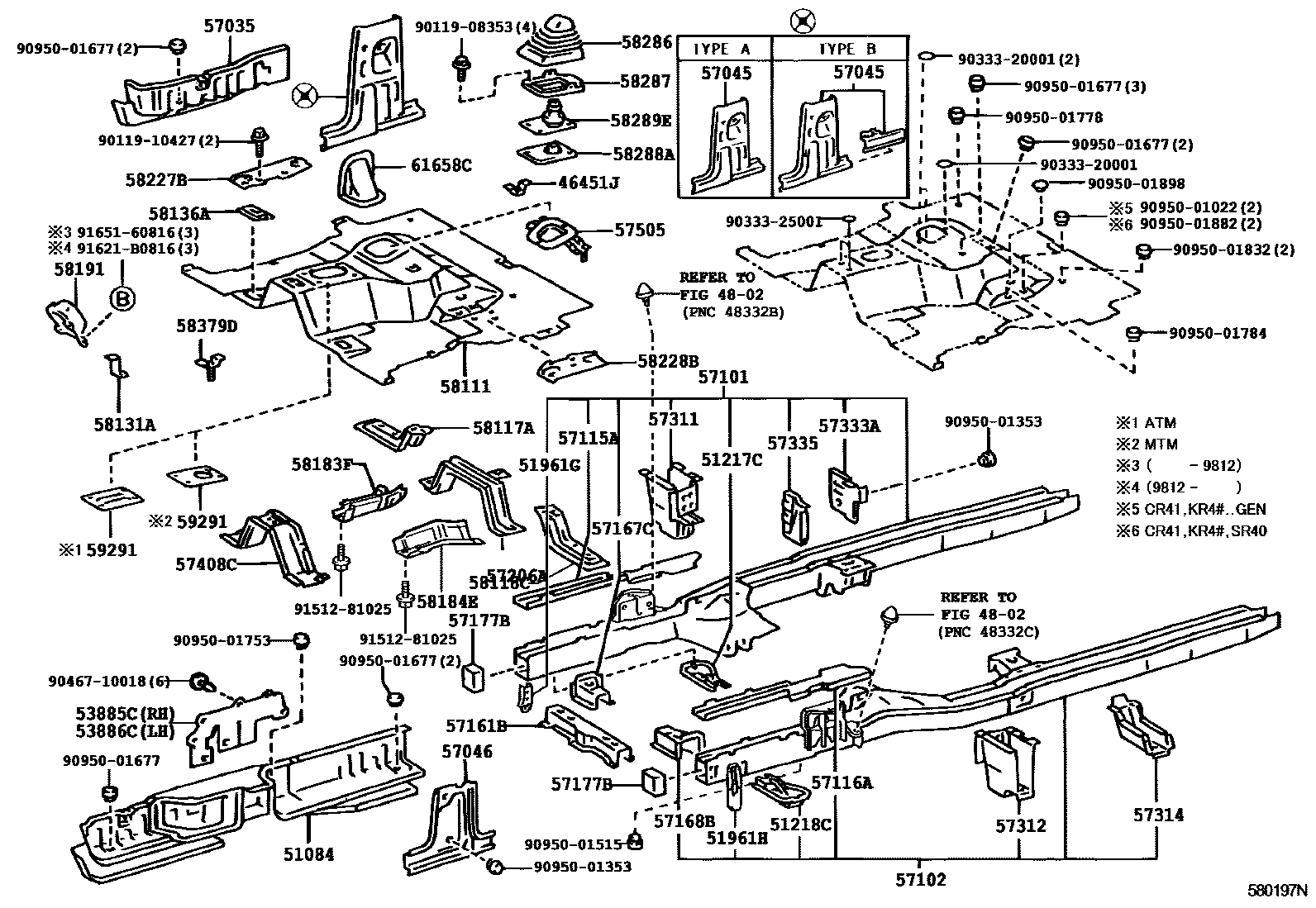

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

46451JBRACKET, PARKING BRAKE CABLE SUPPORT

main46451-28060iCR41,KR4#,SR40199611-200412

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

51084STEP SUB-ASSY, LH

main51084-28040iCR4#,SR40..GEN199611-200412

main51084-28060iCR41,KR4#,SR40199611-200412

ROUGH ROAD PACKAGE

51217CREINFORCEMENT, FRONT SUSPENSION MENBER, RH

main51217-28020iCR41,KR4#,SR40199611-199812

main51217-28030iKR42199812-200412

51218CREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51218-28030iCR41,KR4#,SR40199611-199812

main51218-28040iSR40199812-200412

51961GHOOK, FRONT RH

main51970-28030iCR41,KR4#,SR40199611-200412

51961HHOOK, FRONT LH

main51980-28040iCR41199611-200412

53885CSEAL, FENDER APRON MUDGUARD, RH

main53885-28010iSR40199611-200412

53886CSEAL, FENDER APRON MUDGUARD, LH

main53886-28050iSR40199611-200412

57035PANEL SUB-ASSY, FRONT STEP, RH

main57035-28010iSR40199611-200111

main57035-28020iCR41,KR4#199611-200412

57045PLATE SUB-ASSY, FLOOR SIDE RAIL, RH

main57045-28120iSR40199611-200111

main57045-28130iCR42,KR42..5D199611-200412

TYPE A:REFER TO ILLUSTRATION

main57045-28140iCR41,KR4#..4D199611-200412

TYPE A:REFER TO ILLUSTRATION

main57045-28150iCR42..5D199812-200412

TYPE B:REFER TO ILLUSTRATION

main57045-28150iKR4#..5D199611-199812

ROUGH ROAD PACKAGE

57046PLATE SUB-ASSY, FLOOR SIDE RAIL, LH

main57422-28070iCR41,KR4#,SR40..GEN199611-200412

main57422-28080iCR41,KR42,SR40199611-200412

ROUGH ROAD PACKAGE

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-28630iCR41,KR42,SR40199611-200412

ROUGH ROAD PACKAGE

main57101-28750iCR4#,KR42,SR40..GEN199812-200412

main57101-28800iCR41,SR40199611-199812

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-28390iKR4#199611-199812

main57102-28400iKR42,SR40..GEN199812-200309

main57102-28450iCR41199812-200112

ROUGH ROAD PACKAGE

main57102-28460iCR4#199812-200412

main57102-28520iCR42199812-200310

ROUGH ROAD PACKAGE

main57102-28580iSR40..GEN199611-199812

ROUGH ROAD PACKAGE

main57102-28580iSR40..ARL199710-199812

main57102-28610iCR41199611-199812

main57102-28640iSR40..GEN199611-199812

main57102-28650iCR41199611-199812

ROUGH ROAD PACKAGE

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-28050iSR40199611-200412

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-28040iSR40199611-200412

57161BMEMBER, FRONT CROSS, FRONT

main57104-28100iKR42..GEN199812-200412

main57161-28040iCR41,KR4#,SR40199611-199812

57167CGUSSET, FRONT CROSSMEMBER SIDE, RH

main57167-28010iKR42199611-200412

57168BGUSSET, FRONT CROSSMEMBER SIDE, LH

main57168-28010iCR41,KR4#,SR40199611-200412

57177BSEAL, FRONT SIDE MEMBER, RH

main57177-28010iKR42,SR40..03S,08S199611-200310

57206AMEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2

main57206-28020iCR41199611-200412

W(FRONT SUB SEAT)

main57452-28010iCR41199611-200412

57311OUTRIGGER, NO.1 RH

main57301-28110iCR41,KR4#,SR40199611-199812

main57301-28120iSR40199812-200412

57312OUTRIGGER, NO.1 LH

main57302-28080iCR41,KR4#,SR40199611-199812

main57302-28090iSR40199812-200412

57314OUTRIGGER, NO.2 LH

main57314-28020iCR41,KR4#,SR40199611-200412

57333AOUTRIGGER, NO.2 REAR RH

main57333-28020iCR41,KR4#,SR40199611-200412

57335OUTRIGGER, NO.2 FRONT RH

main57335-28020iSR40199611-200412

57408CMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57408-28020iSR40..MTM199611-199710

W(*80)

main57408-28030iSR40199710-200310

W(*80)

main57451-28020iCR4#,KR42,SR40..GEN199611-200412

57505BRACKET SUB-ASSY, PARKING BRAKE, NO.1

main57505-28010iCR4#,KR42,SR40199611-200412

58111PAN, FRONT FLOOR

main58111-28430iSR40199611-199801

main58111-28431iSR40199801-200111

main58111-28630iCR41,KR4#..4D199611-199801

main58111-28631iCR41,KR4#..4D199801-200412

main58111-28640iKR4#..5D199611-199801

main58111-28641iCR42,KR42..5D199801-200412

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58102-28020iKR42,SR40..03S,06S,08S200007-200412

main58117-28020iCR41,KR4#,SR40199611-200007

58118CREINFORCEMENT, FRONT FLOOR SIDE, LH

main58103-28030iCR4#;KR42..ARL200007-200412

main58118-28040iSR40;CR41,KR4#..CBR,DSL199611-200007

58131ABRACKET, FRONT FLOOR HEAT INSULATOR, NO.1

main58131-28020iKR42,SR40199611-200310

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-28020iCR41,KR4#,SR40199611-200412

58183FREINFORCEMENT, REAR MOUNTING, RH

main58183-28040iCR41,KR4#,SR40199611-200412

58184EREINFORCEMENT, REAR MOUNTING, LH

main58184-28030iCR41,KR4#,SR40199611-200412

58191FOOTREST, FRONT FLOOR

main58191-28020iKR42,SR40..ATM199611-199812

main58191-28030iKR42,SR40..ATM199812-200208

main58191-28050iKR42..ATM200208-200310

58227BPLATE, FRONT FLOOR PANEL SIDE, RH

main58227-28050iCR41,KR4#,SR40199611-200412

58228BPLATE, FRONT FLOOR PANEL SIDE, LH

main58228-28030iCR4#,KR42,SR40199611-200412

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58286-28010-B0iCR41,KR4#,SR40..MTM199611-200412

MD.MOON MIST,TRIM1#

main58286-28020-B0iCR41,KR4#..GEN199611-200412

W(FRONT SUB SEAT),MD.MOON MIST,TRIM1#

58287RETAINER, SHIFT LEVER BOOT

main58287-28030iCR41,KR4#,SR40..MTM199611-200412

58288ASEAL, SHIFT LEVER BOOT

main58288-28010iCR41,KR4#,SR40..MTM199611-200412

58289EBOOT, SHIFT LEVER, NO.2

main58289-28010iCR41,KR4#,SR40..MTM199611-200412

58379DBRACKET, HEATER HOSE CLAMP

main58379-28020iCR4#,SR40199611-200412

59291RETAINER, FLOOR SHIFT LEVER BASE

main59291-28010iCR41,KR4#,SR40..MTM199611-200412

main59291-28020iKR42,SR40..ATM199611-200310

61658CCOVER, FUEL INLET PIPE

main61658-28010iCR41,KR4#,SR40199611-199801

main61658-28011iCR41,KR4#,SR40199801-200412

9011908353

main90119-08353

9011910427

main90119-10427

9033320001

main90333-20001

9033325001

main90333-25001

9046710018

main90467-10018

9095001022

main90950-01022

9095001353

main90950-01353

9095001515

main90950-01515

9095001677

main90950-01677

9095001753

main90950-01753

9095001778

main90950-01778

9095001784

main90950-01784

9095001832

main90950-01832

9095001882

main90950-01882

9095001898

main90950-01898

9151281025

main91512-81025

91621B0816

main91621-B0816

9165160816

main91651-60816

63 parts on this diagram · 1 diagram in section
