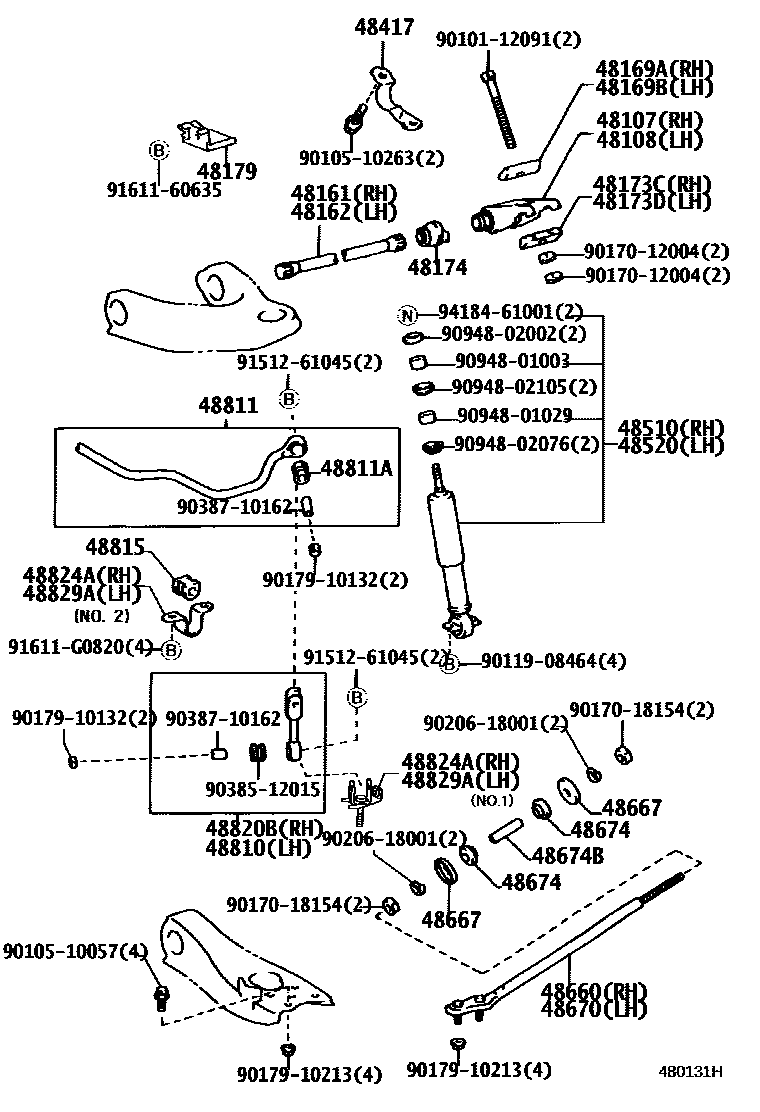

FRONT SPRING & SHOCK ABSORBER
48107ARM SUB-ASSY, ANCHOR, RH
48108ARM SUB-ASSY, ANCHOR, LH
48161SPRING, TORSION BAR, RH
48162SPRING, TORSION BAR, LH
48169ASWIVEL, ANCHOR ARM, RH
48169BSWIVEL, ANCHOR ARM, LH
48173CSEAT, ANCHOR ARM ADJUSTER, RH
48173DSEAT, ANCHOR ARM ADJUSTER, LH
48174COVER, TORSION BAR DUST
48179PROTECTOR, TORSION BAR DUST COVER, LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48500-28250
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48500-28250
48660BAR ASSY, STRUT, RH
48667RETAINER, STRUT BAR
48670BAR ASSY, STRUT, LH
48674CUSHION, STRUT BAR
48674BCOLLAR(FOR STRUT BAR CUSHION)
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48811ABUSH(FOR FRONT STABILIZER BAR)
48815BUSH, FRONT STABILIZER BAR, NO.1
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
NO.1
NO.1
NO.2
48829ABRACKET, FRONT STABILIZER, NO.1 LH
NO.2
NO.1
NO.1
9010112091
main90101-12091
9010510057
main90105-10057
9010510263
main90105-10263
9011908464
main90119-08464
9017012004
main90170-12004
9017018154
main90170-18154
9017910132
main90179-10132
9017910213
main90179-10213
9020618001
main90206-18001
9038512015
main90385-12015
9038710162
main90387-10162
9094801003
main90948-01003
9094801029
main90948-01029
9094802002
main90948-02002
9094802076
main90948-02076
9094802105
main90948-02105
9151261045
main91512-61045
9161160635
main91611-60635
91611G0820
main91611-G0820
9418461001
main94184-61001
45 parts on this diagram · 1 diagram in section
