FRONT AXLE ARM & STEERING KNUCKLE

04485ASHAFT KIT, FRONT SUSPENSION UPPER ARM, RH

main04485-28050iCR41,KR4#,SR40199611-199812

04485BSHAFT KIT, FRONT SUSPENSION UPPER ARM, LH

main04485-28050iCR41,KR4#,SR40199611-199812

43211KNUCKLE, STEERING, RH

main43211-28021iCR42199812-200412

main43211-28070iKR42..ARL199812-200310

W(ABS)

43212KNUCKLE, STEERING, LH

main43211-28021iCR42199812-200412

main43212-28050iSR40199812-200111

W(ABS)

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-29175iCR41199812-200111

sub43330-29545

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-29175iCR42,KR42,SR40199812-200412

sub43330-29545

43350JOINT ASSY, FRONT UPPER BALL, RH

main43350-29076iCR41,KR4#,SR40199611-199812

43360JOINT ASSY, FRONT UPPER BALL, LH

main43350-29076iCR41,KR4#,SR40199611-199812

45619ACOVER, STEERING KNUCKLE STOPPER, RH

main45619-14020iCR41,KR4#,SR40199611-199812

45619BCOVER, STEERING KNUCKLE STOPPER, LH

main45619-14020iCR41,KR4#,SR40199611-199812

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-28070iCR41,KR4#,SR40199611-199812

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-28070iCR41,KR4#,SR40199611-199812

48167BTUBE(FOR TORQUE ARM SETTING BOLT)

main90440-17029×2iCR41,KR4#,SR40199611-199812

48167CARM, FRONT SUSPENSION TORQUE, RH

main48106-27040iCR41,KR4#,SR40199611-199812

48167DARM, FRONT SUSPENSION TORQUE, LH

main48106-27040iCR41,KR4#,SR40199611-199812

48190CAM ASSY, CAMBER ADJUST

main48190-27020×2iCR41,KR4#,SR40199611-199812

48198CAM, CAMBER ADJUST, NO.2

main48198-27010×2iCR41,KR4#,SR40199611-199812

48331ABUMPER, FRONT SPRING, NO.1

main48331-27051×2iCR41,KR4#,SR40199611-199812

48332BBUMPER, FRONT SPRING, NO.2 RH

main48332-35020iCR41,KR4#,SR40199611-199812

48332CBUMPER, FRONT SPRING, NO.2 LH

main48332-35020iCR41,KR4#,SR40199611-199812

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-28030iCR41,KR4#,SR40199611-199812

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48630-28030iCR41,KR4#,SR40199611-199812

48632ABUSH, FRONT SUSPENSION UPPER ARM, RH

main48632-28050iCR41,KR4#,SR40199611-199812

FRONT

main48635-28060iCR41199812-200112

REAR

48632BBUSH, FRONT SUSPENSION UPPER ARM, LH

main48632-28050iCR41199812-200112

FRONT

main48635-28060iKR42199812-200310

REAR

48654EBUSH, FRONT LOWER ARM, NO.1 RH

main48061-27011iCR41,KR4#,SR40199611-199812

48654FBUSH, FRONT LOWER ARM, NO.1 LH

main48061-27011iCR41,KR4#,SR40199611-199812

5851

9010110177

main90101-10177

9010112010

main90101-12010

9010112030

main90101-12030

9010112090

main90101-12090

9010114019

main90101-14019

9010212001

main90102-12001

9010610032

main90106-10032

9011908835

main90119-08835

9017008036

main90170-08036

9017010082

main90170-10082

9017112028

main90171-12028

9017114002

main90171-14002

9017114042

main90171-14042

9017116006

main90171-16006

9017116050

main90171-16050

9017908125

main90179-08125

9017908204

main90179-08204

9017914046

main90179-14046

9020108016

main90201-08016

9020112007

main90201-12007

9020112056

main90201-12056

9020114005

main90201-14005

9025203006

main90252-03006

9056014023

main90560-14023

9056016019

main90560-16019

9414201202

main94142-01202

9453101000

main94531-01000

9453101400

main94531-01400

9453101600

main94531-01600

9538103020

main95381-03020

9538103030

main95381-03030

9538103035

main95381-03035

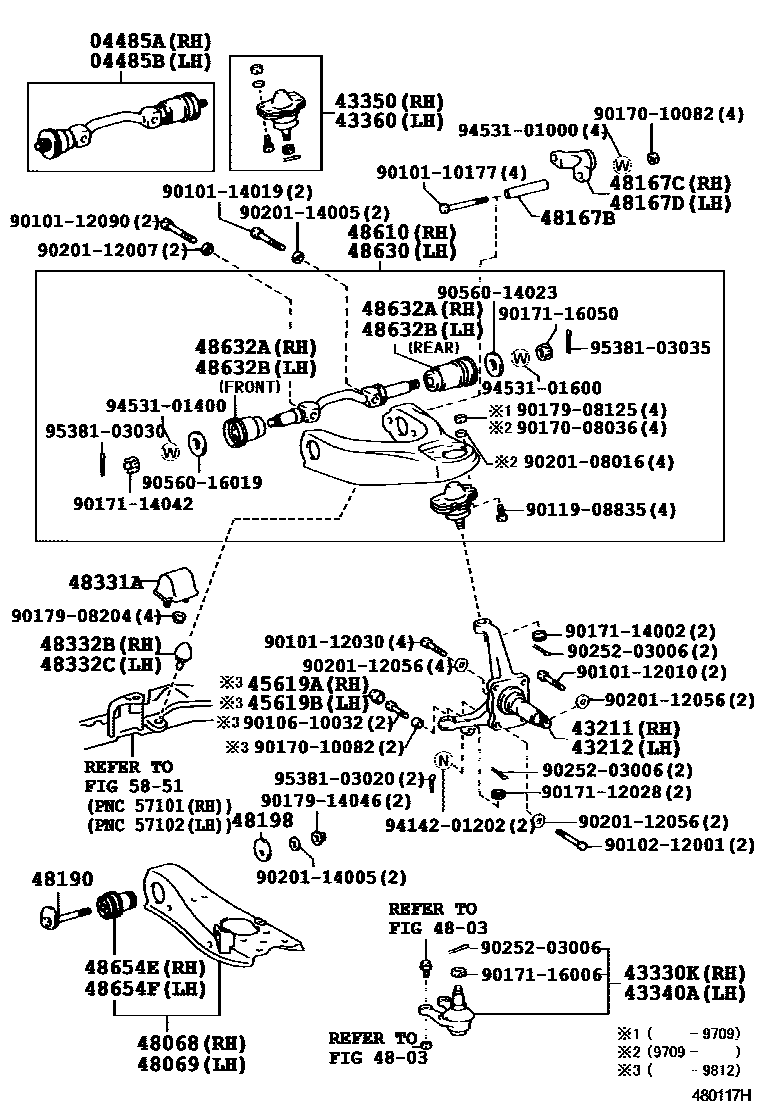

60 parts on this diagram · 1 diagram in section
