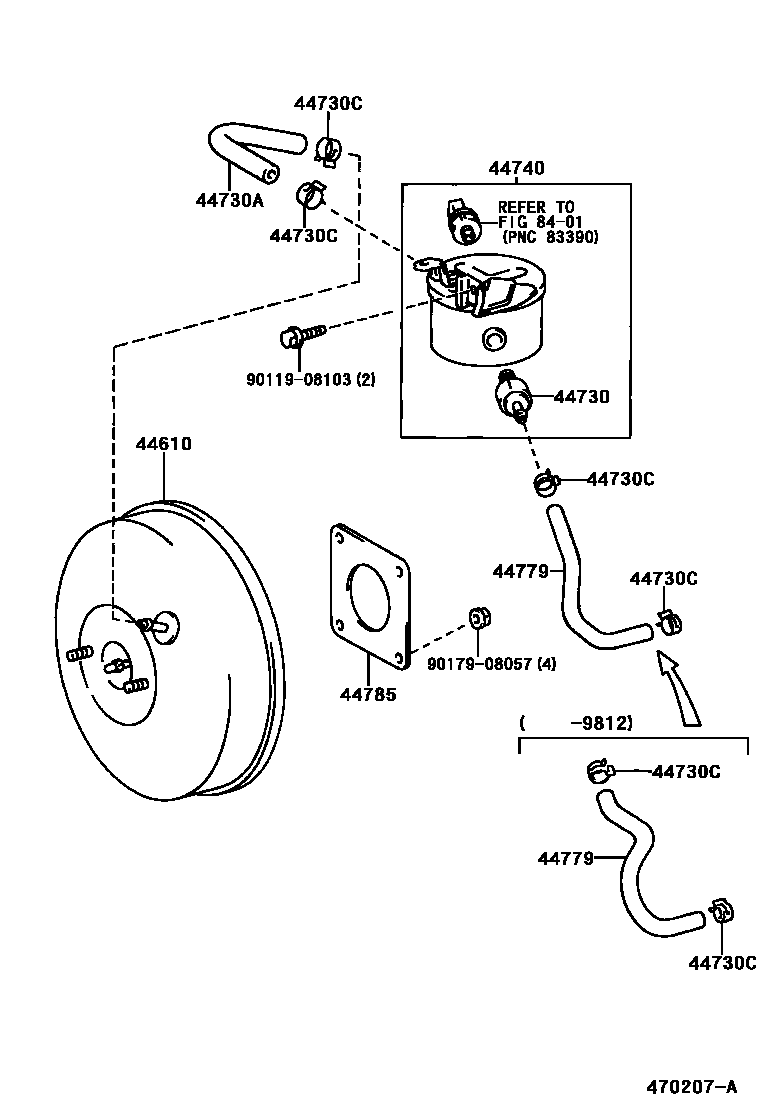

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

44610BOOSTER ASSY, BRAKE

main44610-28870iSR40..GEN199611-199812

main44610-28880iCR41,KR4#199611-199812

main44610-2J010iSR40..ARL199710-199812

main44610-2J030iSR40..GEN199812-200111

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10010iKR4#,SR40199611-199812

main44730-60050iCR4#199812-200412

44730AHOSE, VACUUM, NO.1

main95446-09190iCR42199812-200412

44730CCLIP(FOR VACUUM HOSE)

main90467-16002×3iCR41; KR4#; SR40199611-199812

main96133-41500×6iKR42199812-200310

44740RESERVOIR ASSY, VACUUM

main44740-28080iCR41199812-200112

44779HOSE, UNION TO CONNECTOR

main44779-28030iCR41199611-199812

main44779-28040iCR41199812-200112

44785GASKET, BRAKE BOOSTER

main44785-32010iCR41,KR4#,SR40199611-199812

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908103

main90119-08103

9017908057

main90179-08057

10 parts on this diagram · 3 diagrams in section
