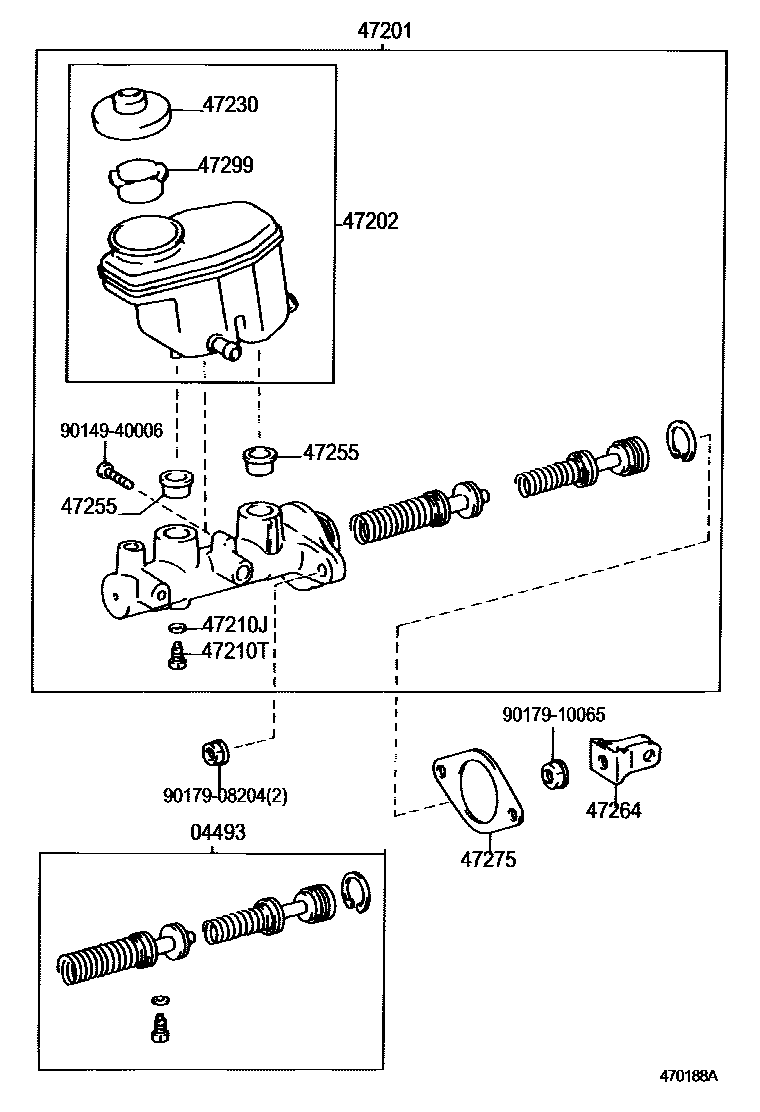

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-28140iSR40199710-200111

W(ABS)

main04493-60290iKR42..ARL199812-200310

W(ABS)

main04493-60300iCR41,KR4#,SR40199611-200412

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-28480iSR40..ATM..GEN199710-200111

W(ABS)

main47201-28490iSR40..MTM..GEN199710-200111

W(ABS)

main47201-28500iSR40..ATM..ARL199710-200111

W(ABS)

main47201-28510iSR40..MTM..ARL199710-200111

W(ABS)

main47201-28520iKR42..ATM199812-200310

W(ABS)

main47201-28530iKR42..MTM..ARL199812-200310

W(ABS)

main47201-28540iKR42,SR40..ATM199611-200310

main47201-28550iCR4#,KR42,SR40..MTM199611-200412

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-26250iSR40..ATM199611-200310

main47220-28220iCR42,SR40..MTM199611-200412

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iSR40..ARL199710-200111

W(ABS)

main90430-06104iCR41,KR4#,SR40199611-200412

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iCR41,KR4#,SR40199611-200412

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12040iCR41,KR42199611-200412

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iCR41,KR4#,SR40199611-200412

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-20060iCR41,KR4#,SR40199611-200412

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iCR41,KR4#,SR40199611-200412

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iCR41,KR4#,SR40199611-200412

9014940006

main90149-40006

9017908204

main90179-08204

9017910065

main90179-10065

13 parts on this diagram · 1 diagram in section
