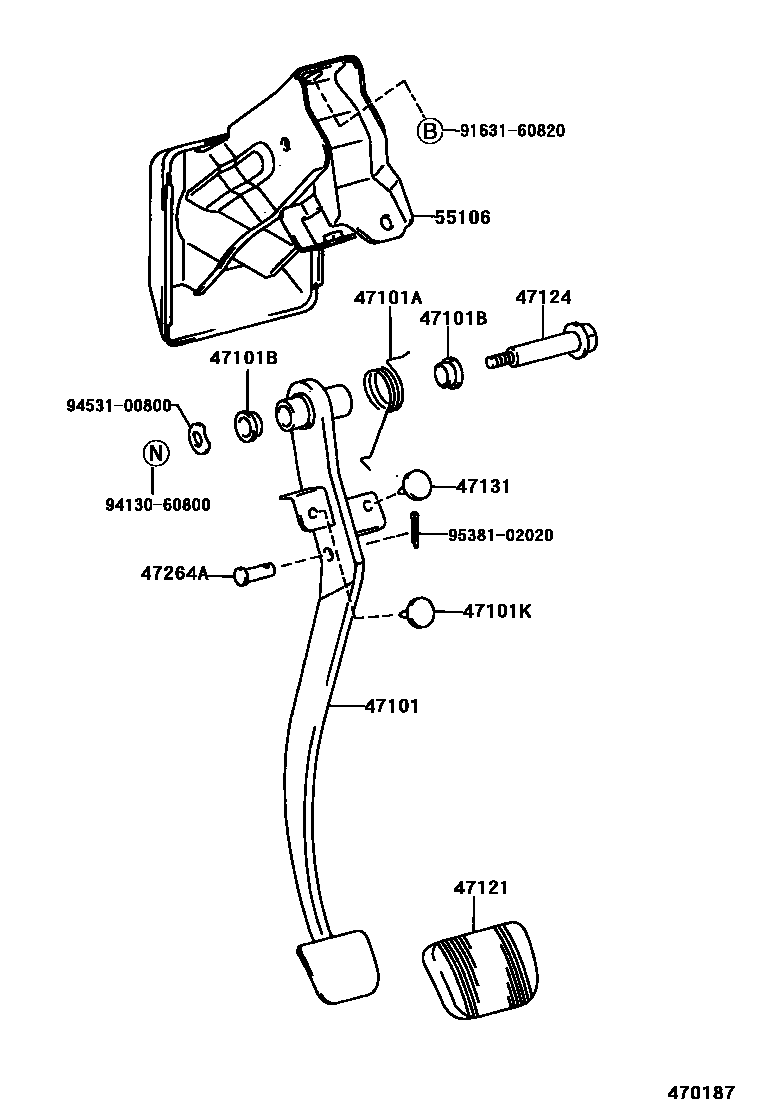

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-28160iCR42199812-200412

main47101-28170iSR40..ATM199812-200111

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90959-03122iCR41199812-200112

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007×2iCR41,KR4#,SR40199611-199812

47101KCUSHION(FOR PARKING LOCK CABLE)

main90541-06049iKR42,SR40..ATM199611-199812

47121PAD, BRAKE PEDAL

main31321-14020iCR41199812-200112

main31321-30040iKR42..ATM199812-200310

47124SHAFT, BRAKE PEDAL

main47124-28010iCR41,KR4#,SR40199611-199812

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iCR41,KR4#,SR40199611-199812

47264APIN(FOR PUSH ROD)

main90240-08070iCR41,KR4#,SR40199611-199812

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-28180iCR41,KR4#,SR40199611-199812

main55106-28220iSR40199812-200111

9163160820

main91631-60820

9413060800

main94130-60800

9453100800

main94531-00800

9538102020

main95381-02020

13 parts on this diagram · 2 diagrams in section
