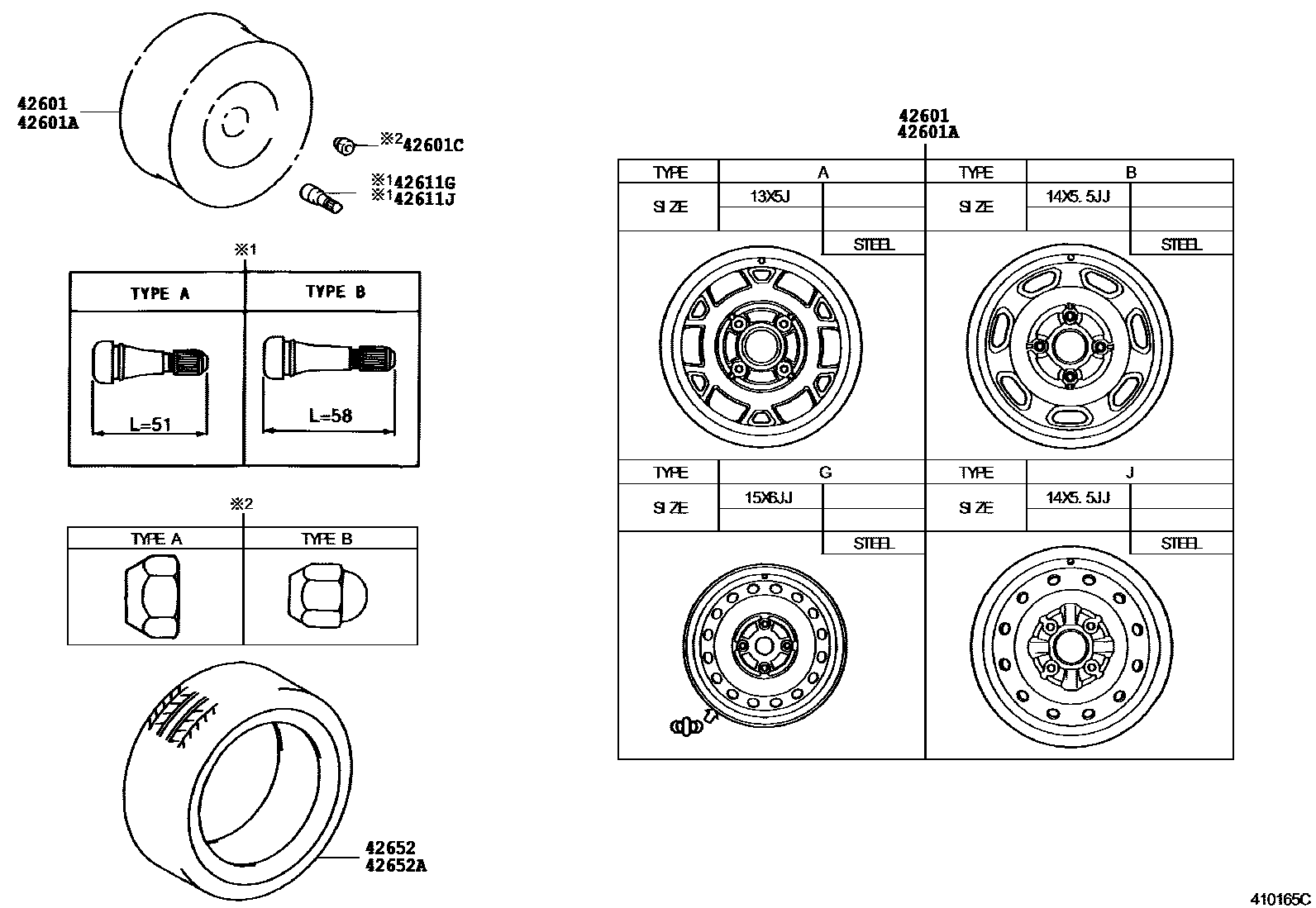

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
14X5.5JJ,BLACK,TYPE B:REFER ILLUST.
14X5.5JJ,SILVER M,TYPE J:REFER ILLUST.
13X5J,TYPE A:REFER TO ILLUSTRATION
13X5J,SILVER M,TYPE A:REFER ILLUST.
15X6JJ,OFFSET 27,TYPE G:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
14X5.5JJ,BLACK,TYPE B:REFER ILLUST.
14X5.5JJ,TYPE B:REFER TO ILLUSTRATION,SILVER M,TYPE J:REFER ILLUST.
13X5J,TYPE A:REFER ILLUST.
13X5J,SILVER M,TYPE A:REFER ILLUST.
15X6JJ,OFFSET 27,TYPE G:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER ILLUST.
TYPE C:REFER ILLUST.
TYPE C:REFER ILLUST.
TYPE A:REFER ILLUST.
42611GVALVE (FOR TUBELESS TIRE)
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
42611JVALVE (FOR TUBELESS TIRE SPARE)
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
42652TIRE
165R13 LT 6PR
165R13 LT 8PR
165R13 6PR
165R13 8PR
175R14 6PR
175R14 8PR
195/65R15
195/70HR14
42652ATIRE (FOR SPARE)
165R13 LT 8PR
165R13 8PR
175R14 8PR
195/65R15
195/70HR14
7 parts on this diagram · 3 diagrams in section
