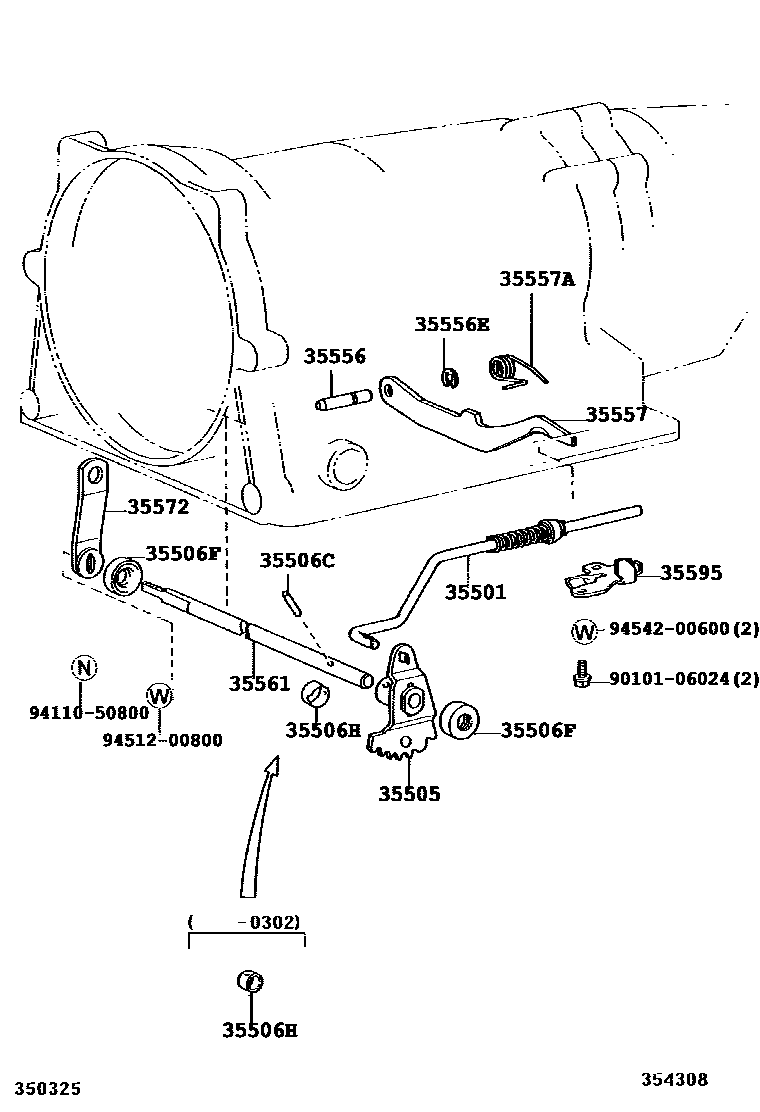

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A42D,A45DL 0002 1A42D 0003 1A45DL

35501ROD SUB-ASSY, PARKING LOCK

main35501-26020iKR42,SR40..ATM199812-200310

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-28010iKR42,SR40..ATM199611-199812

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iKR42,SR40..ATM199611-199812

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-11003×2iKR42,SR40..ATM199611-199812

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20003iSR40..ATM199812-200302

main90560-20025iKR42..ATM199812-200310

35556SHAFT, PARKING LOCK PAWL

main35556-26010iKR42,SR40..ATM199611-199812

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iKR42,SR40..ATM199611-199812

35557PAWL, PARKING LOCK

main35557-26020iKR42,SR40..ATM199611-199812

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21001iKR42,SR40..ATM199611-199812

35561SHAFT, MANUAL VALVE LEVER

main35561-40010iKR42,SR40..ATM199611-199812

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-28080iKR42,SR40..ATM199611-199812

35595BRACKET, PARKING LOCK PAWL

main35595-40010iKR42,SR40..ATM199611-199812

9010106024

main90101-06024

9411050800

main94110-50800

9451200800

main94512-00800

9454200600

main94542-00600

16 parts on this diagram · 3 diagrams in section
