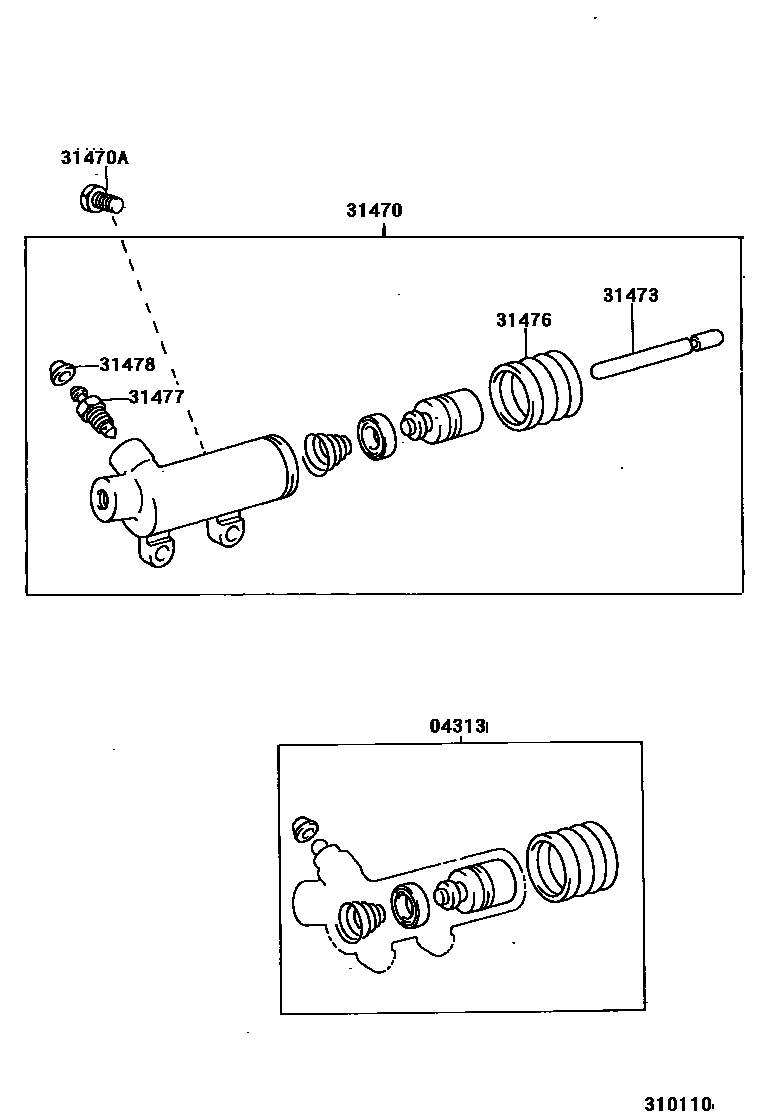

CLUTCH RELEASE CYLINDER

0001 1 0002 1 0004 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iCR41199611-199812

main04313-28020iSR40..MTM199611-200412

main04313-30130iKR4#..MTM199611-200310

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-28040iCR41199611-199812

main31470-28070iCR42199611-200412

main31470-30230iKR42..MTM199611-200310

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60825iCR41,KR4#,SR40..MTM199611-199812

*8-1.25PX25-25

main91611-B0825iSR40..MTM199812-200412

*8-1.25PX25-25

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iCR41199611-199812

main31473-32010iSR40..MTM199611-200412

main31473-35050iKR4#..MTM199611-200310

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iCR41,KR4#,SR40..MTM199611-200412

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iCR41,KR4#,SR40..MTM199611-200412

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iCR41,KR4#,SR40..MTM199611-200412

7 parts on this diagram · 3 diagrams in section
