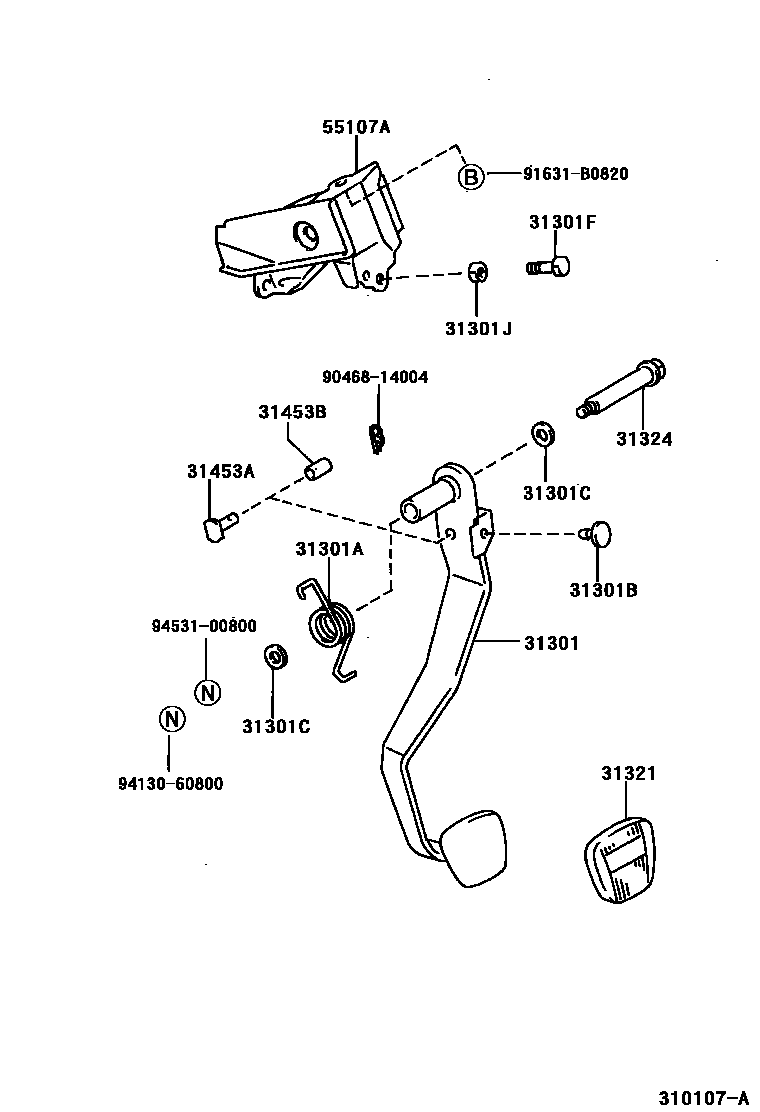

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-28130iSR40..MTM199812-200111

31301ASPRING(FOR CLUTCH PEDAL)

main90959-03121iCR41,KR4#,SR40..MTM199611-199812

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iCR41,KR4#,SR40..MTM199611-199812

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007×2iCR41,KR4#,SR40..MTM199611-199812

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10085iCR41,KR4#,SR40..MTM199611-199812

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94130-61000iCR41,KR4#,SR40..MTM199611-199812

31321PAD, CLUTCH PEDAL

main31321-14020iCR41,KR4#,SR40..MTM199611-199812

31324SHAFT, CLUTCH PEDAL

main47124-28010iCR41,KR4#,SR40..MTM199611-199812

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08070iKR42..MTM199812-200310

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iCR41,KR4#,SR40..MTM199611-199812

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-28050iCR41,KR4#,SR40..MTM199611-199812

9046814004

main90468-14004

91631B0820

main91631-B0820

9413060800

main94130-60800

9453100800

main94531-00800

15 parts on this diagram · 4 diagrams in section
