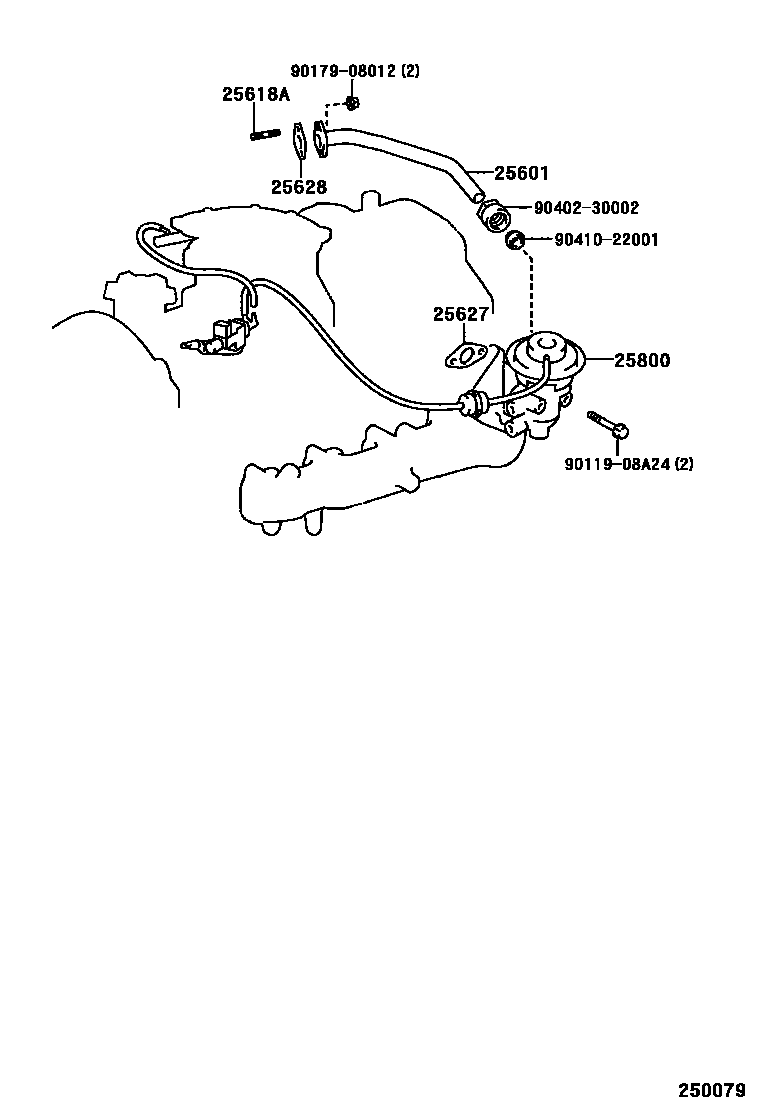

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

25601PIPE SUB-ASSY, EGR, NO.1

main25601-13051i7K..KR42..GEN199611-199812

main25601-64090i3CE..CR42200008-200412

25618ABOLT, STUD(FOR EGR INLET)

main92122-60822×2i3CE..CR42200008-200412

25627GASKET, EGR VALVE

main25627-13021i7K..KR42199611-199812

main25627-64041i3CE..CR42200008-200412

25628GASKET, EGR INLET

main25628-64030i3CE..CR42200008-200412

25800VALVE ASSY, ELECTRIC EGR CONTROL

main25800-64170i3CE..CR42200008-200412

9011908A24

main90119-08A24

9017908012

main90179-08012

9040230002

main90402-30002

9041022001

main90410-22001

9 parts on this diagram · 2 diagrams in section
