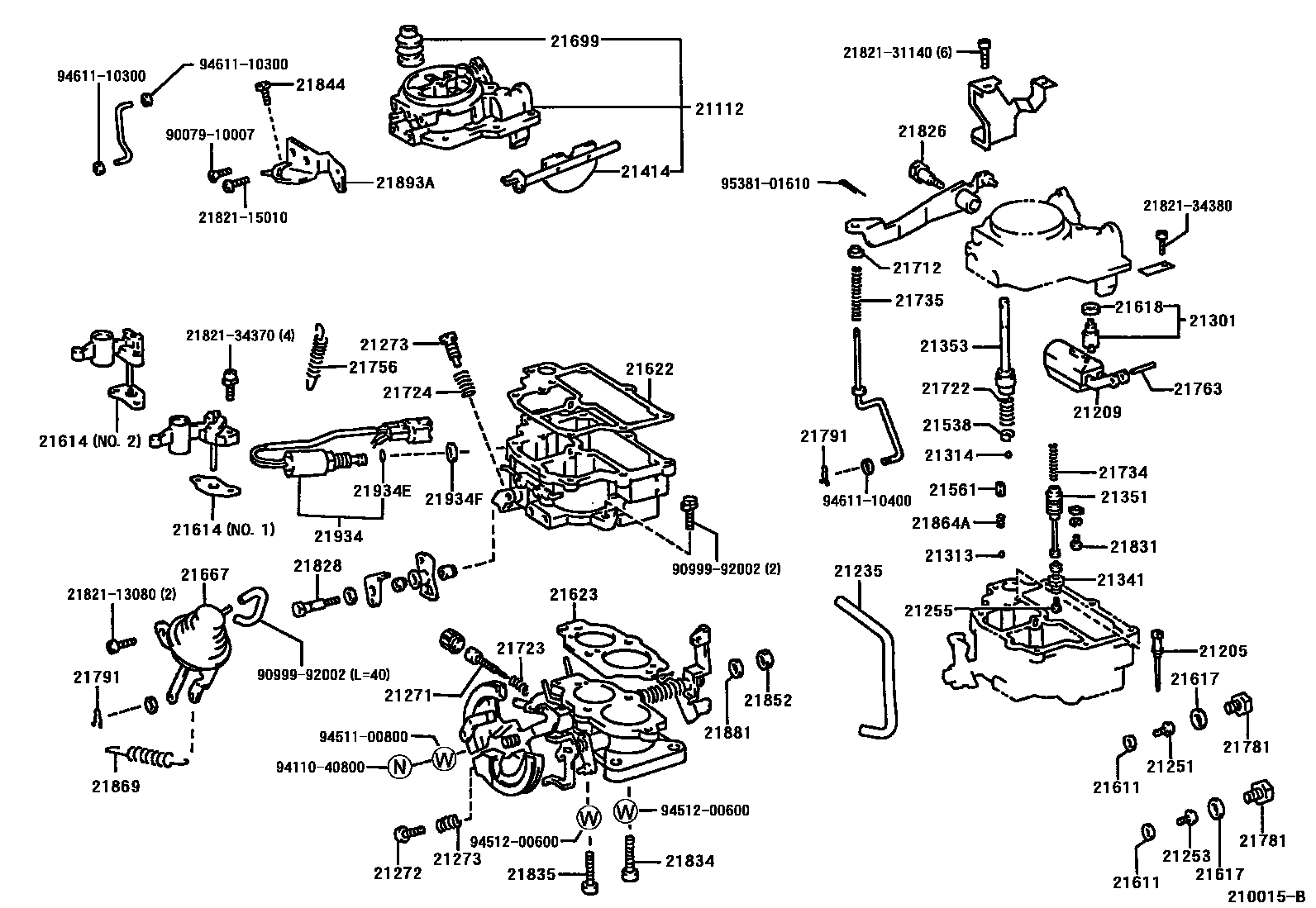

CARBURETOR
21112HORN, AIR
21209FLOAT SUB-ASSY
21235PIPE OR HOSE, CONNECTING
21251JET, 1ST MAIN
21253JET, 2ND MAIN
21255JET, POWER
21271SCREW, IDLE ADJUSTING
21272SCREW, 1ST IDLE ADJUSTING
21273SCREW, THROTTLE ADJUSTING
21301VALVE SUB-ASSY, NEEDLE
21313BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21314BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21341VALVE, POWER
21351PISTON, POWER
21414SHAFT, CHOKE
21538RETAINER, BALL CHECK
21561WEIGHT, PUMP DISCHARGE
21611GASKET, MAIN JET
21614GASKET, VENTURI
NO.1
NO.2
21617GASKET, MAIN PASSAGE PLUG
21618GASKET, NEEDLE VALVE SEAT
21622GASKET, AIR HORN
21623GASKET, BODY FLANGE
21667DIAPHRAGM
21699BOOT(FOR PUMP PLUNGER)
NO.1
NO.2
21712BUSH, SLIDING ROD
21722SPRING, PUMP DAMPING
21723SPRING, IDLE ADJUSTING
21724SPRING, THROTTLE ADJUSTING
21756SPRING, BACK(FOR THROTTLE SHAFT)
21763PIN, FLOAT LEVER
21781PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21791RING, SNAP, NO.1(FOR CARBURETOR LINK)
21828SCREW, 1ST IDLE SET
21831SCREW, POWER PISTON STOP
21834SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
21835SCREW, SET, NO.3(FOR CARBURETOR BODY SET)
21844SCREW, CHOKE LEVER
21852NUT, THROTTLE LEVER SET
21864ASPRING(FOR PUMP DISCHARGE WEIGHT)
21869SPRING(FOR MAIN JET)
21881WASHER, LOCK(FOR THROTTLE SHAFT)
21893ABRACKET, 1ST THROTTLE SHAFT
21934SOLENOID, THROTTLE VALVE
21934ERING, O(FOR SOLENOID VALVE)
21934FGASKET
2182113080SCREW, 2ND THROTTLE VALVE SET
main21821-13080
2182115010SCREW, 2ND THROTTLE VALVE SET
main21821-15010
2182131140SCREW, 2ND THROTTLE VALVE SET
main21821-31140
2182134370SCREW, 2ND THROTTLE VALVE SET
main21821-34370
2182134380SCREW, 2ND THROTTLE VALVE SET
main21821-34380
9007910007
main90079-10007
9099992002
main90999-92002
9411040800
main94110-40800
9451100800
main94511-00800
9451200600
main94512-00600
9461110300
main94611-10300
9461110400
main94611-10400
9538101610
main95381-01610
64 parts on this diagram · 3 diagrams in section
