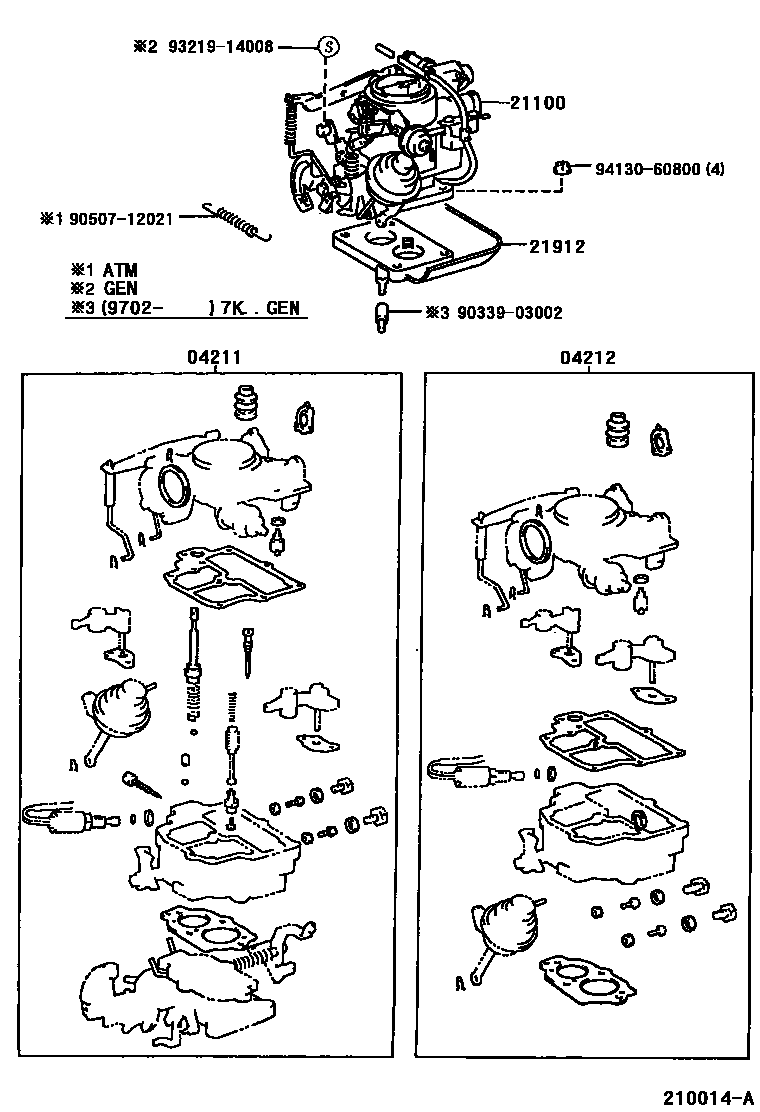

CARBURETOR ASSEMBLY

04211CARBURETOR KIT

main04211-1E060i7K..KR42..ARL199611-199812

main04211-1E080i7K..KR42..GEN199611-199812

main04211-1E110i5K..KR41199611-199812

04212GASKET KIT, CARBURETOR

main04212-10031i5K..KR41199611-199812

main04212-13042i7K..KR42199611-199812

21100CARBURETOR ASSY

main21100-1E060i7K..KR42..MTM..ARL199611-199812

main21100-1E070i7K..KR42..ATM199611-199812

main21100-1E080i7K..KR42..GEN199611-199812

main21100-1E110i5K..KR41199611-199812

21912INSULATOR, CARBURETOR HEAT

main21901-13010i5K..KR41199611-199812

main21901-13020i7K..KR42199611-199812

9033903002

main90339-03002

9050712021

main90507-12021

9321914008

main93219-14008

9413060800

main94130-60800

8 parts on this diagram · 1 diagram in section
