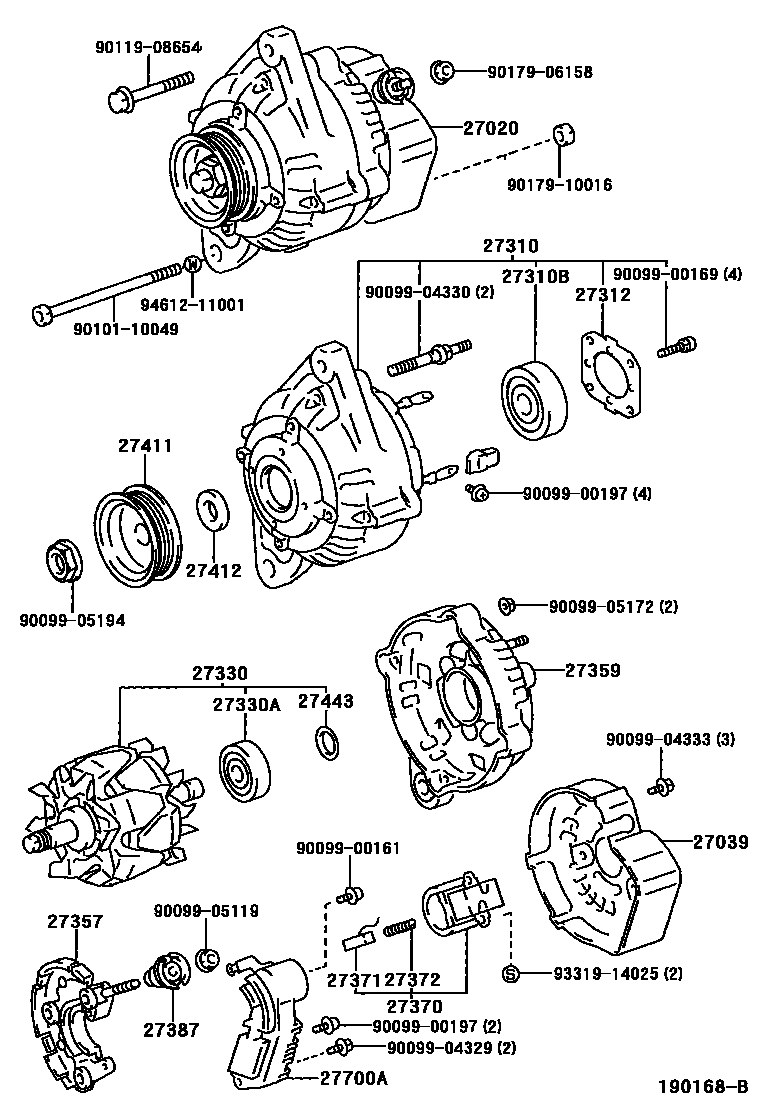

ALTERNATOR

0001 112V 45A 0002 112V 55A 0003 112V 55A 0004 112V 80A 0006 112V 90A

27020ALTERNATOR ASSY

main27060-13050i5K..KR41199611-199812

12V 45A

main27060-13070i7K..KR42199611-199812

12V 45A

main27060-13080i7KE..KR42199812-200310

12V 55A,MARK=08

main27060-64300i2C,3CE..CR4#199611-200412

12V 55A

main27060-74410i3SFE..SR40..MTM199611-200111

12V 80A

main27060-74670i3SFE..SR40..ATM199611-199710

12V 80A

main27060-74790i3SFE..SR40..ATM199710-200111

12V 90A

27039COVER, ALTERNATOR REAR END

main27039-11190i5K,7K..KR4#199611-199812

main27039-16380i3CE..CR42199701-200412

main27039-55080i3SFE..SR40199611-200104

sub27039-70470

main27039-70470i3SFE..SR40200104-200111

main27039-73020i2C..CR41199611-199701

sub27039-16380

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-13280i5K,7K..KR4#199611-199812

main27310-13380i7KE..KR42199812-200310

main27310-64460i3CE..CR42199611-200412

main27310-74120i3SFE..SR40..MTM199611-200111

main27310-74490i3SFE..SR40..ATM199611-200111

sub27310-70440

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10147i5K,7K..KR4#199611-199812

main90099-10178i2C,3CE..CR4#199611-200412

main90099-10192i3SFE..SR40199611-200111

main90099-10199i7KE..KR42200007-200310

27312PLATE, RETAINER

main27312-42010i3SFE..SR40199611-200111

main27312-70200i3CE..CR42199611-200412

main27312-72100i7KE..KR42199812-200310

main27312-72120i5K,7K..KR4#199611-199812

27330ROTOR ASSY, ALTERNATOR

main27330-11250i7KE..KR42199701-200412

main27330-13280i5K,7K..KR4#199611-199812

main27330-16390i3SFE..SR40..MTM200007-200111

main27330-72101i2C..CR41199611-199701

main27330-72280i3SFE..SR40..ATM199611-200007

sub27330-74550

main27330-74550i3SFE..SR40..ATM200007-200111

main27330-76030i3SFE..SR40..MTM199611-200007

sub27330-16390

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i3SFE..SR40199611-200412

main90099-10212i5K,7K..KR4#199611-199812

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-11160i5K,7K..KR4#199611-199812

main27357-13360i3CE..CR42199701-200412

main27357-16310i3SFE..SR40..ATM199710-200111

main27357-55080i3SFE..SR40..MTM199611-200111

main27357-63060i2C..CR41199611-199701

27359FRAME, ALTERNATOR RECTIFIER END

main27359-13280i5K..KR41199611-199812

main27359-13350i7KE..KR42199812-200310

main27359-13370i7K..KR42199611-199812

main27359-64461i2C..CR41199611-199701

main27359-64462i2C..CR41199701-200412

main27359-74330i3SFE..SR40..MTM199611-200111

main27359-74550i3SFE..SR40..ATM199611-200111

sub27359-70440

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-35060i5K,7K..KR4#199611-200310

main27370-58320i2C..CR41199611-200412

main27370-75060i3SFE..SR40199611-200111

27371BRUSH, ALTERNATOR

main27371-70300i2C,5K,7K..CR41,KR4#199611-200412

27372SPRING, ALTERNATOR BRUSH

main27372-63020i2C,5K,7K..CR41,KR4#199611-199812

sub27372-87501

main27372-87501i7KE..KR42199812-200412

27387INSULATOR, TERMINAL

main27387-10080i5K,7K..KR4#199611-199708

main27387-10081i5K,7K..KR4#199708-199812

main27387-42020i3SFE..SR40199611-199708

main27387-42021i3SFE..SR40199708-200111

main27387-70170i2C..CR41199611-199709

main27387-70171i3CE..CR42199709-200412

27411PULLEY, ALTERNATOR

main27411-13360i5K,7K..KR4#199611-199812

main27411-13380i7KE..KR42199812-200310

PNC 27020=MARK 08

main27411-42030i3SFE..SR40199611-200111

main27411-64460i2C,3CE..CR4#199611-200412

27412COLLAR, SPACER(FOR ALTERNATOR PULLEY)

main27412-13360i5K,7K..KR4#199611-199812

main27412-35100i7KE..KR42199812-200310

27443COVER, ALTERNATOR BEARING

main27443-63020i2C,5K,7K,3SFE..CR41,KR4#,SR40199611-200412

27700AREGULATOR ASSY, GENERATOR

main27700-13120i5K,7K..KR4#199611-199812

main27700-46050i3SFE..SR40..ATM199611-200111

main27700-50030i2C..CR41199611-200412

main27700-62030i7KE..KR42199812-200310

main27700-74040i3SFE..SR40..MTM199611-200111

9009900161

main90099-00161

9009900169

main90099-00169

9009900197

main90099-00197

9009904329

main90099-04329

9009904330

main90099-04330

9009904333

main90099-04333

9009905119

main90099-05119

9009905172

main90099-05172

9009905194

main90099-05194

9010110049

main90101-10049

9011908654

main90119-08654

9017906158

main90179-06158

9017910016

main90179-10016

9331914025

main93319-14025

9461211001

main94612-11001

32 parts on this diagram · 5 diagrams in section
