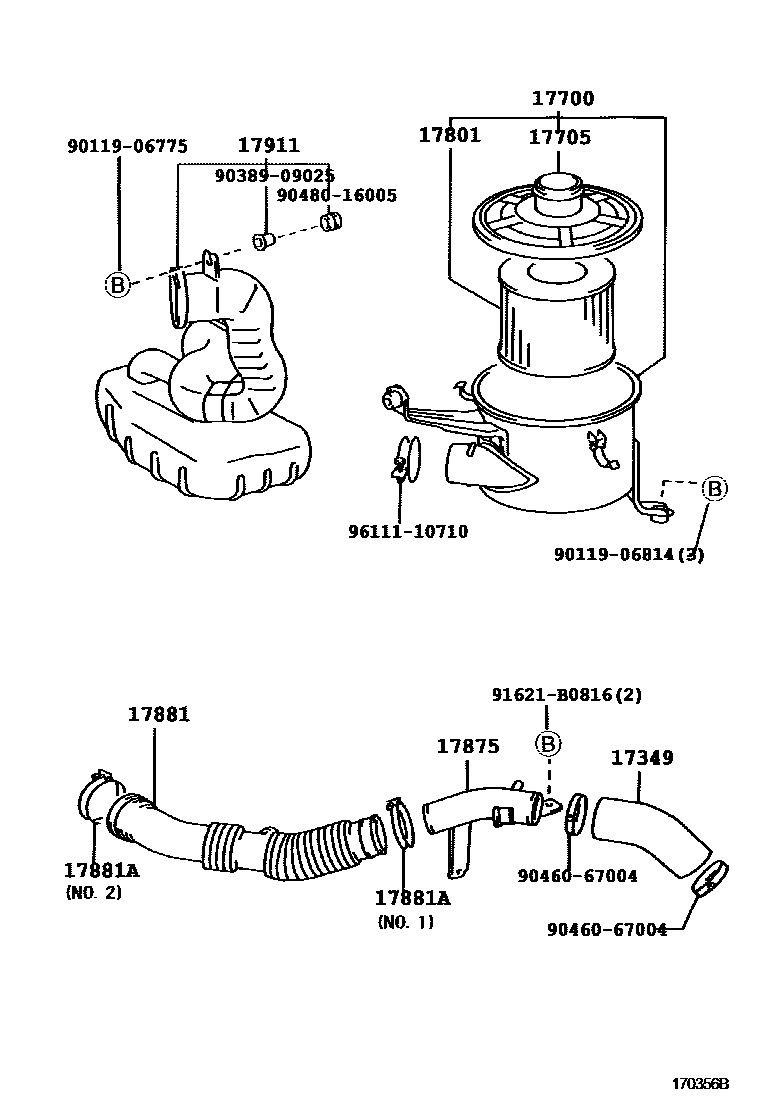

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

17349HOSE, INTAKE PIPE

main17349-64010i2C..CR41199611-200112

17700CLEANER ASSY, AIR

main17700-13800i7K..KR42..ARL199611-199812

main17700-13820i5K..KR41199611-199812

main17700-13830i7K..KR42..GEN199611-199812

main17700-64380i2C..CR41199611-200112

main17700-64480i3CE..CR42200008-200412

main17700-74630i3SFE..SR40199611-200310

17705CAP SUB-ASSY, AIR CLEANER

main17705-13230i7K..KR42..ARL199611-199812

main17705-13240i5K,7K..KR4#..GEN199611-199812

main17705-64260i2C..CR41199611-200112

main17705-74460i3CE..CR42199611-200412

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-13070i5K,7K..KR4#199611-199812

main17801-35020i3SFE..SR40199611-200310

main17801-35030i2C..CR41199611-200112

main17801-55020i3CE..CR42200008-200412

17875PIPE, INTAKE AIR CONNECTOR

main17875-64090i2C..CR41199611-200112

main17875-64100i3CE..CR42200008-200412

17881HOSE, AIR CLEANER, NO.1

main17880-13020i7KE..KR42199812-200310

main17881-64340i2C..CR41199611-200112

main17881-64380i3CE..CR42200008-200412

main17881-74830i3SFE..SR40199611-200111

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10650i3CE..CR42199611-200412

NO.1

main96111-10690i3SFE..SR40199611-200111

NO.1

main96111-10750i7KE..KR42199611-200412

NO.2

17911DUCT, COOL AIR INTAKE, NO.1

main52810-28040i3SFE..SR40199611-200412

main52810-28050i7KE..KR42199812-200310

main52810-28070i2C..CR41199611-200112

main52810-28080i5K,7K..KR4#199611-199812

9011906775

main90119-06775

9011906814

main90119-06814

9038909025

main90389-09025

9046067004

main90460-67004

9048016005

main90480-16005

91621B0816

main91621-B0816

9611110710

main96111-10710

15 parts on this diagram · 6 diagrams in section
