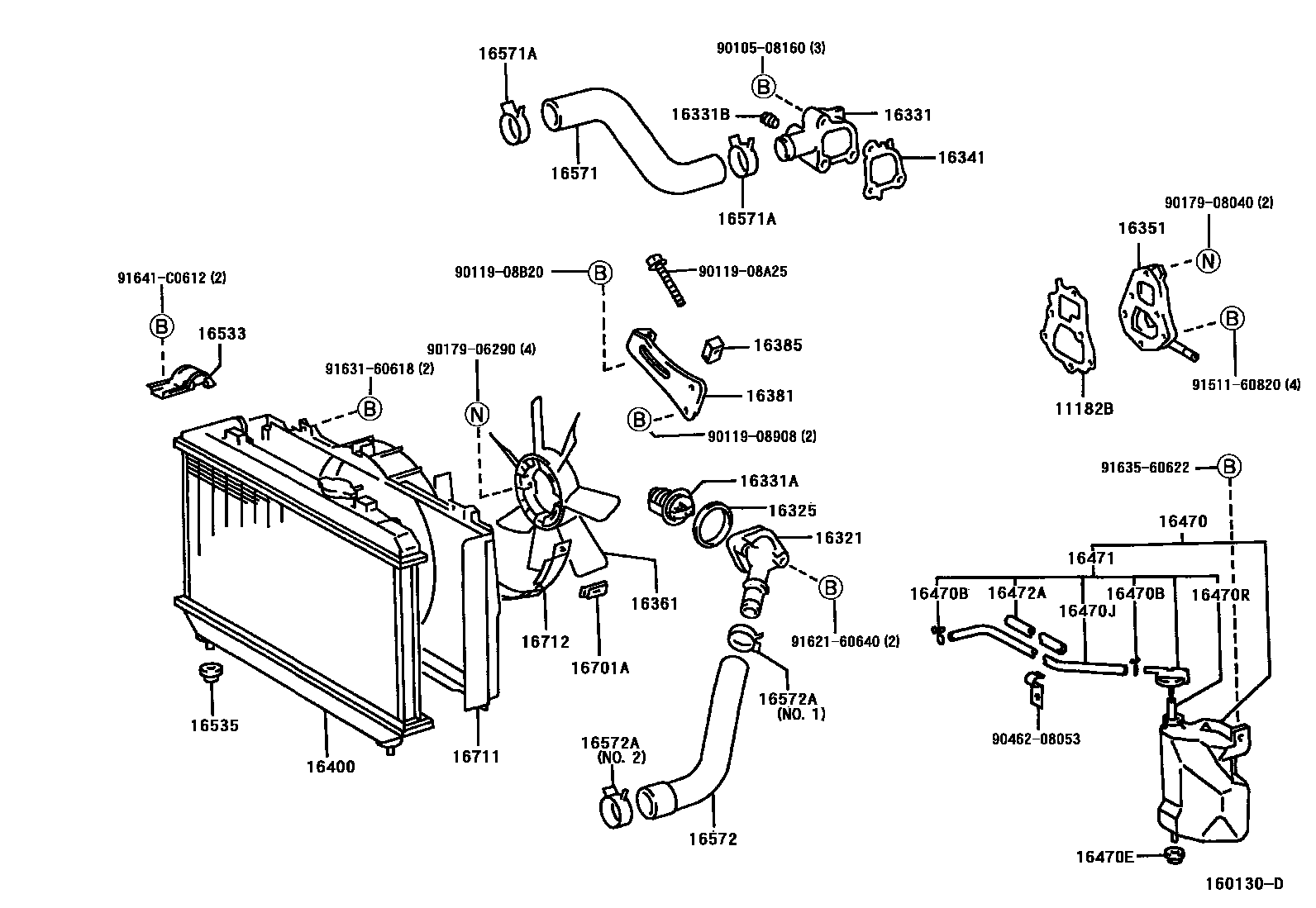

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

11182BGASKET, CYLINDER HEAD REAR PLATE

main11182-64021i3CE..CR42199611-200412

16321INLET, WATER

main16321-64080i2C..CR41199611-200412

main16321-74050i3SFE..SR40199611-200111

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63011i2C..CR41199611-200412

16331OUTLET, WATER

main16304-74240i3SFE..SR40199611-200111

main16331-13090i5K,7K..KR4#199611-199812

main16331-13100i7K..KR42199612-200310

main16331-64130i2C..CR41199611-200412

16331ATHERMOSTAT

main90916-03046i3CE..CR42199611-200412

*WAX 82-95

main90916-03083i7KE..KR42199611-200310

*WAX 82-95

main90916-03090i3SFE..SR40199611-200111

*WAX 82-95

16331BPLUG(FOR WATER OUTLET)

main90345-53030i2C..CR41199611-200412

16341GASKET, WATER OUTLET

main16341-13040i5K..KR41199611-199812

main16341-35010i7K..KR42199611-200310

main16341-64021i2C..CR41199611-200412

main16341-64030i2C..CR41199705-199709

sub16341-64021

main16341-74020i3SFE..SR40199611-200111

16351OUTLET, WATER BY-PASS

main16351-64010i2C..CR41199611-199812

main16351-64020i2C..CR41199812-200412

16361FAN

main16361-38010i7KE..KR42199611-200310

main16361-46050i3SFE..SR40199611-200111

NO.1

main16361-56070i2C..CR41199611-200111

NO.2

main16361-56070i2C..CR41199812-200412

main16361-74150i3SFE..SR40..GEN199812-200111

NO.1

16381BAR, FAN BELT ADJUSTING

main16381-13060i7K..KR42199611-200310

sub16381-13061

main16381-24011i5K..KR41199611-199812

main16381-64140i2C..CR41199611-200412

16385SLIDER, FAN BELT ADJUSTING

main16385-64030i2C..CR41199611-200412

16400RADIATOR ASSY

main16400-13610i7KE..KR42..ATM199812-200310

main16400-13620i7K..KR42..MTM199611-199803

sub16400-7A510

main16400-13630i7K..KR42..ATM199611-199812

main16400-6A140i2C..CR41199611-199812

main16400-6A280i2C..CR41199812-200112

sub16400-6A281

main16400-6A310i3CE..CR42200008-200301

sub16400-6A311

main16400-6A311i3CE..CR42200301-200412

main16400-7A380i3SFE..SR40..MTM..GEN199611-200111

sub16400-7A510

main16400-7A390i3SFE..SR40..ATM..GEN199611-199812

sub16400-7A660

main16400-7A510i3SFE..SR40..MTM..ARL199710-200310

main16400-7A520i3SFE..SR40..ATM..ARL199710-200111

main16400-7A660i3SFE..SR40..ATM..GEN199812-200111

16470TANK ASSY, RADIATOR RESERVE

main16470-64220i3SFE..SR40199611-200310

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i5K,7K..KR4#199611-200310

16470EGROMMET, RADIATOR RESERVE TANK HOSE

main90480-20014i2C..CR41199611-200412

16470JHOSE, NO.3(FOR RADIATOR RESERVE TANK)

main90099-33534i2C..CR41199611-200310

L=640

16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)

main90445-12078i2C..CR41199611-200310

*H,L=215

16471CAP SUB-ASSY, RESERVE TANK

main16471-64060i2C..CR41199611-200310

16472HOSE, BREATHER

main90445-12078i2C..CR41199812-200412

L=600(*H,L=200)

16472APROTECTOR, HOSE

main16479-64220i3SFE..SR40199611-200310

16533SUPPORT, RADIATOR, UPPER

main16505-64010i5K,7K..KR4#199611-200412

16535SUPPORT, RADIATOR, LOWER

main90480-40016i3SFE..SR40199611-200412

16571HOSE, RADIATOR, INLET

main16571-13290i7KE..KR42199611-200310

main16571-64290i2C..CR41199611-200412

main16571-74410i3SFE..SR40199611-200111

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-30001i7KE..KR42200209-200310

NO.1

main90467-31001i5K,7K..KR4#199611-199904

NO.1

sub90466-30001

main90467-31003i7KE..KR42199904-200208

NO.1

main90467-34001i3SFE..SR40199611-199812

NO.2

sub90467-33003

main90467-34004i3SFE..SR40199812-200111

main90467-34004i7KE..KR42199812-200310

NO.2

main90467-41002i2C..CR41199812-200412

sub90466-41008

main90467-42001i2C..CR41199611-199812

sub90467-41002

16572HOSE, RADIATOR, OUTLET

main16572-13280i5K,7K..KR4#199611-199812

main16572-13290i7KE..KR42199812-200310

main16572-64280i2C..CR41199611-200412

main16572-74310i3SFE..SR40199611-200111

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-38001i7KE..KR42199812-200310

NO.2

sub90466-39001

main90467-34001i3SFE..SR40199611-199812

sub90467-33003

main90467-34004i3SFE..SR40199812-200111

main90467-37001i5K,7K..KR4#199611-199812

NO.1

sub90467-37003

main90467-37005i7KE..KR42199812-200412

NO.1

main90467-41002i2C..CR41199812-200412

NO.2

sub90466-41008

main90467-42001i2C..CR41199611-199812

NO.2

sub90467-41002

16701ACLIP(FOR FAN SHROUD)

main90468-06013i3CE..CR42199611-200412

16711SHROUD, FAN

main16711-13350i5K,7K..KR4#199611-199812

main16711-13360i7KE..KR42199812-200310

main16711-64440i3CE..CR42199611-200412

main16711-74640i3SFE..SR40199611-200111

main16711-74730i3SFE..SR40..GEN199812-200111

16712SHROUD, FAN, NO.2

main16712-13150i5K,7K..KR4#199611-200310

main16712-64190i2C..CR41199611-200412

main16712-74020i3SFE..SR40199611-200111

9010508160

main90105-08160

9011908908

main90119-08908

9011908A25

main90119-08A25

9011908B20

main90119-08B20

9017906290

main90179-06290

9017908040

main90179-08040

9046208053

main90462-08053

9151160820

main91511-60820

9162160640

main91621-60640

9163160618

main91631-60618

9163560622

main91635-60622

91641C0612

main91641-C0612

41 parts on this diagram · 11 diagrams in section
