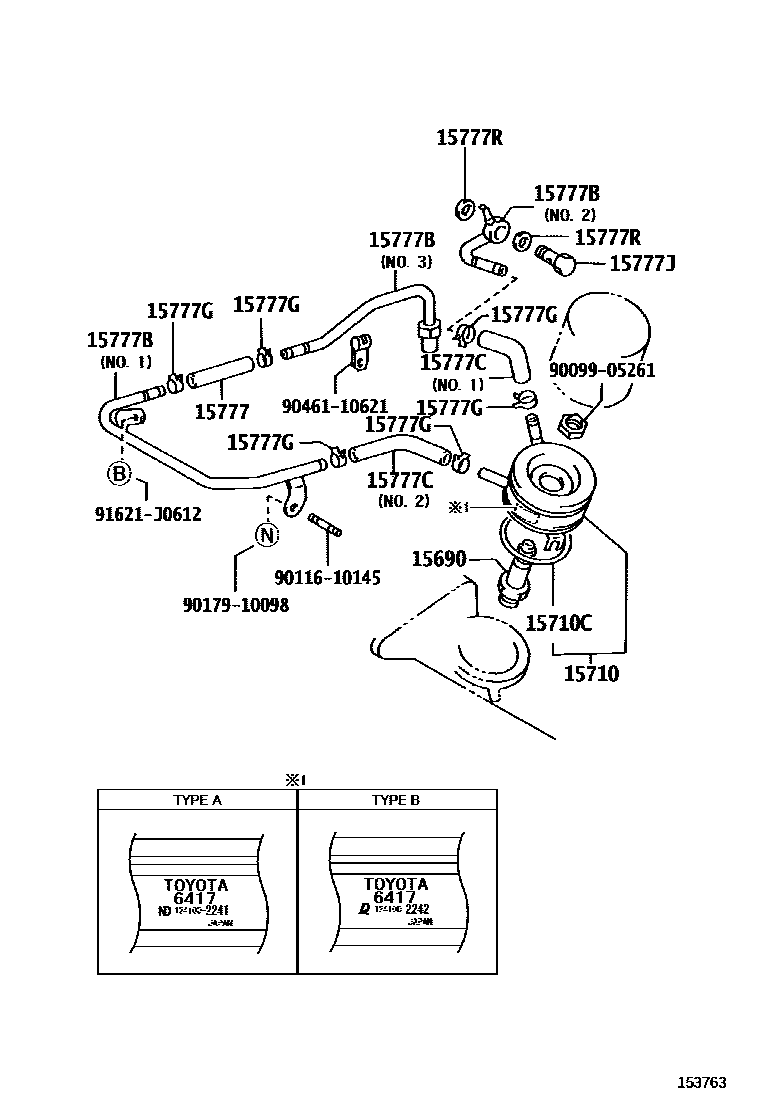

ENGINE OIL COOLER

0001 1 0002 1

15690VALVE ASSY, OIL COOLER RELIEF

main15695-64030i2C..CR41199611-199812

main15695-74010i3SFE..SR40..ARL199710-199812

15710COOLER ASSY, OIL

main15710-64170i2C..CR41199611-199810

main15710-64171i2C..CR41199810-199812

main15710-74060i3SFE..SR40..ARL199710-199812

15710CGASKET(FOR OIL COOLER)

main90301-67003i2C..CR41199611-199702

TYPE A:REFER ILLUST.

main90301-67004i2C..CR41199812-200112

15777HOSE, OIL COOLER

main15777-74010i3SFE..SR40..ARL199812-200111

main90445-21006i3CE..CR42199812-200412

15777BPIPE, OIL COOLER

main15767-64100i2C..CR41199812-200112

NO.1

main15767-64120i3CE..CR42200008-200412

NO.1

main15768-64140i3CE..CR42199812-200412

NO.2

main15769-64011i2C..CR41199611-199812

NO.3

15777CHOSE, OIL COOLER

main15777-64080i2C..CR41199611-199812

NO.1

main15778-64070i2C..CR41199611-199812

NO.2

15777GCLAMP OR CRIP, HOSE

main90467-20005×6i2C..CR41199611-199812

main96134-41900×6i2C..CR41199812-200112

15777JBOLT, UNION(FOR OIL COOLER PIPE)

main90401-20004i2C..CR41199611-199812

15777RGASKET(FOR OIL COOLER PIPE UNION BOLT)

main90430-20014×2i2C..CR41199611-199812

9009905261

main90099-05261

9011610145

main90116-10145

9017910098

main90179-10098

9046110621

main90461-10621

91621J0612

main91621-J0612

14 parts on this diagram · 2 diagrams in section
