OIL FILTER

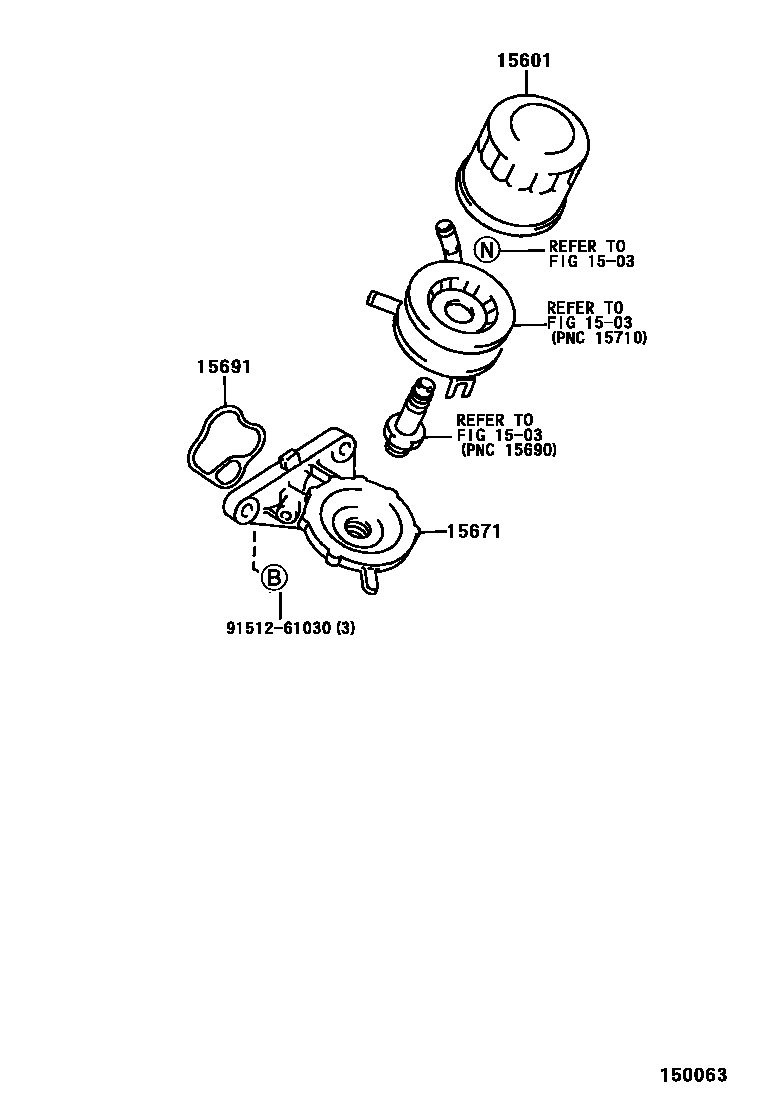

Parts diagram

1503ENGINE OIL COOLER

→ Go to FIG 15-03

15601FILTER SUB-ASSY, OIL

main15600-06010i199812-200310

main90080-91058i199812-200111

(L)

main90915-10001i199611-199812

main90915-10002i199812-199911

main90915-10003i199911-200111

(J)

main90915-10004i199911-200310

main90915-30003i199611-199812

15671BRACKET, OIL FILTER

main15677-64160i199812-200412

15691GASKET, OIL FILTER

main15691-06010i199812-200310

main15691-13020i199611-199812

main15691-13030i199611-199612

main15691-64040i199611-199804

main15691-64041i199812-200412

9151261030

main91512-61030

5 parts on this diagram · 3 diagrams in section
