ENGINE OVERHAUL GASKET KIT

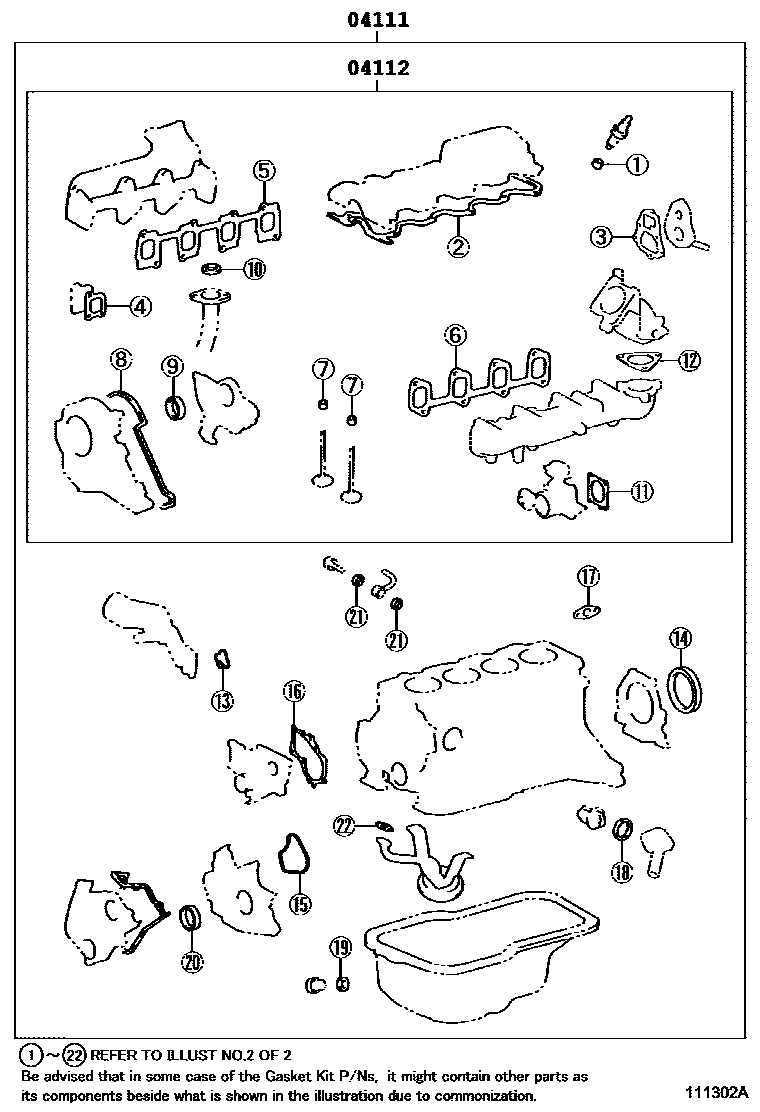

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-06010i199611-199804

main04111-06011i199804-199811

main04111-06012i199811-199812

main04111-06040i199812-200104

main04111-06041i200104-200310

main04111-13050i199611-199812

main04111-64232i199611-199704

main04111-64233i199704-199705

main04111-64234i199705-199805

main04111-64236i199805-199811

main04111-64237i199812-199906

main04111-64238i199906-200112

main04111-64511i200008-200412

main04111-64560i199811-199812

main04111-74591i199611-199612

main04111-74592i199812-200111

04112GASKET KIT, ENGINE VALVE GRIND

main04112-06010i199611-199804

main04112-06011i199804-199811

main04112-06012i199811-199812

main04112-06030i199812-200310

main04112-13030i199611-199812

main04112-64172i199611-199704

main04112-64173i199704-199705

main04112-64174i199812-199906

main04112-64175i199906-200112

main04112-64311i200008-200412

main04112-74561i199611-199612

main04112-74562i199812-200111

2 parts on this diagram · 19 diagrams in section
