SHORT BLOCK ASSEMBLY

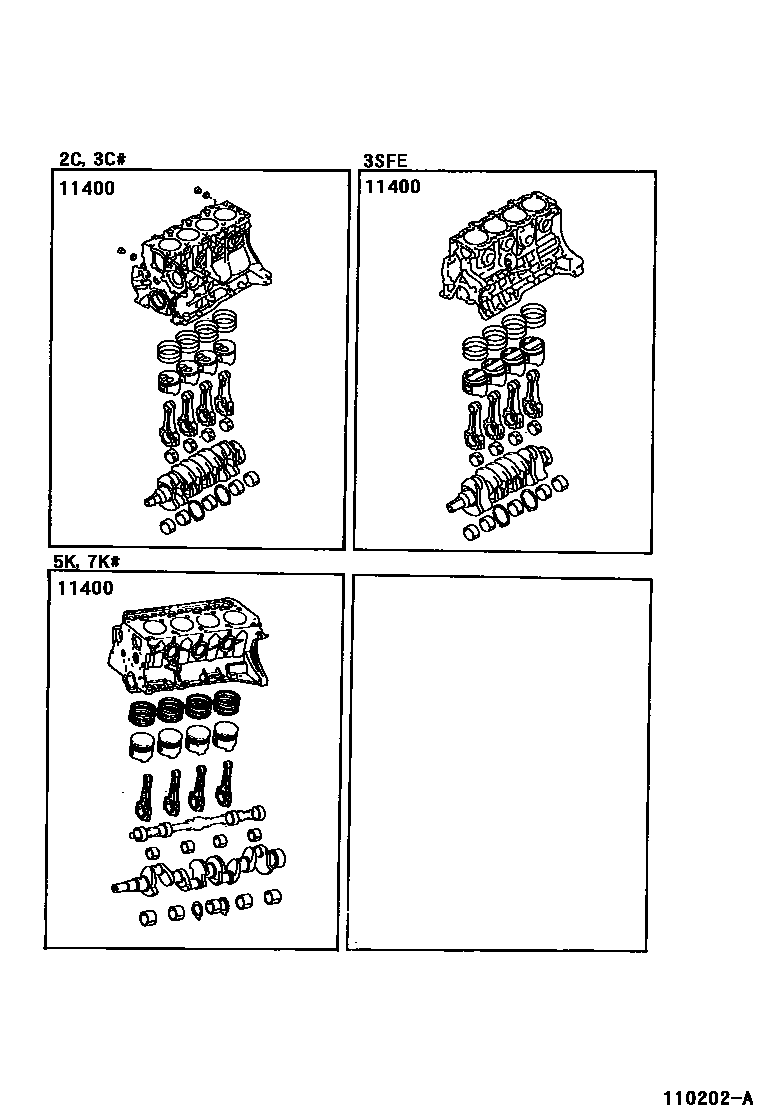

Parts diagram

11400BLOCK ASSY, SHORT

main11400-06011i199611-199702

main11400-06012i199702-199812

main11400-06050i199812-200310

main11400-06080i199812-200310

main11400-13061i199611-199812

main11400-64540i199611-199705

main11400-64541i199705-199808

main11400-64542i199808-199812

main11400-64620i200008-200407

main11400-64630i199812-200112

main11400-74400i199812-200111

1 parts on this diagram · 1 diagram in section
