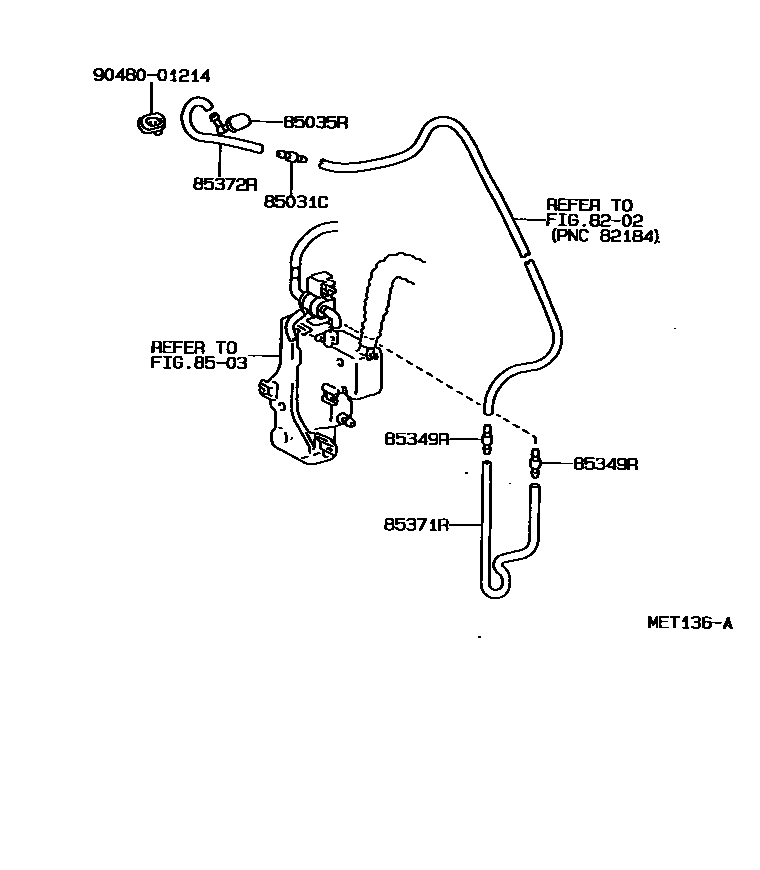

REAR WASHER

8202WIRING & CLAMP

→ Go to FIG 82-02

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85031CVALVE SUB-ASSY, WASHER

main85031-12250iCR27,KR2#,YR2#,39199201-199402

main85349-89122iCR27,KR2#,YR2#,39199402-200007

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-28020iYR22..DX199201-199309

main85391-28040iYR22..STD;CR27,KR2#,YR21,39199201-200007

85349RJOINT, REAR WASHER HOSE, NO.5

main85349-89122×2iKR2#..02S,08S199201-199610

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33299iCR27,YR2#,39;KR27..03S,05S,06S; KR2#..02S,08S199201-199610

L=1000

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33080iYR22..DX199201-199309

L=1450

9048001214

main90480-01214

8 parts on this diagram · 1 diagram in section
