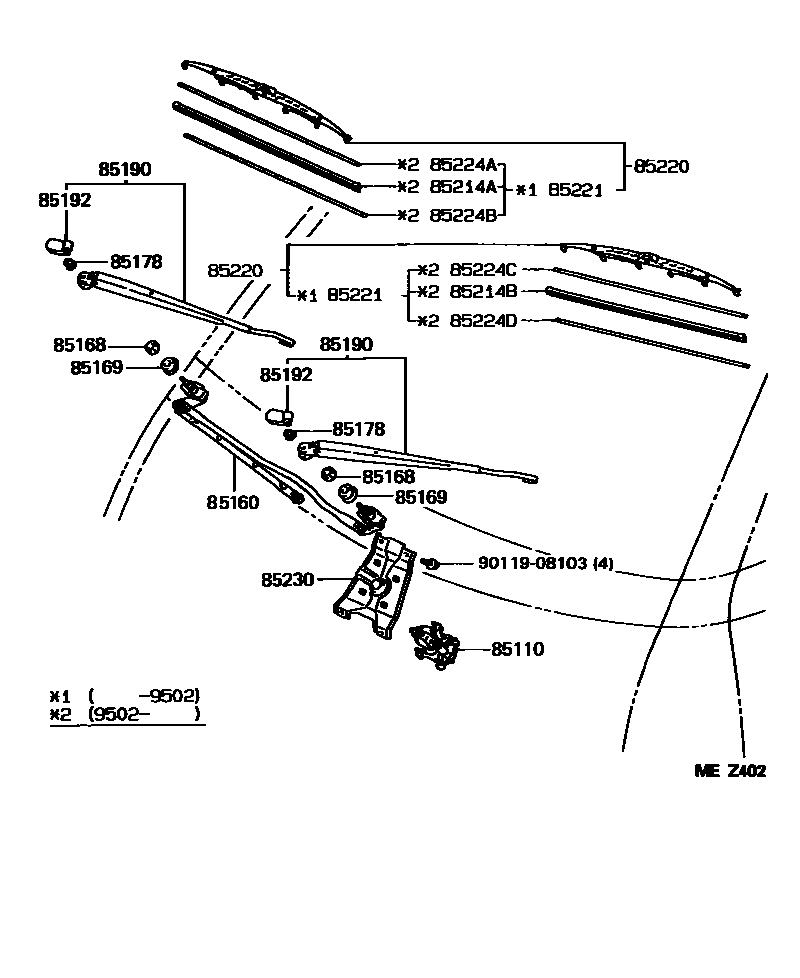

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-28050iCR27,KR27,YR22,39..RHD199201-199610

main85110-28060iCR27,KR2#,YR21..LHD199201-200007

85160LINK ASSY, WINDSHIELD WIPER

main85150-28040iCR27,KR27,YR22,39..RHD199201-199610

main85150-28050iCR27,KR2#,YR21..LHD199201-200007

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85168-95J00×2iCR27,KR2#,YR2#,39199201-200007

85169WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1

main85152-28040×2iCR27,KR27,YR22,39..RHD199201-199610

main85152-28050×2iCR27,KR2#,YR21..LHD199201-200007

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08015×2iCR27,KR2#,YR2#,39199201-200007

85190ARM ASSY, WINDSHIELD WIPER

main85211-28040iCR27,KR27,YR22,39..RHD199201-199610

RH

main85211-28050iCR27,KR2#,YR21..LHD199201-200007

RH

main85221-28020iCR27,KR27,YR22,39..RHD199201-199610

LH

main85221-28030iCR27,KR2#,YR21..LHD199201-200007

LH

85192COVER, WINDSHIELD WIPER ARM

main85192-28020×2iCR27,KR2#,YR2#,39199201-200007

85214ARUBBER, WIPER, RH

main85214-20320iCR27,KR2#,YR2#,39199504-199610

main85214-60030iYR22,39..02S,08S199502-199504

85214BRUBBER, WIPER, LH

main85214-20320iYR39..05S;CR27,KR27..RHD199502-199504

main85214-20330iCR27,KR2#,YR21..LHD199502-200007

main85214-60030iYR22,39..02S,08S199502-199504

85220BLADE ASSY, WINDSHIELD WIPER

main85212-28050iCR27,KR2#,YR21..LHD199201-200007

RH

main85212-28070iCR27,KR27,YR22,39..RHD199504-199610

RH

main85212-28080iYR22,39..02S,08S199201-199504

RH

main85222-28030iYR39..05S;CR27,KR27..RHD199201-199504

LH

main85222-28040iCR27,KR2#,YR21..LHD199201-200007

LH

main85222-28060iYR22,39..02S,08S199201-199504

LH

85221BLADE, WINDSHIELD WIPER

main85213-28040iCR27,KR2#,YR21..LHD; YR39..05S;CR27,KR27..RHD199201-199502

RH

main85213-28050iCR27,KR2#,YR21..LHD199201-199502

LH

main85213-28080×2iYR22,39..02S,08S199201-199502

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-60050iCR27,KR2#,YR2#,39199502-200007

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-60050iCR27,KR2#,YR2#,39199502-200007

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-60050iCR27,KR2#,YR2#,39199502-200007

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-60050iCR27,KR2#,YR2#,39199502-200007

85230BRACKET ASSY, WINDSHIELD WIPER

main85230-28010iCR27,KR27,YR22,39..RHD199201-199610

main85230-28020iCR27,KR2#,YR21..LHD199201-200007

9011908103

main90119-08103

17 parts on this diagram · 1 diagram in section
