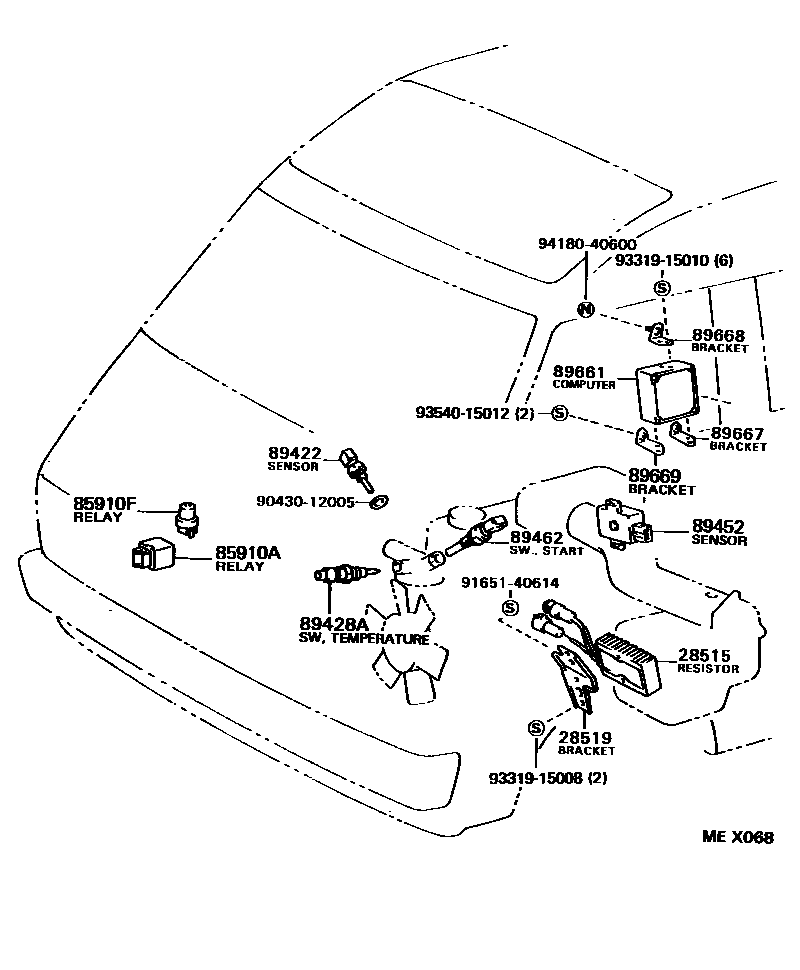

ELECTRONIC FUEL INJECTION SYSTEM

28515RESISTOR, SOLENOID

main28515-73030i4YEC..YR22199201-199610

28519BRACKET, SOLENOID RESISTOR

main28519-73010i4YEC..YR22199201-199610

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-33010iYR22199201-199610

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004iYR22199201-199610

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iYR22199201-199610

89428ASWITCH, WATER TEMPERATURE (FOR E.F.I)

main89428-28070iYR22199203-199610

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12060iYR22199201-199610

89462SWITCH, START INJECTOR TIME

main89462-20030iYR22199201-199610

89661COMPUTER, ENGINE CONTROL

main89661-28250iYR22199201-199408

main89661-28540iYR22199408-199610

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-28030iYR22199201-199610

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89568-28010iYR22199201-199610

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-28010iYR22199201-199610

9043012005

main90430-12005

9165140614

main91651-40614

9331915008

main93319-15008

9331915010

main93319-15010

9354015012

main93540-15012

9418040600

main94180-40600

18 parts on this diagram · 1 diagram in section
