INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-12050-B1iCR27,KR2#,YR2#,39199201-199309

LIGHT GRAY,TRIM1#

main81240-12051-B1iCR27,KR2#,YR2#,39199309-200007

LIGHT GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iCR27,KR2#,YR2#,39199309-200007

12V 8W

main99132-12100iCR27,KR2#,YR2#,39199201-199309

12V 10W

81360LAMP ASSY, STEP OR SPOT

main81230-28040iYR22199201-199408

main81250-28030iYR22199408-199610

81360BBULB, STEP OR SPOT LAMP

main99132-13050iYR22199201-199610

12V 5W

81361LENS, STEP LAMP

main81251-14030iYR22199408-199610

9016445005

main90164-45005

9351044020

main93510-44020

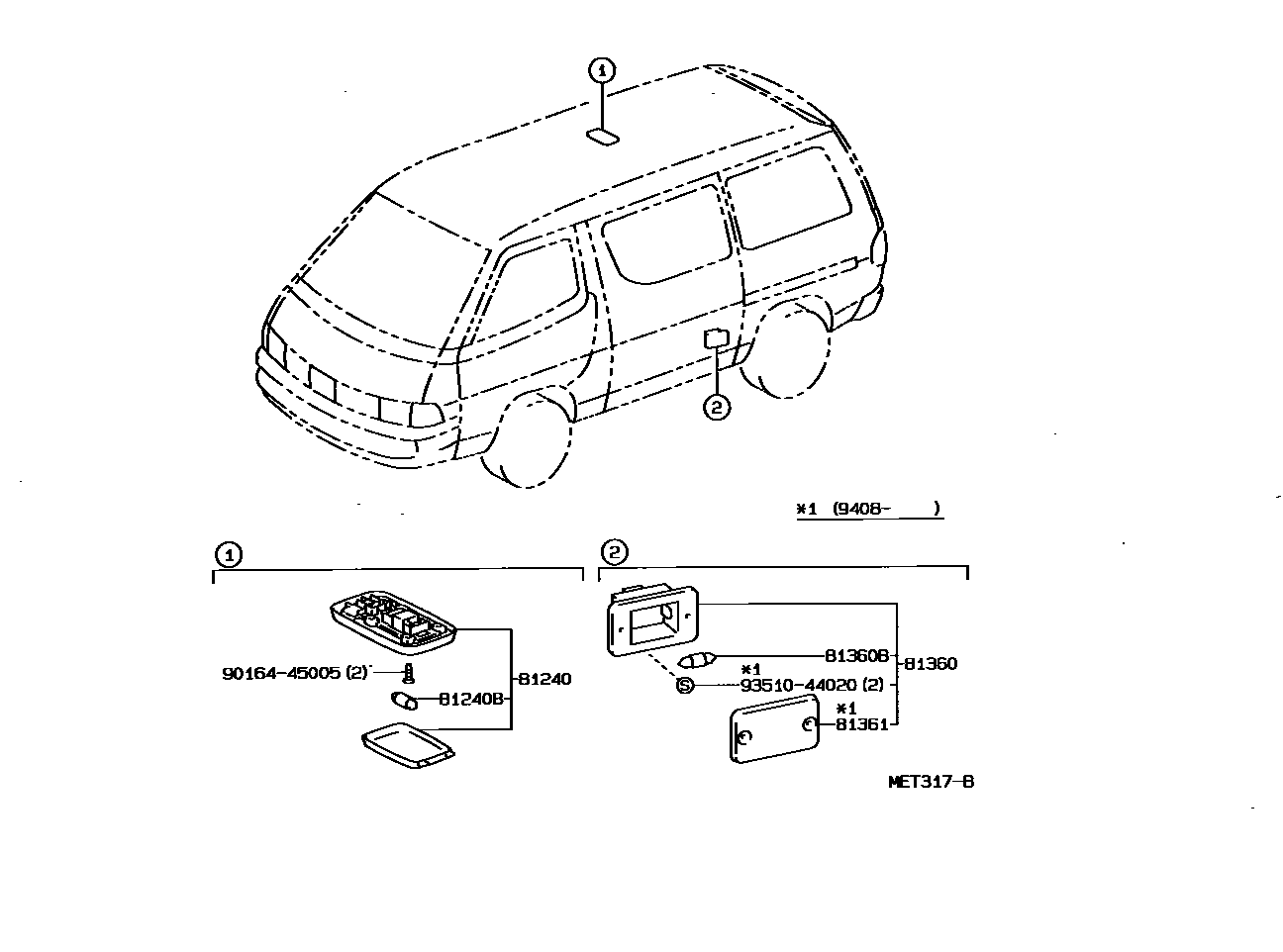

7 parts on this diagram · 1 diagram in section
