BACK UP LAMP

81670LAMP ASSY, BACK-UP, RH

main81670-28020iCR27,KR27,YR39199201-199610

main81670-28040iKR28,YR2#199201-200007

81670BBULB(FOR BACK-UP LAMP)

main99132-11210×2iCR27,KR2#,YR2#,39199201-200007

12V 21W

81674GASKET, BACK-UP LAMP BODY, RH

main81674-28020iCR27,KR2#,YR2#,39199201-200007

81675SOCKET & WIRE, BACK-UP LAMP

main81675-28020×2iCR27,KR2#,YR2#,39199201-200007

81680LAMP ASSY, BACK UP, LH

main81680-28020iCR27,KR27,YR39199201-199610

main81680-28040iKR28,YR2#199201-200007

81684GASKET, BACK UP LAMP BODY, LH

main81674-28020iCR27,KR2#,YR2#,39199201-200007

8127995700WASHER, SIDE TURN SIGNAL LAMP

main81279-95700

9007590001

main90075-90001

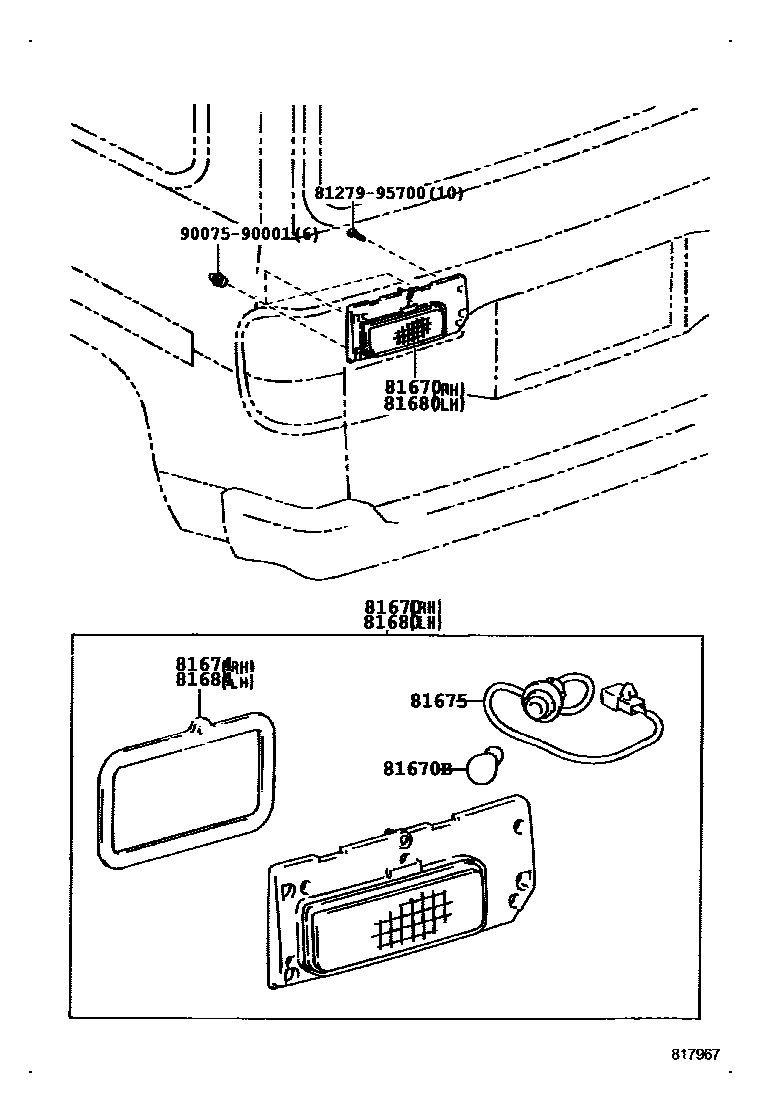

8 parts on this diagram · 1 diagram in section
