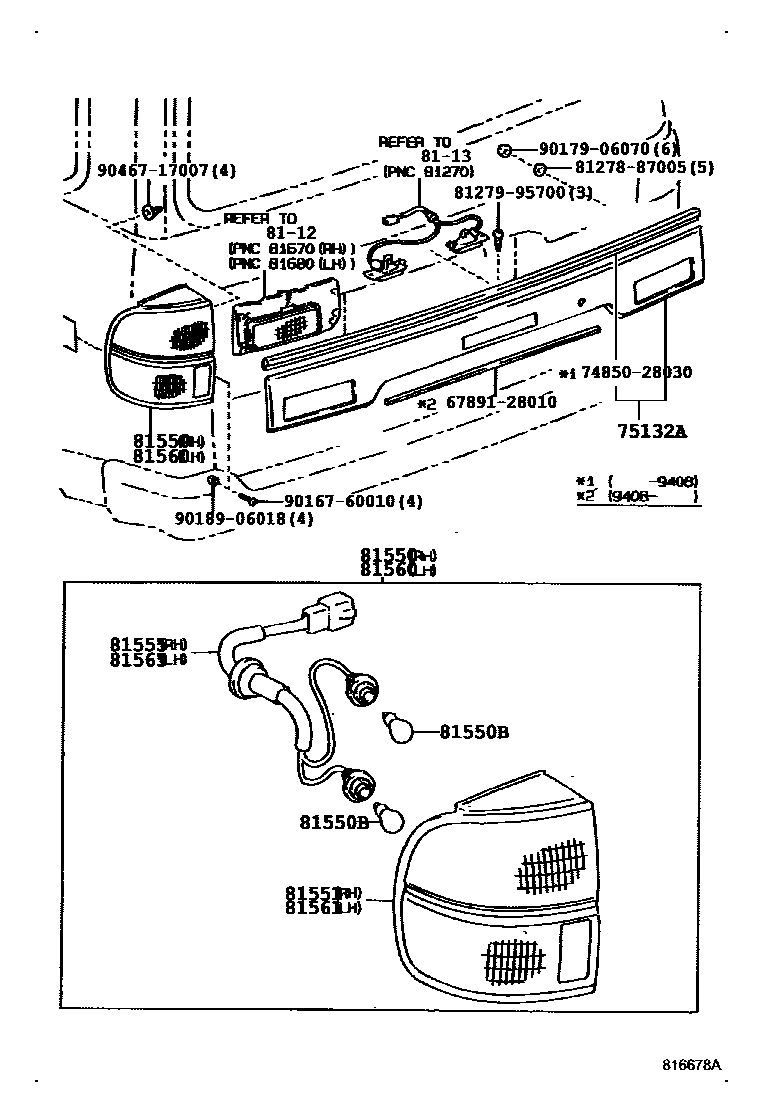

REAR COMBINATION LAMP

75132ACOVER, LICENSE REAR LAMP

main75132-28020iCR27,KR2#,YR2#,39199201-199408

main75132-28080iCR27,KR2#,YR2#,39199408-200007

8112BACK UP LAMP

→ Go to FIG 81-12

8113REAR LICENSE PLATE LAMP

→ Go to FIG 81-13

81550LAMP ASSY, REAR COMBINATION, RH

main81550-28040iCR27,KR2#,YR2#,39199201-200007

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210×2iCR27,KR2#,YR2#,39199201-200007

12V 21W

main99132-21210×2iCR27,KR2#,YR2#,39199201-200007

12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-28040iCR27,KR2#,YR2#,39199201-200007

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-28030iCR27,KR2#,YR2#,39199201-200007

81560LAMP ASSY, REAR COMBINATION, LH

main81560-28040iCR27,KR2#,YR2#,39199201-200007

81561LENS, REAR COMBINATION LAMP, LH

main81561-28040iCR27,KR2#,YR2#,39199201-200007

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-28030iCR27,KR2#,YR2#,39199201-200007

6789128010WEATHERSTRIP, REAR DOOR PANEL

main67891-28010

7485028030SEPARATOR ASSY

main74850-28030

8127887005COVER, LICENSE PLATE LAMP

main81278-87005

8127995700WASHER, SIDE TURN SIGNAL LAMP

main81279-95700

9016760010

main90167-60010

9017906070

main90179-06070

9018906018

main90189-06018

9046717007

main90467-17007

18 parts on this diagram · 1 diagram in section
