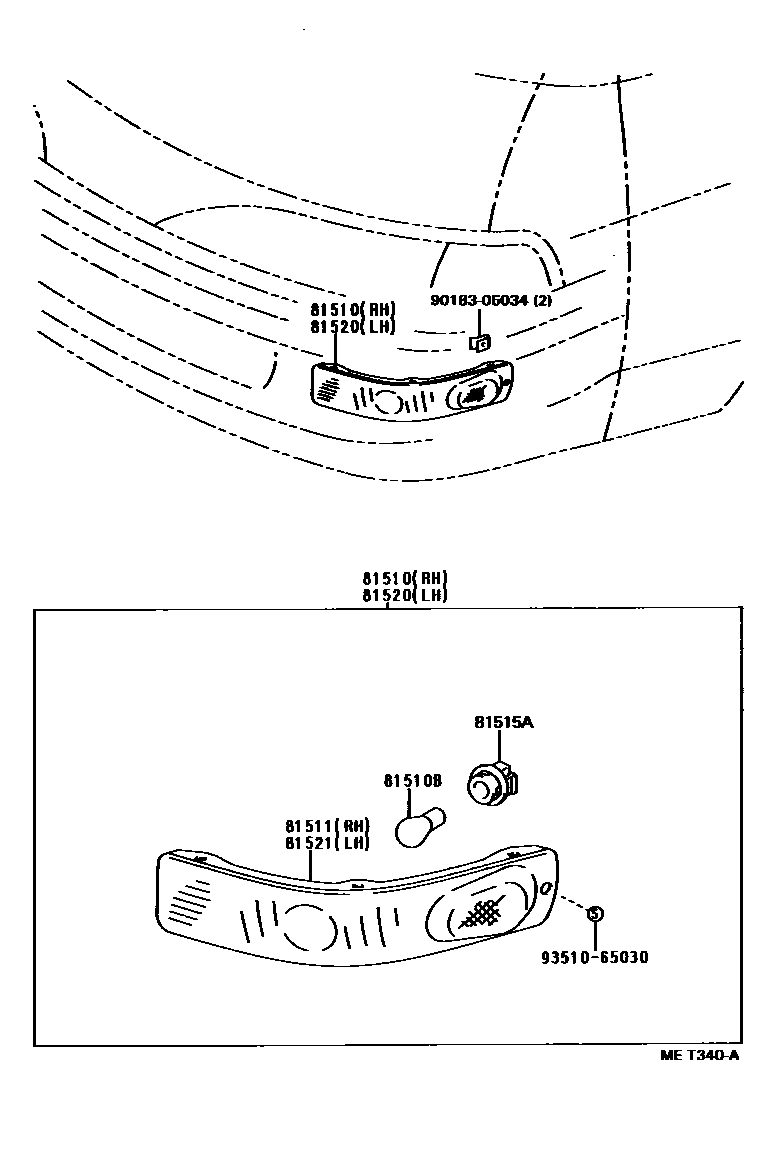

FRONT TURN SIGNAL LAMP

0001 1 0002 1YR39=NEWZERLAND SPEC 0003 1

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-28060iYR21,39..02S,08S; YR39..05S199201-199408

NEWZEALAND SPEC

main81510-28070iCR27,KR2#;YR39..05S199201-199408

main81510-28090iYR22199506-199610

main81510-28120iYR22199201-199506

main81510-28160iYR39..05S199408-199610

NEWZEALAND SPEC

main81510-28170iCR27,KR2#;YR39..05S199408-199610

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11210×2iCR27,KR2#,YR2#,39199201-200007

12V 21W

main99132-12050×2iCR27,KR2#;YR39..05S199201-199610

12V 5W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-28060iYR21,39..02S,08S; YR39..05S199201-199408

NEWZEALAND SPEC

main81511-28070iCR27,KR2#;YR39..05S199201-199408

main81511-28090iYR22199506-199610

main81511-28120iYR22199201-199506

main81511-28160iYR21,39..02S,08S199408-200007

main81511-28170iCR27,KR2#;YR39..05S199408-199610

81515WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY

main81515-28050×2iCR27,KR2#;YR39..05S199201-199610

main81515-28060×2iYR39..05S199201-199610

NEWZEALAND SPEC

81515APLUG ASSY, FRONT TURN SIGNAL LAMP

main90075-99020×2iYR22199201-199506

main90075-99078×2iYR22199506-199610

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-28050iYR21,39..02S,08S; YR39..05S199201-199408

NEWZEALAND SPEC

main81520-28060iCR27,KR2#;YR39..05S199201-199408

main81520-28080iYR22199506-199610

main81520-28120iYR22199201-199506

main81520-28160iYR39..05S199408-199610

NEWZEALAND SPEC

main81520-28170iCR27,KR2#;YR39..05S199408-199610

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-28050iYR21,39..02S,08S; YR39..05S199201-199408

NEWZEALAND SPEC

main81521-28060iCR27,KR2#;YR39..05S199201-199408

main81521-28080iYR22199506-199610

main81521-28120iYR22199201-199506

main81521-28160iYR39..05S199408-199610

NEWZEALAND SPEC

main81521-28170iCR27,KR2#;YR39..05S199408-199610

9018305034

main90183-05034

9351065030

main93510-65030

9 parts on this diagram · 3 diagrams in section
