SEAT & SEAT TRACK

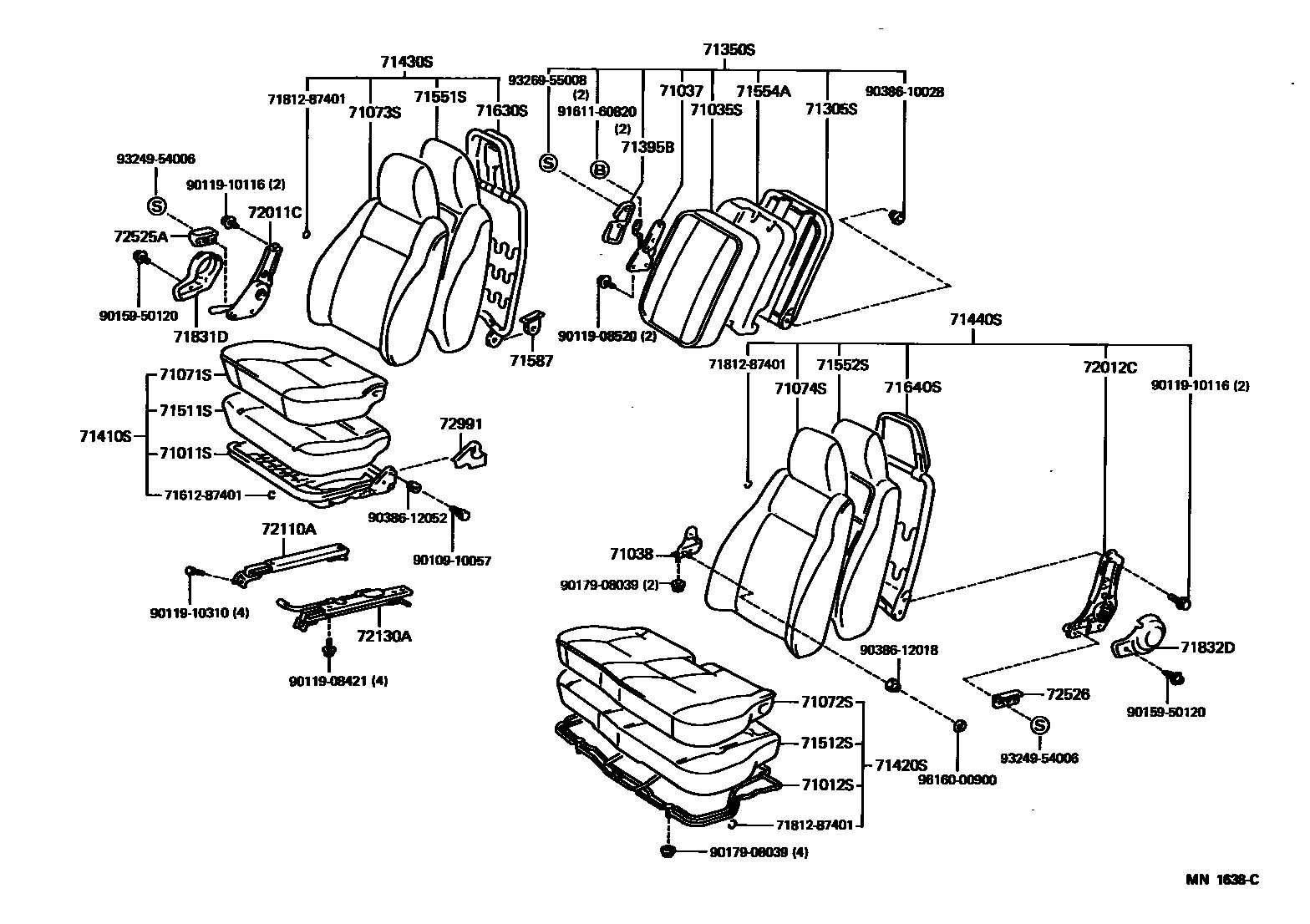

Parts diagram
71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH
main71011-28090i199201-199610
main71011-28100i199201-199309
main71011-87018i199201-199309
W(FRONT 3-POINT TYPE *ELR)
71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH
main71012-28090i199201-199610
main71012-28100i199201-199610
main71012-28110i199201-199610
W(FRONT 3-POINT TYPE *ELR)
71035SCOVER, FRONT SEATBACK, CENTER
main71076-28020-B0i199201-199610
GRAY,TRIM1#
71037HINGE SUB-ASSY, CENTER SEATBACK, RH
main71037-87001i199201-199610
71038HINGE SUB-ASSY, CENTER SEATBACK, LH
main71038-28020i199201-199610
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-28180-B0i199201-199309
GRAY,TRIM1#
main71071-28190-B0i199201-199309
NEWZEALAND SPEC & W(FRONT 3-POINT TYPE *ELR & FABRIC SEAT),GRAY,TRIM1#
main71071-28220-B0i199201-199309
NEWZEALAND SPEC & W(FRONT 3-POINT TYPE *ELR),GRAY,TRIM1#
main71071-28230-B0i199201-199610
GRAY,TRIM1#
main71071-28250-B0i199201-199408
GRAY,TRIM1#
main71071-28260-B0i199201-199610
GRAY,TRIM1#
main71071-28560-B0i199309-199408
CHINA SPEC,GRAY,TRIM1#
main71071-28610-B0i199408-200007
GRAY,TRIM1#
main71071-28650-B0i199408-199508
GRAY,TRIM1#
main71071-28690-B0i199408-199610
W(FABRIC SEAT),GRAY,TRIM1#
main71071-28820-B0i199508-200007
CHINA SPEC,GRAY,TRIM1#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-28170-B0i199201-199309
GRAY,TRIM1#
main71072-28180-B0i199201-199309
NEWZEALAND SPEC & W(FRONT 3-POINT TYPE *ELR & FABRIC SEAT),GRAY,TRIM1#
main71072-28210-B0i199201-199610
GRAY,TRIM1#
main71072-28230-B0i199201-199610
GRAY,TRIM1#
main71072-28240-B0i199201-199610
GRAY,TRIM1#
main71072-28250-B0i199201-199408
GRAY,TRIM1#
main71072-28560-B0i199309-199408
CHINA SPEC,GRAY,TRIM1#
main71072-28600-B0i199408-200007
GRAY,TRIM1#
main71072-28640-B0i199408-199508
GRAY,TRIM1#
main71072-28690-B0i199408-199610
W(FABRIC SEAT),GRAY,TRIM1#
main71072-28810-B0i199508-200007
CHINA SPEC,GRAY,TRIM1#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-28240-B0i199201-199309
GRAY,TRIM1#
main71073-28250-B0i199201-199309
NEWZEALAND SPEC & W(FRONT 3-POINT TYPE *ELR & FABRIC SEAT),GRAY,TRIM1#
main71073-28270-B0i199201-199610
GRAY,TRIM1#
main71073-28280-B0i199201-199610
GRAY,TRIM1#
main71073-28290-B0i199201-199610
GRAY,TRIM1#
main71073-28310-B0i199201-199408
GRAY,TRIM1#
main71073-28490-B0i199309-199408
CHINA SPEC,GRAY,TRIM1#
main71073-28540-B0i199408-200007
GRAY,TRIM1#
main71073-28580-B0i199408-199508
GRAY,TRIM1#
main71073-28630-B0i199408-199610
W(FABRIC SEAT),GRAY,TRIM1#
main71073-28880-B0i199508-200007
CHINA SPEC,GRAY,TRIM1#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-28270-B0i199201-199309
GRAY,TRIM1#
main71074-28280-B0i199201-199309
NEWZEALAND SPEC & W(FRONT 3-POINT TYPE *ELR & FABRIC SEAT),GRAY,TRIM1#
main71074-28320-B0i199201-199610
GRAY,TRIM1#
main71074-28330-B0i199201-199610
GRAY,TRIM1#
main71074-28340-B0i199201-199610
GRAY,TRIM1#
main71074-28350-B0i199201-199610
GRAY,TRIM1#
main71074-28360-B0i199201-199408
GRAY,TRIM1#
main71074-28540-B0i199309-199408
CHINA SPEC,GRAY,TRIM1#
main71074-28610-B0i199408-200007
GRAY,TRIM1#
main71074-28650-B0i199408-199508
GRAY,TRIM1#
main71074-28700-B0i199408-199610
W(FABRIC SEAT),GRAY,TRIM1#
main71074-2J040-B0i199508-200007
CHINA SPEC,GRAY,TRIM1#
71305SFRAME SUB-ASSY, CENTER SEATBACK
main71104-87002i199201-199610
71350SBACK ASSY, FRONT SEAT, CENTER
main71450-28020-B0i199201-199610
***,GRAY,TRIM1#
71395BCOVER, CENTER SEAT HINGE, RH
main71395-87003-B0i199201-199610
GRAY,TRIM1#
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-28180-B0i199201-199309
***,GRAY,TRIM1#
main71410-28190-B0i199201-199309
***,NEWZEALAND SPEC & W(FRONT 3-POINT TYPE *ELR & FABRIC SEAT),GRAY,TRIM1#
main71410-28210-B0i199201-199408
***,GRAY,TRIM1#
main71410-28240-B0i199309-199610
***,W(FRONT 3-POINT TYPE *ELR),GRAY,TRIM1#
main71410-28250-B0i199201-199610
***,GRAY,TRIM1#
main71410-28280-B0i199201-199610
***,GRAY,TRIM1#
main71410-28290-B0i199201-199610
***,W(FRONT 3-POINT TYPE *ELR),GRAY,TRIM1#
main71410-28300-B0i199309-199610
***,GRAY,TRIM1#
main71410-28440-B0i199309-199408
***,CHINA SPEC,GRAY,TRIM1#
main71410-28530-B0i199408-199610
***,W(FABRIC SEAT),GRAY,TRIM1#
main71410-28540-B0i199408-200007
***,GRAY,TRIM1#
main71410-28570-B0i199408-199508
***,CHINA SPEC,GRAY,TRIM1#
main71410-28720-B0i199508-200007
***,CHINA SPEC,GRAY,TRIM1#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-28170-B0i199201-199309
***,GRAY,TRIM1#
main71420-28180-B0i199309-199408
***,W(FABRIC SEAT),GRAY,TRIM1#
main71420-28210-B0i199201-199309
***,NEWZEALAND SPEC & W(FRONT 3-POINT TYPE *ELR),GRAY,TRIM1#
main71420-28220-B0i199201-199408
***,GRAY,TRIM1#
main71420-28230-B0i199201-199610
***,W(FRONT 3-POINT TYPE *ELR),GRAY,TRIM1#
main71420-28240-B0i199201-199610
***,GRAY,TRIM1#
main71420-28270-B0i199201-199408
***,GRAY,TRIM1#
main71420-28290-B0i199201-199610
***,GRAY,TRIM1#
main71420-28300-B0i199201-199610
***,W(FRONT 3-POINT TYPE *ELR),GRAY,TRIM1#
main71420-28430-B0i199309-199408
***,CHINA SPEC,GRAY,TRIM1#
main71420-28510-B0i199408-199610
***,W(FABRIC SEAT),GRAY,TRIM1#
main71420-28520-B0i199408-200007
***,GRAY,TRIM1#
main71420-28560-B0i199408-199508
***,GRAY,TRIM1#
main71420-28570-B0i199408-199508
CHINA SPEC,GRAY,TRIM1#
main71420-28660-B0i199508-199610
***,GRAY,TRIM1#
main71420-28670-B0i199508-200007
***,CHINA SPEC,GRAY,TRIM1#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-28320-B0i199201-199309
***,GRAY,TRIM1#
main71430-28330-B0i199201-199307
***,NEWZEALAND SPEC & W(FRONT 3-POINT TYPE *ELR & FABRIC SEAT),GRAY,TRIM1#
main71430-28350-B0i199201-199610
***,W(SEPARATE TYPE HEADREST),GRAY,TRIM1#
main71430-28360-B0i199307-199309
***,GRAY,TRIM1#
main71430-28370-B0i199201-199610
***,GRAY,TRIM1#
main71430-28380-B0i199201-199610
***,GRAY,TRIM1#
main71430-28600-B0i199309-199408
***,CHINA SPEC,GRAY,TRIM1#
main71430-28610-B0i199309-199408
***,GRAY,TRIM1#
main71430-28660-B0i199309-199408
***,W(FABRIC SEAT),GRAY,TRIM1#
main71430-28740-B0i199408-199610
***,W(FABRIC SEAT),GRAY,TRIM1#
main71430-28750-B0i199408-200007
***,GRAY,TRIM1#
main71430-28780-B0i199408-199508
***,CHINA SPEC,GRAY,TRIM1#
main71430-2J060-B0i199508-199610
***,GRAY,TRIM1#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71440-28270-B0i199201-199309
***,GRAY,TRIM1#
main71440-28320-B0i199201-199610
***,W(SEPARATE TYPE HEADREST),GRAY,TRIM1#
main71440-28330-B0i199201-199307
***,GRAY,TRIM1#
main71440-28340-B0i199201-199610
***,GRAY,TRIM1#
main71440-28350-B0i199201-199610
***,GRAY,TRIM1#
main71440-28380-B0i199201-199610
***,GRAY,TRIM1#
main71440-28420-B0i199201-199309
***,NEWZEALAND SPEC & W(FRONT 3-POINT TYPE *ELR & FABRIC SEAT),GRAY,TRIM1#
main71440-28600-B0i199309-199408
***,CHINA SPEC,GRAY,TRIM1#
main71440-28610-B0i199309-199408
***,GRAY,TRIM1#
main71440-28740-B0i199408-199610
***,W(FABRIC SEAT),GRAY,TRIM1#
main71440-28750-B0i199408-200007
***,GRAY,TRIM1#
main71440-28780-B0i199408-199508
***,CHINA SPEC,GRAY,TRIM1#
main71440-2J020-B0i199508-200007
***,CHINA SPEC,GRAY,TRIM1#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-28060i199201-200007
main71511-28070i199201-199610
main71511-28080i199201-199610
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-28060i199201-199610
main71512-28070i199201-200007
main71512-28080i199201-199610
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-28080i199201-200007
main71551-28090i199201-199610
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-28080i199201-200007
main71552-28090i199201-199610
main71552-28120i199201-199610
71554APAD, FRONT SEATBACK, CENTER
main71554-28010i199201-199610
71587PROTECTOR, FRONT SEATBACK EDGE
main71587-28010-B0i199201-200007
GRAY,TRIM1#
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71630-28110i199201-199307
W(SEPARATE TYPE HEADREST)
main71630-28120i199201-199307
main71630-28140i199201-199307
main71630-28210i199307-199309
main71630-28220i199307-199610
main71630-28240i199307-199610
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71640-28100i199307-199309
main71640-28110i199201-199307
main71640-28120i199201-199307
main71640-28160i199201-199307
main71640-28290i199307-199309
main71640-28310i199307-199610
main71640-28330i199307-199610
main71640-28340i199307-199610
71831DCOVER, FRONT SEAT HINGE, RH
main71831-87003-B0i199201-200007
GRAY,TRIM1#
71832DCOVER, FRONT SEAT HINGE, LH
main71832-87002-B0i199201-200007
GRAY,TRIM1#
72011CADJUSTER SUB-ASSY, FRONT SEAT, RH
main72010-87003i199201-200007
72012CADJUSTER SUB-ASSY, FRONT SEAT, LH
main72020-28040i199201-199610
main72020-28060i199201-200007
72110ATRACK ASSY, FRONT SEAT, OUTER RH
main72110-28040i199201-200007
72130ATRACK ASSY, FRONT SEAT, INNER RH
main72130-28030i199201-199610
main72130-28040i199201-199610
main72130-28050i199201-200007
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
main72525-28020-B0i199201-200007
GRAY,TRIM1#
72526HANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-28020-B0i199201-200007
GRAY,TRIM1#
72991COVER, FRONT SEAT CUSHION, RH
main72991-28040-B1i199201-200007
GRAY,TRIM1#
main72991-28060-B0i199201-199610
GRAY,TRIM1#
7161287401PAD, REAR SEAT CUSHION, FRONT LH(FOR SEPARATE TYPE)
main71612-87401
7181287401CLIP (FOR FRONT SEAT CUSHION COVER)
main71812-87401
9010910057
main90109-10057
9011908421
main90119-08421
9011908520
main90119-08520
9011910116
main90119-10116
9011910310
main90119-10310
9015950120
main90159-50120
9017908039
main90179-08039
9038610028
main90386-10028
9038612018
main90386-12018
9038612052
main90386-12052
9161160820
main91611-60820
9324954006
main93249-54006
9326955008
main93269-55008
9616000900
main96160-00900

49 parts on this diagram · 9 diagrams in section
