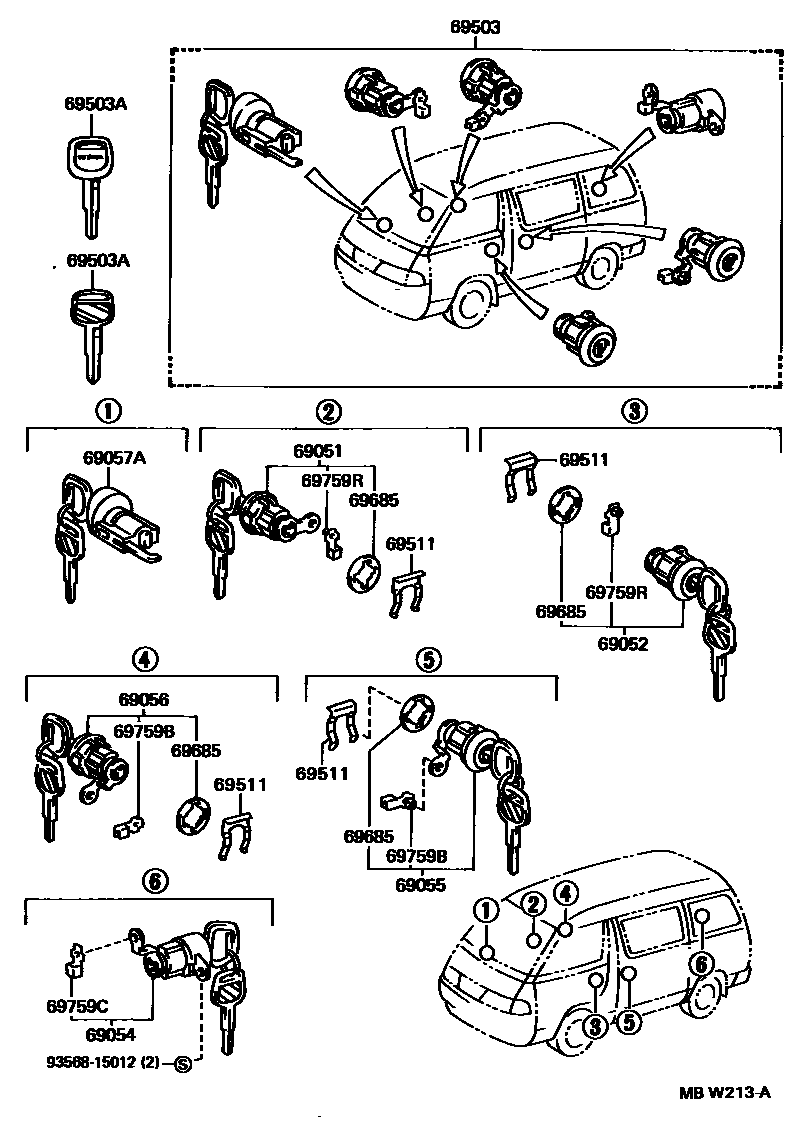

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-28050iYR22,39..02S,08S199201-199610

main69051-28060iYR39..05S;CR27,KR2#,YR21199201-200007

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-28050iYR22,39..02S,08S199201-199610

main69052-28060iYR39..05S;CR27,KR2#,YR21199201-200007

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-28050iYR22,39..02S,08S199201-199610

main69055-28060iYR39..05S;CR27,KR2#,YR21199201-200007

69055CYLINDER & KEY SET, REAR DOOR LOCK, LH

main69054-28040iYR22,39..02S,08S199201-199610

main69054-28050iCR27..RHD;YR39..05S;KR27..02S,03S,06S199201-199610

69056CYLINDER & KEY SET, REAR DOOR LOCK, RH

main69053-28050iKR27,YR39..5D;CR27,KR2#,YR21..LHD..4D199201-200007

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-28050iYR22,39..02S,08S199201-199610

main69057-28060iYR39..05S;CR27,KR2#,YR21199201-200007

69503CYLINDER SET, LOCK

main69005-28190iCR27,KR2#,YR21..LHD..4D199201-200007

main69005-28200iYR22,39..02S,08S199201-199610

main69005-28210iKR27,YR39..5D199201-199610

main69005-28240iYR39..4D..05S;CR27,KR27..RHD..4D199201-199610

69503AKEY, BLANK

main90999-00166iCR27,KR2#,YR2#,39199201-200007

MASTER KEY,W(*68)

main90999-00167iCR27,KR2#,YR2#,39199201-200007

MASTER KEY

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69512-87001×4iKR27,YR39..5D199201-199610

69685PAD, LOCK CYLINDER

main69513-87001×4iKR27,YR39..5D199201-199610

69759BSNAP, REAR DOOR LOCK CYLINDER

main69759-30040iCR27,KR2#,YR21..LHD..4D; KR27,YR39..5D199201-200007

BEIGE

main69759-30050iCR27,KR27,YR22,39..RHD..4D; KR27,YR39..5D199201-199610

YELLOWISH GREEN

69759CSNAP, BACK DOOR LOCK CYLINDER

main69759-30050iCR27,KR2#,YR2#,39199201-200007

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-30040iCR27,KR2#,YR2#,39199201-200007

BEIGE

main69759-30050iCR27,KR2#,YR2#,39199201-200007

YELLOWISH GREEN

9356815012

main93568-15012

14 parts on this diagram · 1 diagram in section
