INSIDE TRIM BOARD
58076COVER SUB-ASSY, JACK BOX HOLE
GRAY,TRIM1#
NEWZEALAND SPEC & W/O(REAR NO.1 SEAT) OR NEWZEALAND SPEC & W(REAR NO1 SEAT BELT),GRAY,TRIM1#
NEWZEALAND SPEC & W(REAR NO.1 SEAT BELT) OR W/O(REAR NO.1 SEAT),GRAY,TRIM1#
NEWZEALAND SPEC & W(REAR NO.1 SEAT BELT),GRAY,TRIM1#
62111BCLIP(FOR COWL SIDE TRIM)
62111CBOARD, COWL SIDE TRIM, RH
GRAY,TRIM1#
62112BOARD, COWL SIDE TRIM, LH
GRAY,TRIM1#
62211GARNISH, FRONT PILLAR, RH
LIGHT GRAY,TRIM1#
LIGHT GRAY,TRIM1#
LIGHT GRAY,TRIM1#
62212GARNISH, FRONT PILLAR, LH
LIGHT GRAY,TRIM1#
LIGHT GRAY,TRIM1#
LIGHT GRAY,TRIM1#
62314DTRIM, FRONT DOOR OPENING, LH
LIGHT GRAY,TRIM1#
LIGHT GRAY,TRIM1#
GRAY,TRIM1#
62334ATRIM, REAR DOOR OPENING, LH
LIGHT GRAY,TRIM1#
62411BGARNISH, CENTER PILLAR, UPPER RH
LIGHT GRAY,TRIM1#
LIGHT GRAY,TRIM1#
W(DUAL AIR CONDITIONER),LIGHT GRAY,TRIM1#
LIGHT GRAY,TRIM1#
62412BGARNISH, CENTER PILLAR, UPPER LH
LIGHT GRAY,TRIM1#
LIGHT GRAY,TRIM1#
LIGHT GRAY,TRIM1#
62414AGARNISH, CENTER PILLAR, LOWER LH
LIGHT GRAY,TRIM1#
GRAY,TRIM1#
LIGHT GRAY,TRIM1#
62471BCOVER, REAR PILLAR, RH
LIGHT GRAY,TRIM1#
CHINA SPEC,LIGHT GRAY,TRIM1#
62471CCLIP(FOR REAR PILLAR COVER)
LIGHT GRAY,TRIM1#
CHINA SPEC,LIGHT GRAY,TRIM1#
62472BCOVER, REAR PILLAR, LH
LIGHT GRAY,TRIM1#
CHINA SPEC,LIGHT GRAY,TRIM1#
62473ABOARD, REAR PILLAR, RH
62474ABOARD, REAR PILLAR, LH
62638AGARNISH, QUARTER PILLAR, RH
LIGHT GRAY,TRIM1#
W(REAR NO.1 SEAT BELT),LIGHT GRAY,TRIM1#
CHINA SPEC,LIGHT GRAY,TRIM1#
LIGHT GRAY,TRIM1#
LIGHT GRAY,TRIM1#
62639AGARNISH, QUARTER PILLAR, LH
LIGHT GRAY,TRIM1#
CHINA SPEC,LIGHT GRAY,TRIM1#
W(REAR NO.1 SEAT BELT),LIGHT GRAY,TRIM1#
LIGHT GRAY,TRIM1#
LIGHT GRAY,TRIM1#
6777113020WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-13020
9018906018
main90189-06018
9046710143
main90467-10143
9046710144
main90467-10144
9046805077
main90468-05077
9354056020
main93540-56020

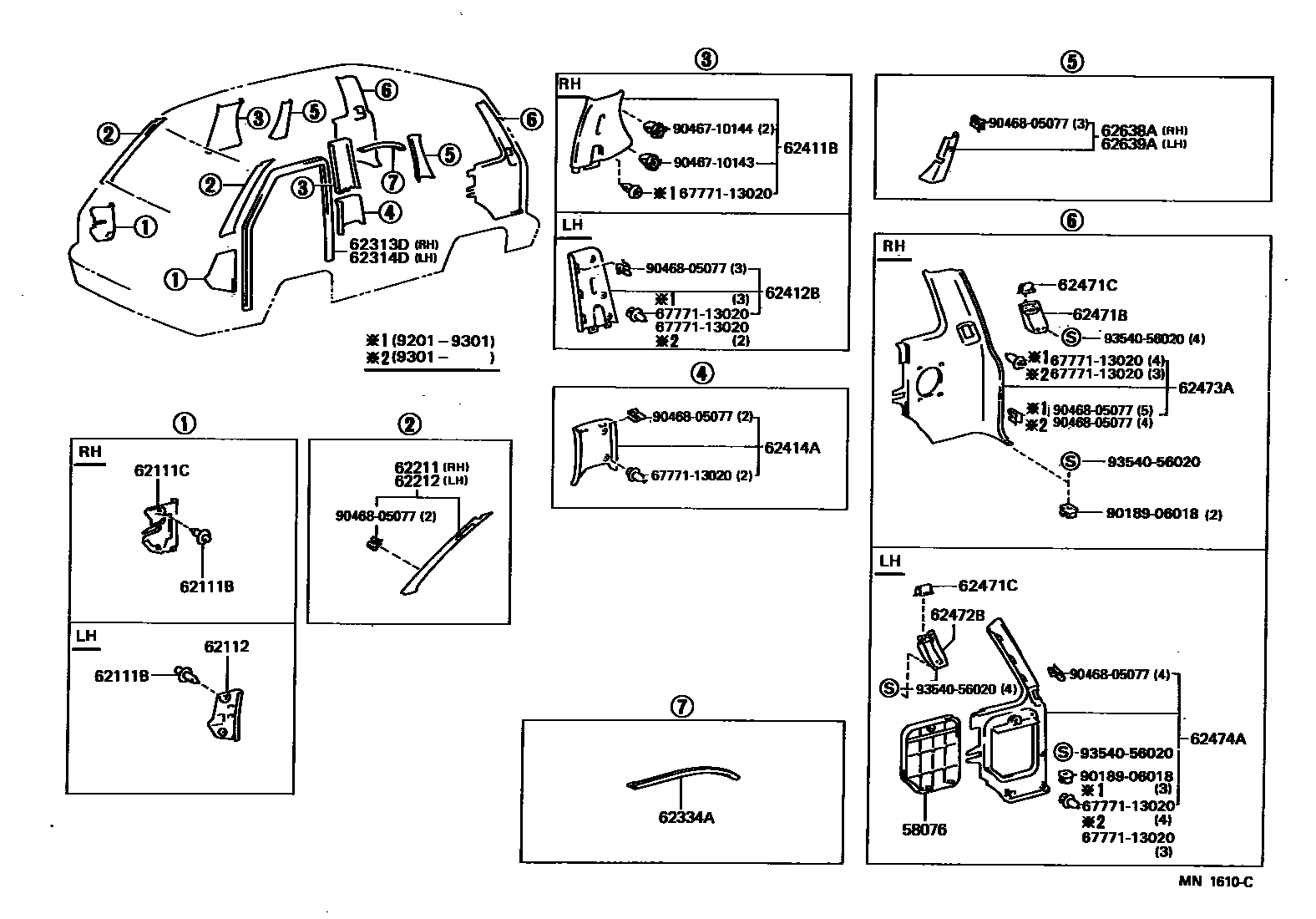

25 parts on this diagram · 7 diagrams in section
