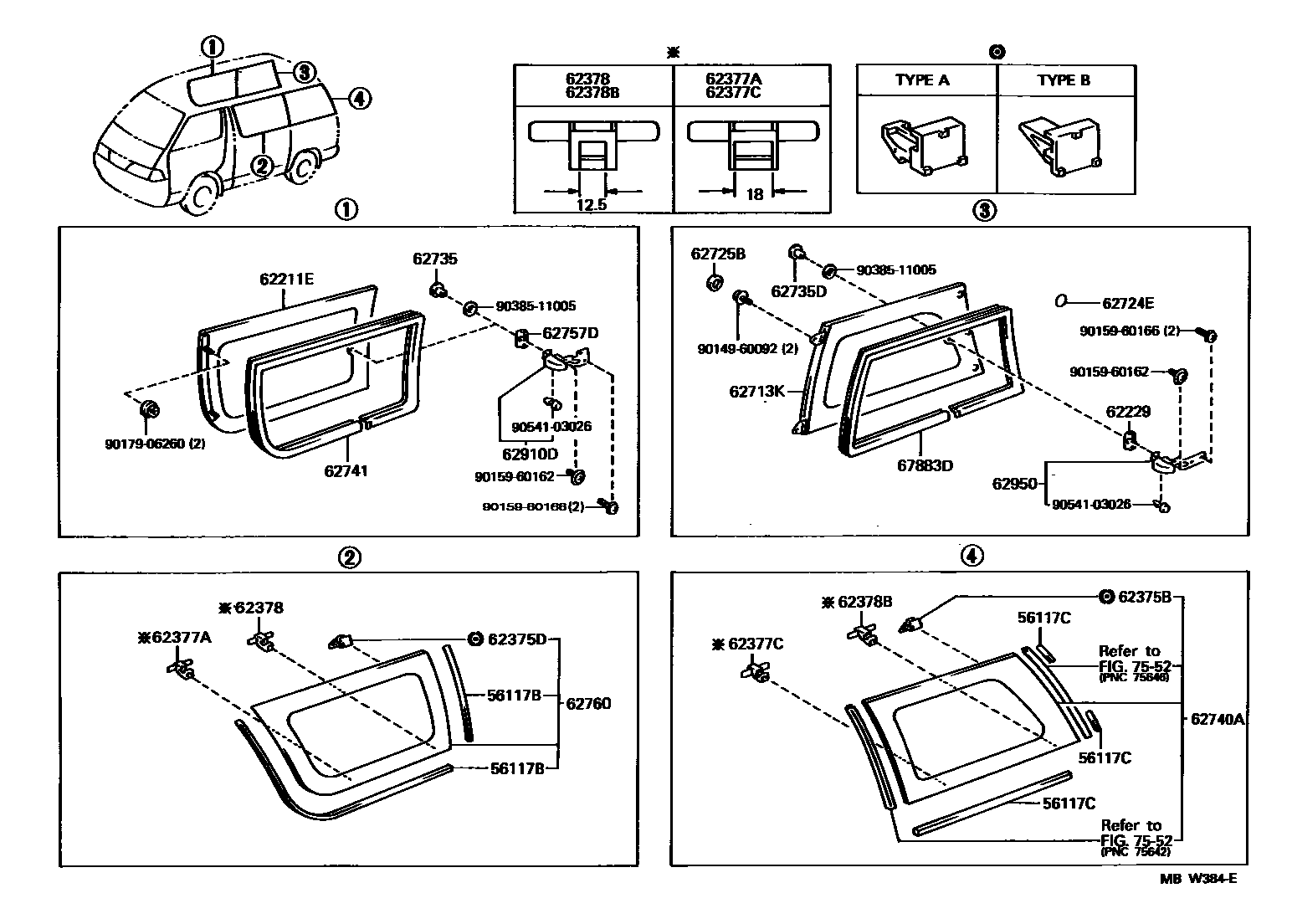

SIDE WINDOW
56117BDAM, WINDOW GLASS ADHESIVE(FOR SLIDE DOOR)
L=1450
56117CDAM, WINDOW GLASS ADHESIVE(FOR REAR SIDE)
L=1450
62211EGLASS, SIDE WINDOW, REAR RH
*TEM,T=4.0,BLUE
*TEM,T=4.0
*TEM,T=3.5
62229PACKING, SIDE WINDOW
14 X 14 X 20
10X10X20
10X10X15
7 X 8 X 50
62375BCLIP, SIDE WINDOW, NO.1
TYPE A
TYPE B
62375DCLIP, SIDE WINDOW, NO.1
TYPE A
TYPE B
62377ACLIP, SIDE WINDOW, NO.3
62377CCLIP, SIDE WINDOW, NO.3
62378CLIP, DOOR WINDOW GLASS
62378BCLIP, SIDE WINDOW, NO.4
62713KGLASS, SIDE WINDOW, REAR RH
*TEM,T=4.0,BLUE
*TEM,T=4.0
*TEM,T=4.0
*TEM,T=3.5
*TEM,T=3.5,BLUE
*TEM,T=4.0,BLUE
62724ESTOP, SIDE REAR WINDOW GLASS, RH
62725BSTOP, SIDE WINDOW GLASS, REAR NO.1
62735RETAINER, QUARTER WINDOW HINGE
62735DRETAINER, SIDE REAR WINDOW HINGE, RH
62740AWINDOW ASSY, SIDE, REAR LH
*TEM,T=3.5,BLUE
*TEM,T=3.5
62741WEATHERSTRIP, QUARTER WINDOW, RH
62757DPROTECTOR, SIDE WINDOW GLASS
62760WINDOW ASSY, SLIDE DOOR, LH
*TEM,T=3.5
*TEM,T=3.5,BLUE
62910DLOCK ASSY, QUARTER WINDOW
LIGHT GRAY,TRIM1#
62950LOCK ASSY, SIDE REAR WINDOW
LIGHT GRAY,TRIM1#
LIGHT GRAY,TRIM1#
67883DWEATHERSTRIP, QUARTER WINDOW, REAR
7552
9014960092
main90149-60092
9015960162
main90159-60162
9015960166
main90159-60166
9017906260
main90179-06260
9038511005
main90385-11005
9054103026
main90541-03026
29 parts on this diagram · 6 diagrams in section
