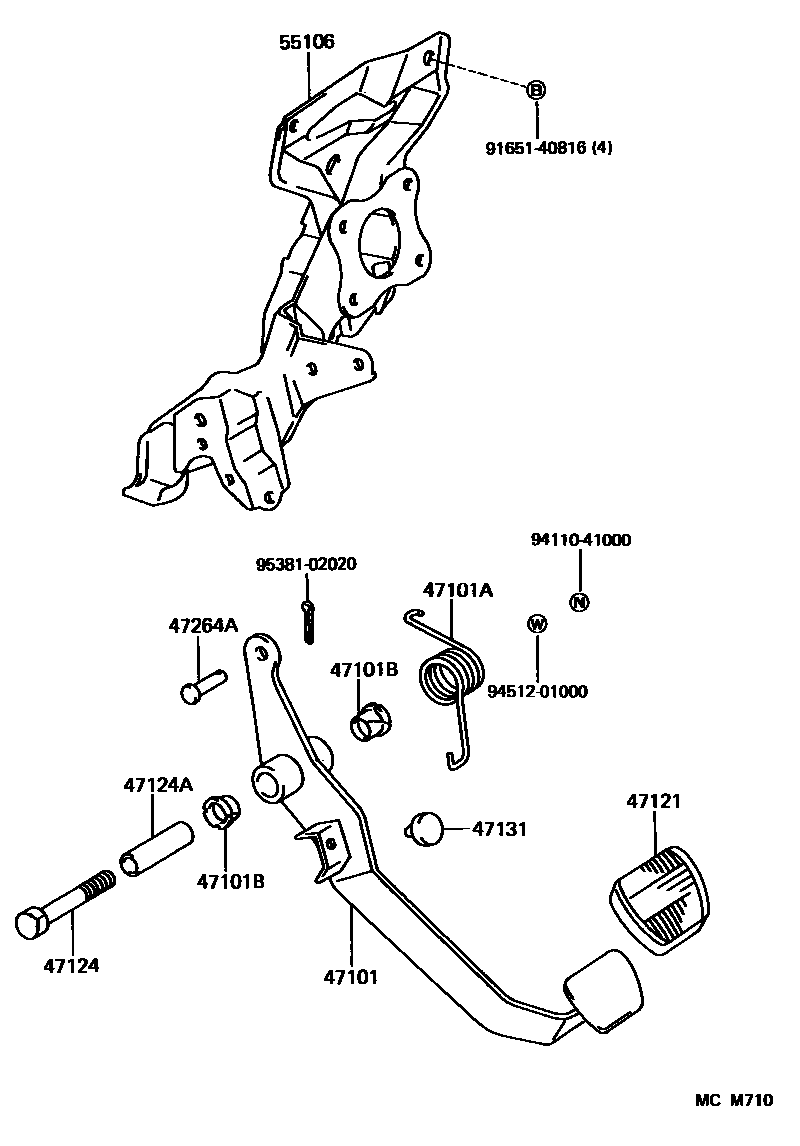

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-28070iCR27,KR2#,YR2#,39199201-200007

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-35131iCR27,KR2#,YR2#,39199201-200007

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007×2iCR27,KR2#,YR2#,39199201-200007

47121PAD, BRAKE PEDAL

main31321-14020iCR27,KR2#,YR2#,39199201-200007

47124SHAFT, BRAKE PEDAL

main91121-51070iCR27,KR2#,YR2#,39199201-200007

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iCR27,KR2#,YR2#,39199201-200007

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iCR27,KR2#,YR2#,39199201-200007

47264APIN(FOR PUSH ROD)

main90240-08070iCR27,KR2#,YR2#,39199201-200007

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-28130iCR27,KR27,YR22,39..RHD..MTM199201-199610

main55106-28140iYR22,39..ATM199201-199610

main55106-28150iCR27,KR2#,YR21..LHD199201-200007

9165140816

main91651-40816

9411041000

main94110-41000

9451201000

main94512-01000

9538102020

main95381-02020

13 parts on this diagram · 1 diagram in section
