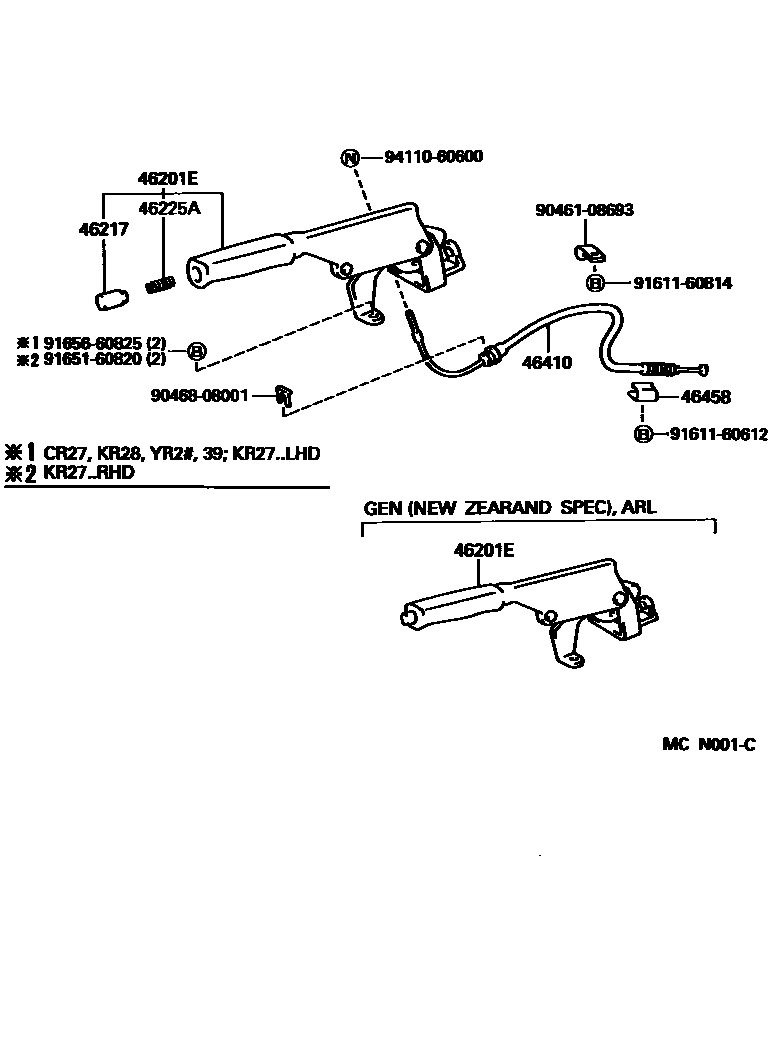

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-28110-B0iKR27..RHD199201-199610

GRAY,TRIM1#

main46201-28120-B0iCR27,KR2#,YR21..02S,05S,08S199201-199210

GRAY,TRIM1#

main46201-28140-B0iYR22,39..STD..(02S,08S); YR39..05S199201-199610

GRAY,TRIM1#; NEW ZEALAND SPEC,GRAY,TRIM1#

main46201-28150-B0iYR22..DX199201-199309

GRAY,TRIM1#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-12020-B3iCR27,KR2#,YR21199201-199803

BLUISH GRAY,TRIM1#

main46217-16030-B1iYR21199803-200007

BLUISH GRAY,BLUISH GRAY,TRIM1#

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10132iYR39..05S;CR27,KR2#,YR21199201-200007

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-28140iKR27..RHD199201-199610

main46410-28150iYR22,39199201-199610

main46410-28160iCR27..RHD199201-199610

main46410-28180iKR2#,YR21..LHD199201-200007

main46410-28190iCR27..LHD199201-199610

46458RETAINER, CABLE

main46458-28010iCR27,KR2#,YR2#,39199201-200007

9046108693

main90461-08693

9046808001

main90468-08001

9161160612

main91611-60612

9161160814

main91611-60814

9165160820

main91651-60820

9165660825

main91656-60825

9411060600

main94110-60600

12 parts on this diagram · 3 diagrams in section
