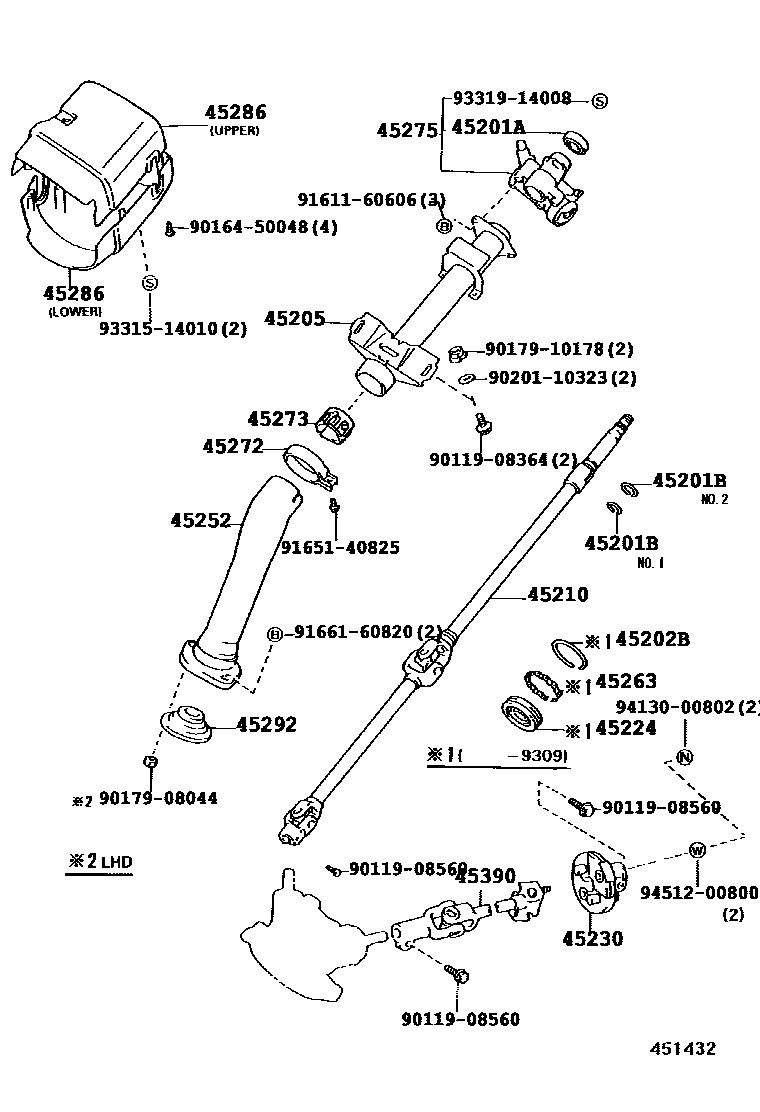

STEERING COLUMN & SHAFT

0001 1RIGID STEERING 0002 1TILT STEERING 0003 1TILT STEERING 0004 1TILT STEERING 0005 1

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18001iYR22,39..STD199201-199610

W(TILT STEERING),UPR

main90363-18038iCR27,KR2#,YR22,39..STD199201-199610

main90363-28001iYR22,39..STD199201-199610

W(TILT STEERING),LWR

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iCR27,KR2#,YR2#,39199201-200007

T=1.20,NO.1

main90520-17269iCR27,KR2#,YR22,39..STD199201-199610

T=1.20,NO.2

45202BRING, SHAFT SNAP(FOR STEERING INTERMEDIATE SHAFT)

main96152-00300iCR27,KR2#,YR2#,39199201-199309

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-28060iCR27,KR2#,YR22,39..STD199201-199309

main45205-28070iYR2#..DX; YR22,39..STD199201-199309

W(TILT STEERING)

main45205-28140iYR22,39199309-199610

W(TILT STEERING)

main45205-28150iCR27,KR2#,YR22,39199309-199610

45210SHAFT ASSY, STEERING MAIN

main45210-22050iYR2#..DX; YR22,39..STD199201-199309

W(TILT STEERING)

main45210-22120iYR22,39199309-199610

W(TILT STEERING)

main45210-28060iCR27,KR27,YR22,39..RHD..STD199201-199212

main45210-28061iCR27,KR2#,YR22,39..STD199212-199309

main45210-28070iCR27,KR2#..LHD199201-199212

main45210-28100iCR27,KR2#,YR22,39199309-199610

45224BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING)

main45225-26010iCR27,KR2#,YR2#,39199201-199309

L=16

45230COUPLING ASSY, FLEXIBLE

main45230-28020iYR22..STD;CR27,KR2#,YR21,39199201-200007

main45230-28030iYR22..DX199201-199309

45252TUBE, STEERING COLUMN, LOWER

main45252-28070iCR27,KR27,YR22,39..RHD199201-199610

main45252-28130iCR27,KR2#,YR21..LHD199201-200007

45263RING, STEERING COLUMN, NO.1

main45263-32010iCR27,KR2#,YR2#,39199201-199309

45272CLAMP, STEERING COLUMN, LOWER

main45272-28030iCR27,KR2#,YR2#,39199201-200007

45273BUSH, STEERING MAIN SHAFT

main45273-28010iCR27,KR2#,YR2#,39199309-200007

45275BRACKET, STEERING COLUMN, UPPER

main45280-28081iCR27,KR2#..LHD199201-199610

main45280-28090iYR22,39199201-199610

W(TILT STEERING)

main45280-28210iCR27,KR27,YR22,39..RHD..STD199201-199610

main45280-35171iYR21199305-200007

45286COVER, STEERING COLUMN

main45286-28300-B0iYR22,39..STD199201-199610

W(TILT STEERING),GRAY,TRIM1#,UPR

main45286-28310-B0iCR27,KR27,YR22,39..RHD..STD199201-199610

GRAY,TRIM1#,UPR

main45286-28320-B0iYR21199201-200007

GRAY,TRIM1#,UPR

main45286-28330-B0iCR27,KR2#..LHD199201-199610

GRAY,TRIM1#,UPR

main45287-28300-B0iYR22,39..STD199201-199610

W(TILT STEERING),GRAY,TRIM1#,LWR

main45287-28310-B0iCR27,KR27,YR22,39..RHD..STD199201-199610

GRAY,TRIM1#,LWR

main45287-28320-B0iYR21199201-200007

GRAY,TRIM1#,LWR

main45287-28330-B0iCR27,KR2#..LHD199201-199610

GRAY,TRIM1#,LWR

45292SEAL, MAIN SHAFT LOWER DUST

main45292-28030iCR27,KR2#,YR2#,39199201-200007

45390SHAFT ASSY, STEERING TORQUE

main45390-28040iYR22..STD;CR27,KR2#,YR21,39199201-200007

main45390-28050iYR22..DX199201-199309

9011908364

main90119-08364

9011908560

main90119-08560

9016450048

main90164-50048

9017908044

main90179-08044

9017910178

main90179-10178

9020110323

main90201-10323

9161160606

main91611-60606

9165140825

main91651-40825

9166160820

main91661-60820

9331514010

main93315-14010

9331914008

main93319-14008

9413000802

main94130-00802

9451200800

main94512-00800

28 parts on this diagram · 5 diagrams in section
