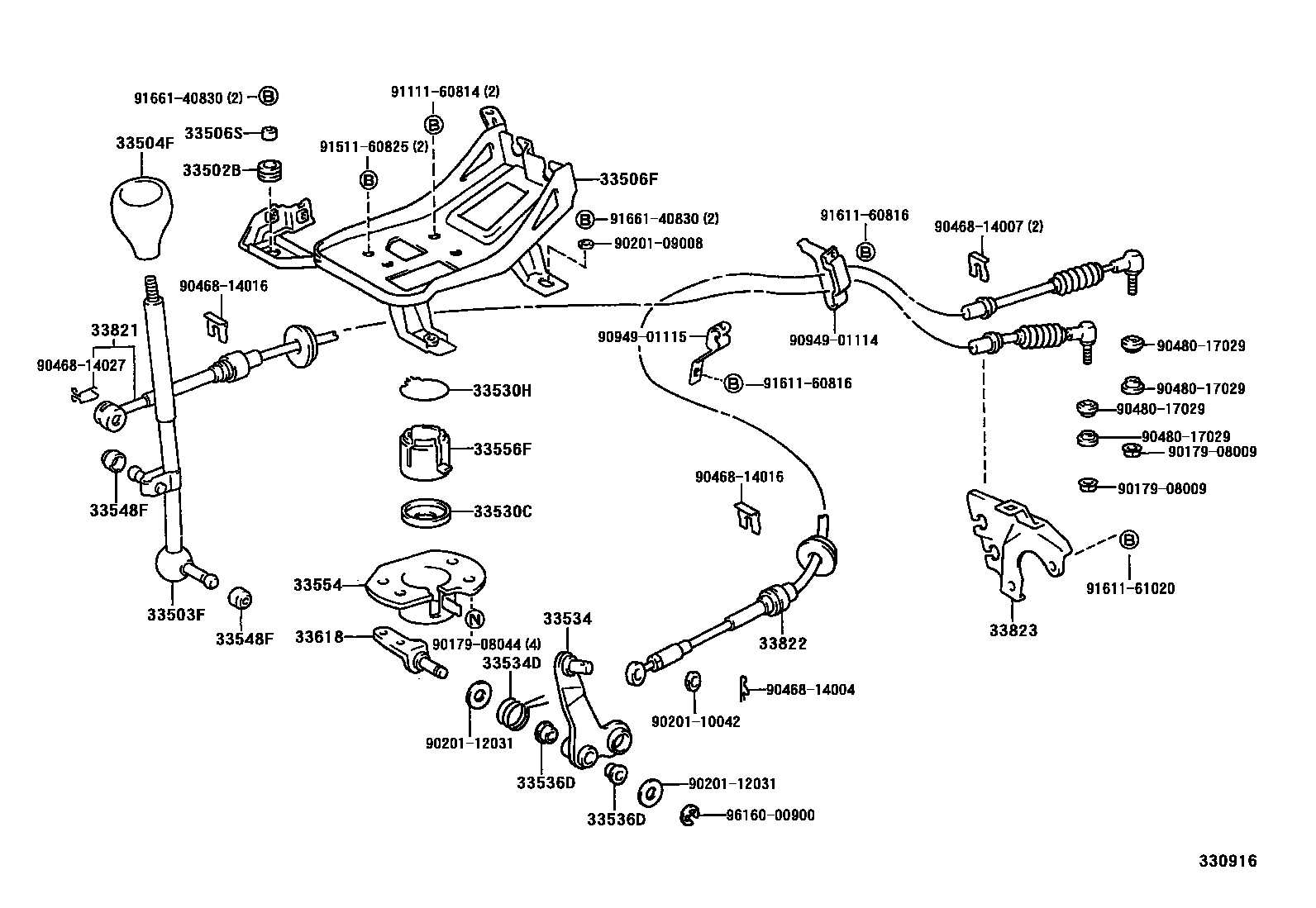

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33502PLATE SUB-ASSY, SHIFT LEVER

main33502-28081iYR22,39..ATM199201-199610

33502BGROMMET (FOR SHIFT LEVER PLATE)

main90480-13012×4iCR27,KR2#,YR2#,39199201-200007

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-28010iCR27,KR2#,YR21..LHD199201-200007

main33055-28150iKR27..RHD199201-199610

main33055-28160iYR22,39..ATM199201-199610

main33501-28070iCR27,YR22,39..RHD..MTM199201-199610

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-14070-B1iCR27,KR2#;YR39..05S199201-199610

GRAY,TRIM1#

main33504-24010-48iCR27,KR27..RHD..(05S,06S); YR2#,39..MTM..(02S,08S); YR39..05S199201-199309

GRAY,TRIM1#; HONG KONG SPEC,GRAY,TRIM1#; NEW ZEALAND SPEC,GRAY,TRIM1#

main33504-35030-B1iYR2#,39..MTM..(02S,08S)199309-200007

BLUISH GRAY,TRIM1#

main33542-20080-23iYR22,39..ATM199201-199610

GRAY,TRIM1#

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-28140iCR27,KR2#,YR21..LHD199201-200007

main33506-28151iCR27,YR22,39..RHD..MTM199201-199610

main33506-28180iKR27..RHD199201-199610

33506SCOLLAR, NO.1(FOR CONTROL SHIFT LEVER RETAINER)

main90387-09011×4iCR27,KR2#,YR2#,39..MTM199211-200007

main90387-09038×4iKR27..RHD199201-199211

33530CBUSH (FOR SHIFT LEVER)

main90385-24001iCR27,KR2#,YR2#,39..MTM..(02S,05S,08S)199201-200007

33530HRING, SNAP (FOR SHIFT LEVER)

main90520-34002iCR27,KR2#,YR2#,39..MTM..(02S,05S,08S)199201-199202

main90520-36018iCR27,KR2#,YR2#,39..MTM..(02S,05S,08S)199202-200007

33534BELLCRANK, SELECTING

main33534-28050iCR27,KR2#,YR2#,39..MTM..(02S,05S,08S)199201-200007

main33534-28080iKR27..RHD199201-199610

33534DSPRING, TORSION (FOR SELECTING BELLCRANK NO.1)

main90508-28001iCR27,KR2#,YR2#,39..MTM..(02S,05S,08S)199201-200007

33536DBUSH, CONTROL SELECT LEVER SHAFT (FOR FLOOR SHIFT)

main90386-12013×2iCR27,KR2#,YR2#,39..MTM..(02S,05S,08S)199201-199302

main90386-12034×2iCR27,KR2#,YR2#,39..MTM..(02S,05S,08S)199302-200007

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-12021×2iCR27,KR2#,YR2#,39..MTM199201-200007

33554CAP, SHIFT LEVER

main33554-28060iCR27,KR2#,YR2#,39..MTM..(02S,05S,08S)199201-200007

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-20020iCR27,KR2#,YR2#,39..MTM..(02S,05S,08S)199201-200007

33618SUPPORT, SELECTING BELLCRANK, NO.1

main33618-28030iCR27,KR2#,YR2#,39..MTM..(02S,05S,08S)199201-200007

33821CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)

main33821-28061iCR27,YR2#,39..MTM199201-200007

main33821-28130iKR2#..LHD199201-199610

main33821-28140iKR27..RHD199201-199610

33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)

main33822-28061iCR27,YR2#,39..MTM199201-200007

main33822-28130iKR2#..LHD199201-199610

main33822-28140iKR27..RHD199201-199610

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-28010iYR22,39..ATM199201-199610

main33823-28020iYR2#,39..MTM199201-200007

main33823-28032iCR27199201-199610

main33823-28140iKR2#..LHD199201-199610

main33823-28150iKR27..RHD199201-199610

9017908009

main90179-08009

9017908044

main90179-08044

9020109008

main90201-09008

9020110042

main90201-10042

9020112031

main90201-12031

9046814004

main90468-14004

9046814007

main90468-14007

9046814016

main90468-14016

9046814027

main90468-14027

9048017029

main90480-17029

9094901114

main90949-01114

9094901115

main90949-01115

9111160814

main91111-60814

9151160825

main91511-60825

9161160816

main91611-60816

9161161020

main91611-61020

9166140830

main91661-40830

9616000900

main96160-00900

36 parts on this diagram · 3 diagrams in section
