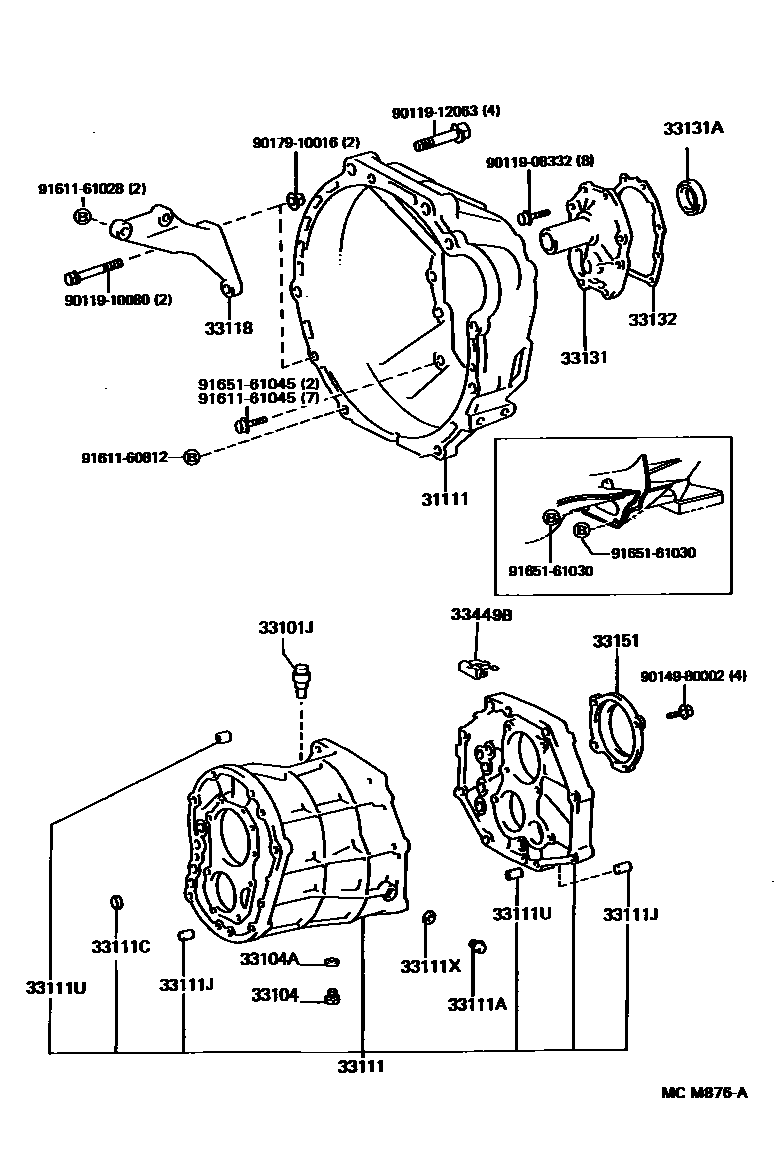

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31111HOUSING, CLUTCH
33101JPLUG, BREATHER
33104PLUG SUB-ASSY, DRAIN(MTM)
L=11,OD=24.5
OD=26
OD=26
OD=26
OD=24
33104AGASKET, DRAIN PLUG(MTM)
33111CASE, MANUAL TRANSMISSION
sub33101-26060
33111APLUG, MANUAL TRANSMISSION CASE
33111CPLUG(FOR TRANSMISSION CASE)
OD=14
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
L=16,OD=12
33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)
L=11,OD=11
L=14,OD=15
33111XGASKET, TRANSMISSION CASE PLUG
33118PLATE, STIFFENER, RH(MTM)
33131RETAINER, BEARING, FRONT(MTM)
33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
33132GASKET, FRONT BEARING RETAINER(MTM)
33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33449BMAGNET, TRANSMISSION
9011908332
main90119-08332
9011910080
main90119-10080
9011912063
main90119-12063
9014980002
main90149-80002
9017910016
main90179-10016
9161160812
main91611-60812
9161161028
main91611-61028
9161161045
main91611-61045
9165161030
main91651-61030
9165161045
main91651-61045
26 parts on this diagram · 3 diagrams in section
