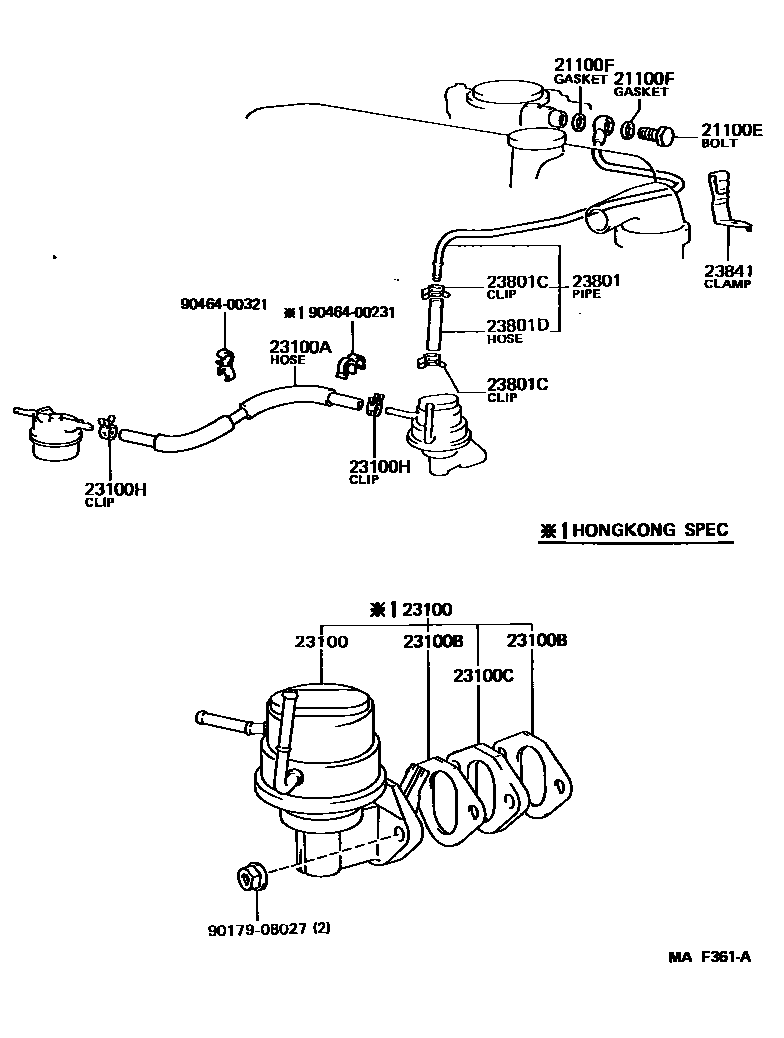

FUEL PUMP & PIPE

0001 1 0002 1

21100EBOLT, CARBURETOR TO CARBURETOR HOSE UNION

main90401-12097i5K..KR2#199201-199610

21100FGASKET, CARBURETOR TO CARBURETOR HOSE UNION BOLT

main90430-12005×2i5K..KR2#199201-199610

23100PUMP ASSY, FUEL

main23100-13111i5K..KR2#199201-199610

main23100-19236i5K..KR27..06S199201-199610

HONG KONG SPEC

main23100-73031i3Y#..YR21,39199201-200007

23100AHOSE, FUEL

main90447-12081i3Y#..YR21,39199201-200007

main95333-06040i5K..KR2#199201-199610

23100BGASKET, FUEL PUMP

main90923-05021i5K..KR2#; 5K..KR2#..02S,03S,05S,08S; 5K..KR27..06S199201-199610

W(AIR CONDITIONER)

main90923-05022×2i3Y#..YR21,39199201-199707

23100CINSULATOR, FUEL PUMP

main90923-06014i3Y#..YR21,39199201-199707

main90923-06015i5K..KR2#199201-199610

main90923-06018i3Y..YR21199707-200007

23100HCLIP(FOR FUEL HOSE)

main96132-30600×2i3Y#..YR21,39; 5K..KR2#199201-200007

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23801-13140i5K..KR2#199201-199610

main23811-71011i3Y#..YR21,39199201-200007

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96132-30600×2i5K..KR2#199201-199610

23801DHOSE, FUEL PIPE, NO.1

main90447-12093i5K..KR2#199201-199305

L=160

main90910-05225i3Y..YR21199912-200007

main95333-06010i3Y#..YR21,39199201-199912

L=100

main95333-06020i5K..KR2#199305-199610

L=200

23841CLAMP, FUEL PIPE(HOSE), NO.1

main23841-13020i5K..KR2#199201-199610

9017908027

main90179-08027

9046400231

main90464-00231

9046400321

main90464-00321

14 parts on this diagram · 2 diagrams in section
