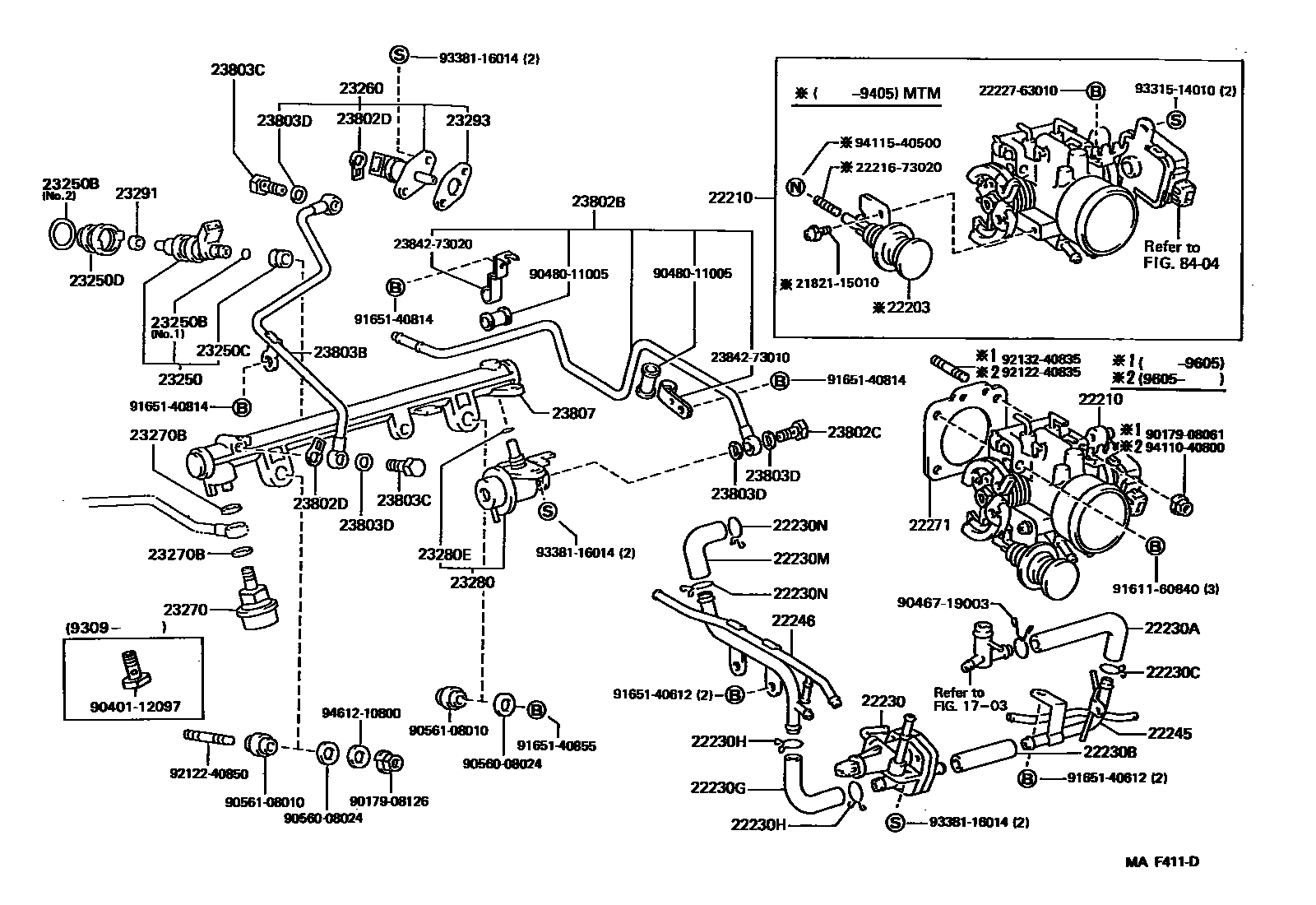

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

1703AIR CLEANER

→ Go to FIG 17-03

22203DASH POT SUB-ASSY(FOR THROTTLE BODY)

main22202-73022i4YEC..YR22..MTM199201-199405

22210BODY ASSY, THROTTLE

main22210-73070i4YEC..YR22..MTM199201-199405

main22210-73080i4YEC..YR22..ATM199201-199405

main22210-73081i4YEC..YR22199405-199610

22230VALVE ASSY, AUXILIARY AIR

main22230-73011i4YEC..YR22199201-199610

22230AHOSE, AUXILIARY AIR VALVE, NO.1

main22233-73010i4YEC..YR22199201-199610

22230BHOSE, AUXILIARY AIR VALVE, NO.2

main90445-21008i4YEC..YR22199201-199610

22230CCLIP, AUXILIARY AIR VALVE HOSE, NO.1

main90467-19003i4YEC..YR22199201-199610

22230GHOSE, AUXILIARY AIR VALVE, NO.3

main22236-73011i4YEC..YR22199201-199610

22230HCLIP, AUXILIARY AIR VALVE HOSE, NO.3

main90467-19003×2i4YEC..YR22199201-199610

22230MHOSE, AUXILIARY AIR VALVE, NO.4

main22237-73010i4YEC..YR22199201-199610

22230NCLIP, AUXILIARY AIR VALVE, NO.4

main90467-19003×2i4YEC..YR22199201-199610

22245PIPE, AUXILIARY AIR, NO.2

main22245-73011i4YEC..YR22199201-199610

22246PIPE, AUXILIARY AIR, NO.3

main22246-73012i4YEC..YR22199201-199610

22271GASKET, THROTTLE BODY

main22271-73011i4YEC..YR22199201-199610

23250INJECTOR ASSY, FUEL

main23209-45011×4i4YEC..YR22199201-199408

main23209-73010×4i4YEC..YR22199408-199610

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001×4i4YEC..YR22199201-199610

NO.1

main90301-23004×4i4YEC..YR22199201-199610

NO.2

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005×4i4YEC..YR22199201-199610

23250DSPACER(FOR FUEL INJECTOR)

main90561-10002×4i4YEC..YR22199201-199610

23260INJECTOR ASSY, COLD START FUEL

main23260-79085i4YEC..YR22199201-199610

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-73010i4YEC..YR22199201-199309

23270BGASKET(FOR PULSATION DAMPER HOSE)

main23232-28010i4YEC..YR22199201-199209

DAMPER SIDE

main23232-41081i4YEC..YR22199209-199309

DAMPER SIDE

main90430-12005i4YEC..YR22199201-199209

DELIVERY PIPE SIDE

main90430-12026i4YEC..YR22199209-199309

DELIVERY PIPE SIDE

23280REGULATOR ASSY, FUEL PRESSURE

main23280-73030i4YEC..YR22199201-199405

main23280-73040i4YEC..YR22199405-199610

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07001i4YEC..YR22199201-199610

23291INSULATOR, INJECTOR VIBRATION

main23291-73010×4i4YEC..YR22199201-199610

23293GASKET, COLD START INJECTOR

main23293-73011i4YEC..YR22199201-199610

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-73020i4YEC..YR22199201-199610

23802CBOLT, UNION(FOR FUEL PIPE NO.2)

main90401-08003i4YEC..YR22199209-199610

main90401-08004i4YEC..YR22199201-199209

23802DGASKET(FOR FUEL PIPE NO.2)

main90430-08011×2i4YEC..YR22199201-199209

main90430-08015×2i4YEC..YR22199209-199405

23803BPIPE SUB-ASSY, FUEL, NO.3

main23803-73011i4YEC..YR22199201-199610

23803CGASKET(NOZZLE LEKAGE PIPE NO.3)

main90401-08003×2i4YEC..YR22199209-199610

main90401-08004×2i4YEC..YR22199201-199209

23803DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)

main90430-08009×4i4YEC..YR22199201-199209

main90430-08014×4i4YEC..YR22199209-199405

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-73010i4YEC..YR22199201-199610

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

2182115010SCREW, 2ND THROTTLE VALVE SET

main21821-15010

2221673020SCREW, DASH POT ADJUSTING

main22216-73020

2222763010

main22227-63010

2384273010CLAMP, FUEL PIPE(HOSE), NO.2

main23842-73010

2384273020CLAMP, FUEL PIPE(HOSE), NO.2

main23842-73020

9017908061

main90179-08061

9017908126

main90179-08126

9040112097

main90401-12097

9046719003

main90467-19003

9048011005

main90480-11005

9056008024

main90560-08024

9056108010

main90561-08010

9161160840

main91611-60840

9165140612

main91651-40612

9165140814

main91651-40814

9165140855

main91651-40855

9212240835

main92122-40835

9212240850

main92122-40850

9213240835

main92132-40835

9331514010

main93315-14010

9338116014

main93381-16014

9411040800

main94110-40800

9411540500

main94115-40500

9461210800

main94612-10800

57 parts on this diagram · 3 diagrams in section
