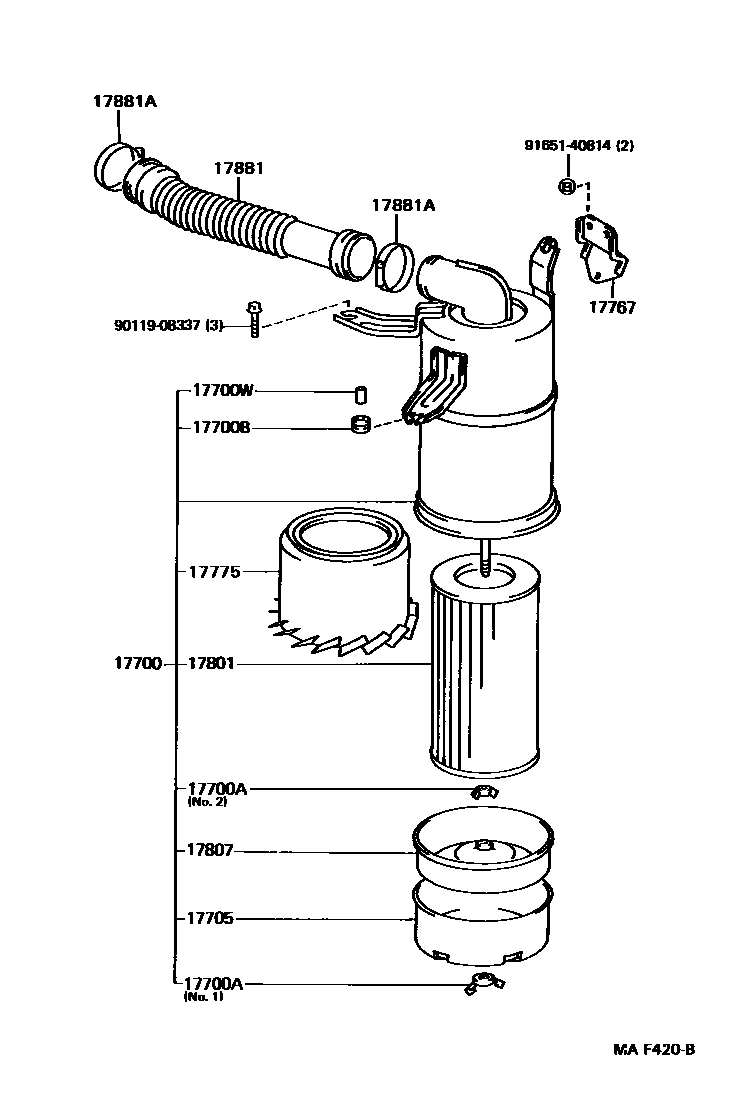

AIR CLEANER

0001 1 0002 1 0003 1 0004 1W(CYCLONE) 0006 1 0007 1 0008 1

17700CLEANER ASSY, AIR

main17700-13730i5K..KR2#199201-199610

main17700-13770i3Y..YR21,39199201-200007

CYCLONE AIR CLEANER

main17700-64090i2C..CR27199201-199610

main17700-72091i3Y#..YR21,39199201-200007

main17700-73043i4YEC..YR22199201-199610

17700ANUT, WING(FOR AIR CLEANER)

main90175-06003i2C..CR27199201-199610

NO.1

main94271-00800i2C..CR27199201-199610

NO.2

17700BWASHER, SEAL(FOR AIR CLEANER)

main90480-12010i2C..CR27199201-199610

17700WSPACER(FOR AIR CLEANER)

main90560-08038i2C..CR27199201-199610

17705CAP SUB-ASSY, AIR CLEANER

main17705-13140i5K..KR2#199201-200007

CYCLONE AIR CLEANER

main17705-13180i5K..KR2#199201-199610

main17705-64070i2C..CR27199201-199610

main17705-72030i3Y#..YR21,39199201-200007

main17705-73011i4YEC..YR22199201-199610

17767BRACKET, AIR CLEANER

main17771-28010i2C..CR27199201-199610

main17771-28020i5K..KR2#199201-200007

17775WING, CYCLONE

main17775-64010i2C..CR27199201-199610

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-13050i5K..KR2#199201-200007

CYCLONE AIR CLEANER

main17801-16010i3Y#..YR21,39199201-200007

main17801-64030i2C..CR27199201-199610

main17801-70010i4YEC..YR22199201-199610

17807PLATE SUB-ASSY, AIR CLEANER FILTER SET

main17703-64010i2C..CR27199201-199610

17881HOSE, AIR CLEANER, NO.1

main17880-64240i2C..CR27199201-199610

main17881-13130i5K..KR2#199201-199610

main17881-71060i3Y#..YR21,39199201-200007

main17881-73020i4YEC..YR22199201-199610

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-73003i2C..CR27199201-199610

MANIFOLD SIDE

sub90460-73011

main90460-77003i2C..CR27199201-199610

AIR CLEANER SIDE

main90460-80001i5K..KR2#199201-200007

sub90460-80006

main96111-10710i4YEC..YR22199201-199610

THROTTLE BODY SIDE

main96111-10800i4YEC..YR22199201-199610

AIR FLOW METER SIDE

9011908337

main90119-08337

9165140814

main91651-40814

13 parts on this diagram · 7 diagrams in section
