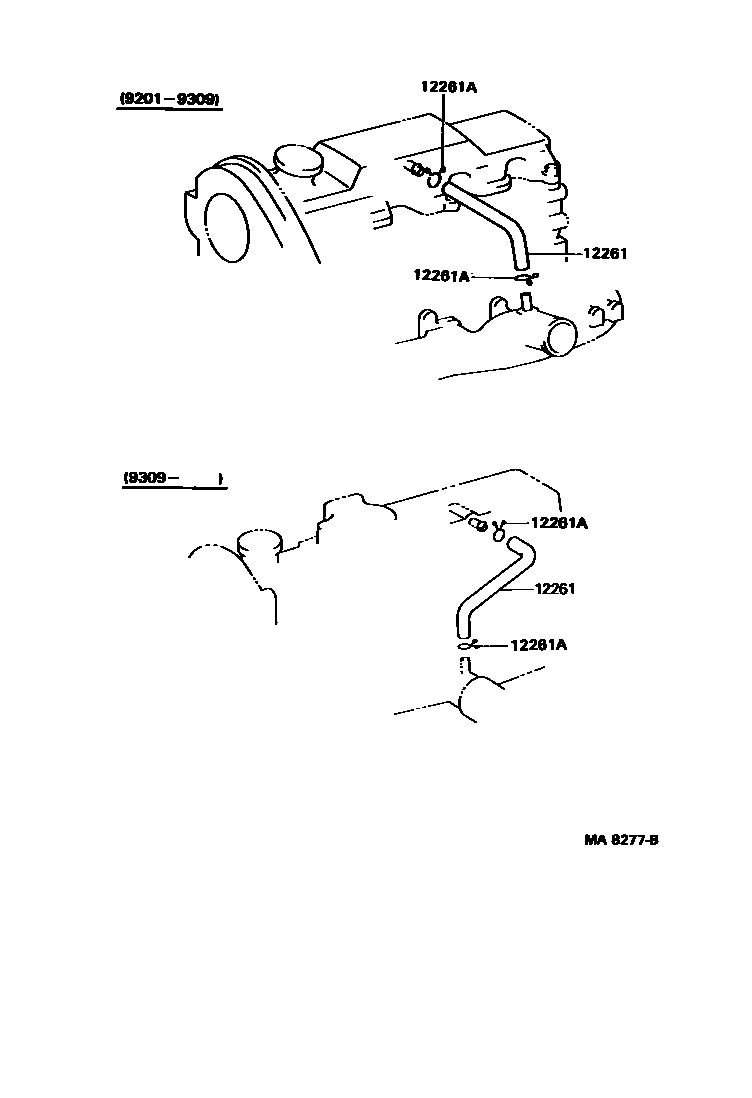

VENTILATION HOSE

0001 1 0002 1 0003 1 0004 1

12261HOSE, VENTILATION

main12261-64060i2C..CR27199201-199309

main12261-64150i2C..CR27199309-199610

main12261-72020i3Y#..YR21,39199201-200007

main12261-73021i4YEC..YR22199201-199610

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-15006×2i4YEC..YR22199201-199610

main90467-15120i2C..CR27199309-199310

NO.1

main90467-17126i2C..CR27199309-199310

NO.2

2 parts on this diagram · 4 diagrams in section
