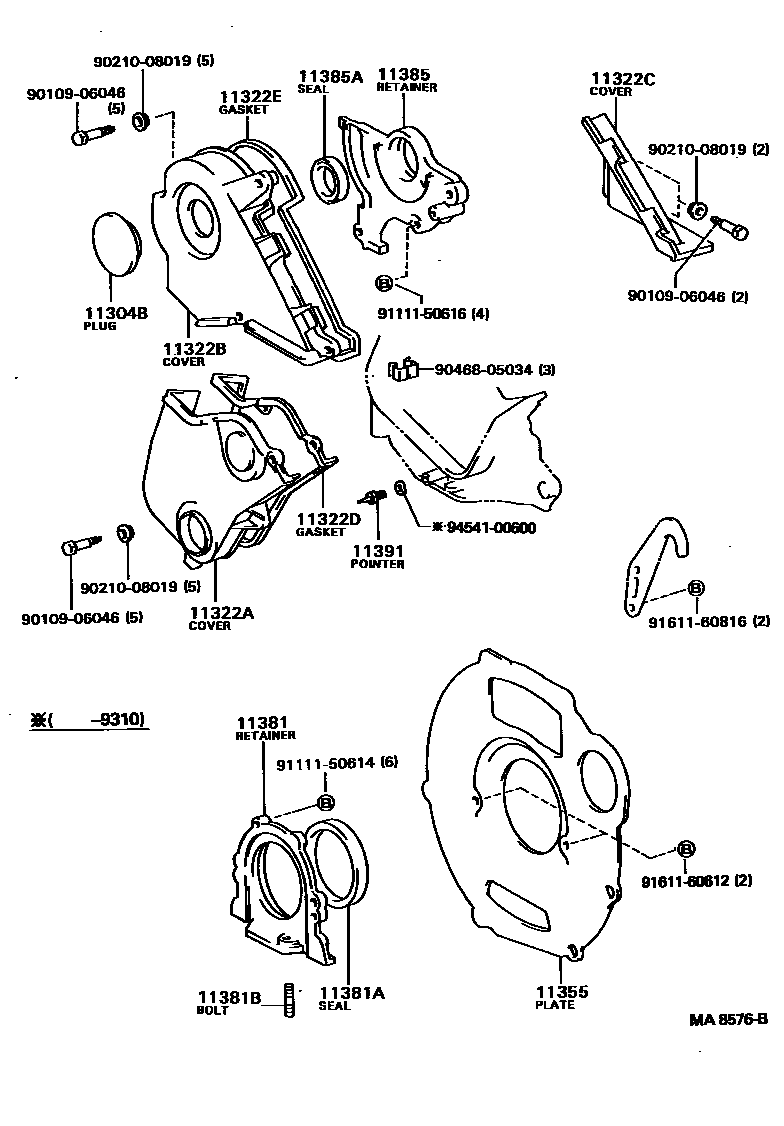

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11304BPLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)

main90950-01357i2C..CR27199201-199610

OD=64

11322ACOVER, TIMING BELT, NO.1

main11321-64010i2C..CR27199201-199610

11322BCOVER, TIMING BELT, NO.2

main11322-64010i2C..CR27199201-199610

11322CCOVER, TIMING BELT, NO.3

main11323-64011i2C..CR27199201-199610

11322DGASKET, TIMING BELT COVER, NO.1

main11328-64020i2C..CR27199201-199610

11322EGASKET, TIMING BELT COVER, NO.2

main11329-64020i2C..CR27199201-199610

11355PLATE, REAR END

main11355-13012i5K..KR2#199201-199610

main11355-24043i5K..KR27..06S199201-199309

HONG KONG SPEC

main11355-64011i2C..CR27199201-199610

main11355-71010i3Y#,4YEC..YR2#,39..MTM199201-200007

main11355-71021i3YC,4YEC..YR22,39..ATM199201-199610

11381RETAINER, ENGINE REAR OIL SEAL

main11381-13011i5K..KR2#199201-199610

main11381-64012i2C..CR27199201-199610

main11381-71010i3Y#,4YEC..YR2#,39199201-200007

11381ASEAL, ENGINE REAR OIL

main90311-70004i5K..KR2#199201-199610

main90311-80009i3Y#,4YEC..YR2#,39199201-200007

main90311-90005i2C..CR27199201-199610

11381BBOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)

main90116-06035×2i5K..KR2#199201-199610

main90116-06134×2i2C..CR27199201-199610

11385RETAINER, CAMSHAFT OIL SEAL

main11382-64011i2C..CR27199201-199610

11385ASEAL, OIL(FOR CAMSHAFT)

main90311-38044i2C..CR27199201-199610

11391POINTER, TIMING

main11391-64020i2C..CR27199201-199610

9010906046

main90109-06046

9021008019

main90210-08019

9046805034

main90468-05034

9111150614

main91111-50614

9111150616

main91111-50616

9161160612

main91611-60612

9161160816

main91611-60816

9454100600

main94541-00600

21 parts on this diagram · 3 diagrams in section
