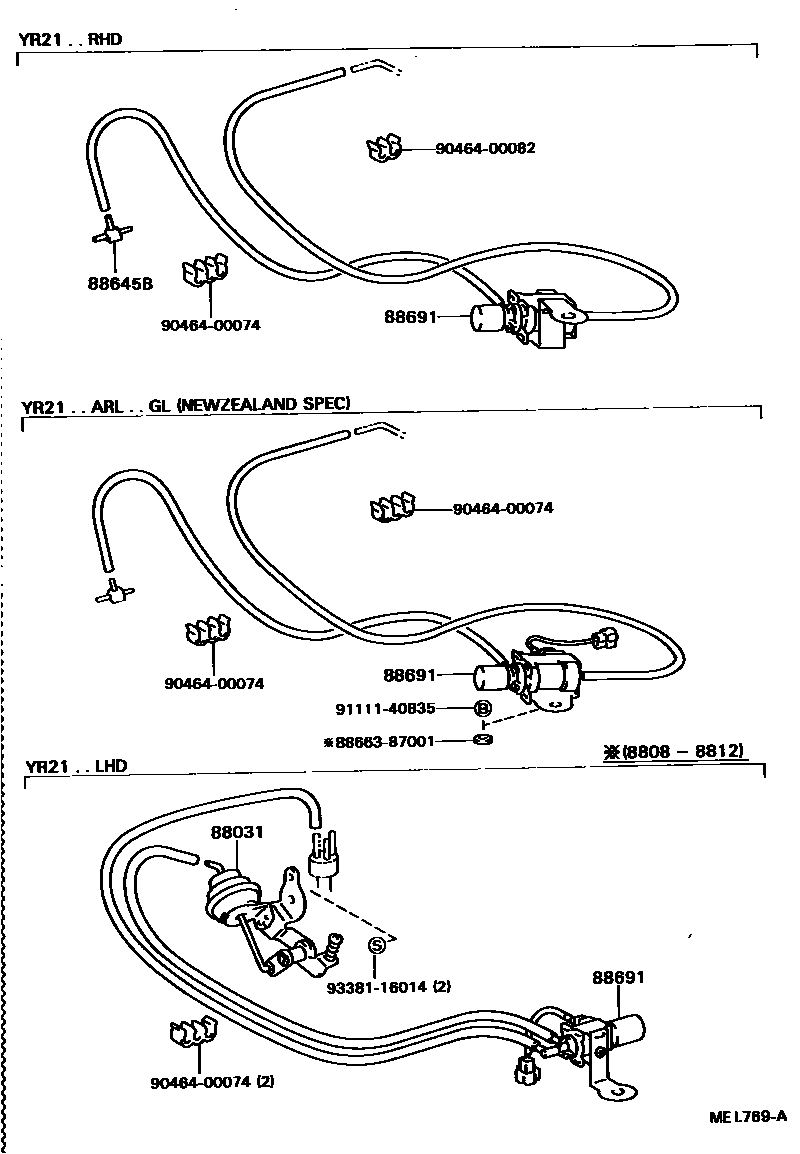

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1

88031ACTUATOR SET, IDLE-UP

main88031-28010iYR21..GEN198808-199001

88645BJOINT, NO.1 (FOR IDLE UP DIVICE)

main90413-04001iYR21..ARL198808-199001

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-28030iYR21..GEN198808-199001

main88690-87022iYR21..DLX; YR21..GL..ARL; YR22..DLX; YR22..HRF; YR22..MRF..GL198808-199001

main88690-87030iYR21..GL..ARL198808-199001

NEW ZEALAND SPEC

8866387001SPACER (FOR COOLER IDLER PULLEY AND BELT)

main88663-87001

9046400074

main90464-00074

9046400082

main90464-00082

9111140835

main91111-40835

9338116014

main93381-16014

8 parts on this diagram · 2 diagrams in section
