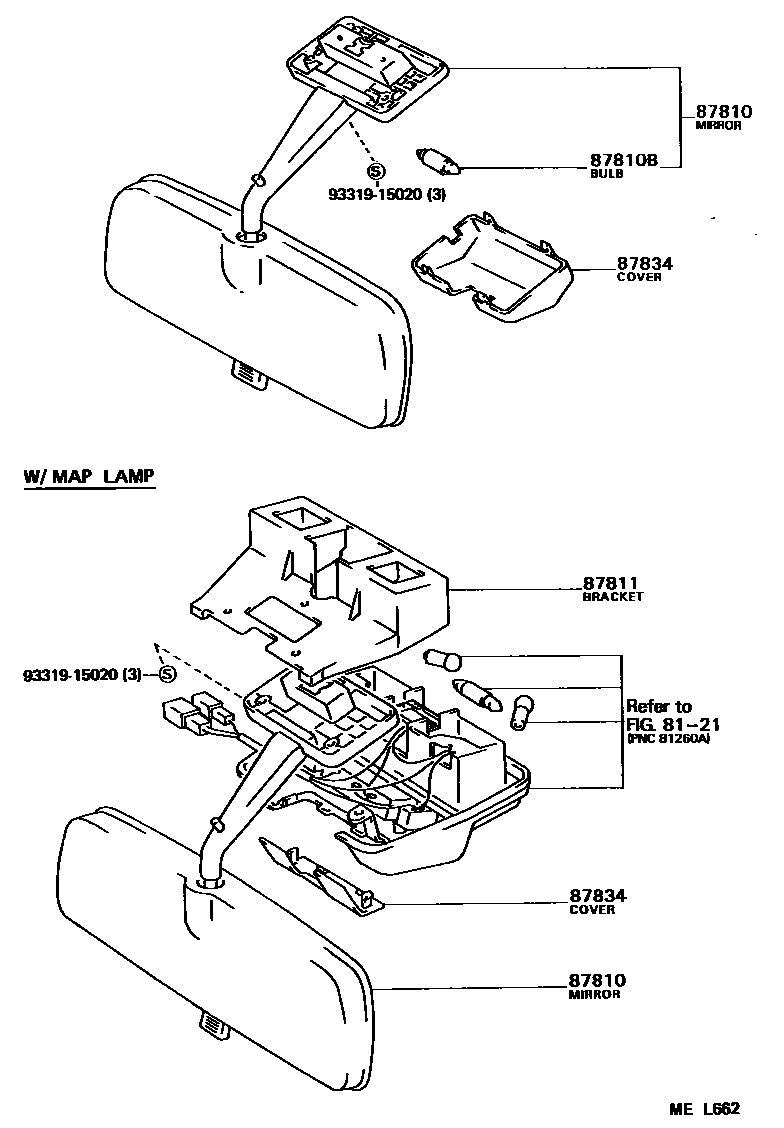

MIRROR

0001 1 0002 1

8121INTERIOR LAMP

→ Go to FIG 81-21

87810MIRROR ASSY, INNER REAR VIEW

main87801-28010-03iYR2#,31..MRF..GL198808-199001

GRAY,TRIM1#

main87801-28010-06iYR2#,31..GL198808-199001

LIGHT BROWN,TRIM4#

main87801-28030-03iYR2#..DLX198808-199001

GRAY,TRIM1#

main87801-87014-13iYR2#..DLX198808-199001

NON-GLARE INNER MIRROR,GRAY,TRIM1#

87810BBULB, INNER REAR VIEW MIRROR LAMP

main99132-12100iYR2#..DLX198808-199001

12V 10W

87811BRACKET, INNER RR VIEW MIRROR

main87811-87001iYR2#,31..GL198808-199001

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main81241-87001iYR2#..DLX198808-199001

main87834-87003-03iYR2#,31..MRF..GL198808-199001

GRAY,TRIM1#

main87834-87003-06iYR2#,31..GL198808-199001

LIGHT BROWN,TRIM4#

9331915020

main93319-15020

6 parts on this diagram · 2 diagrams in section
