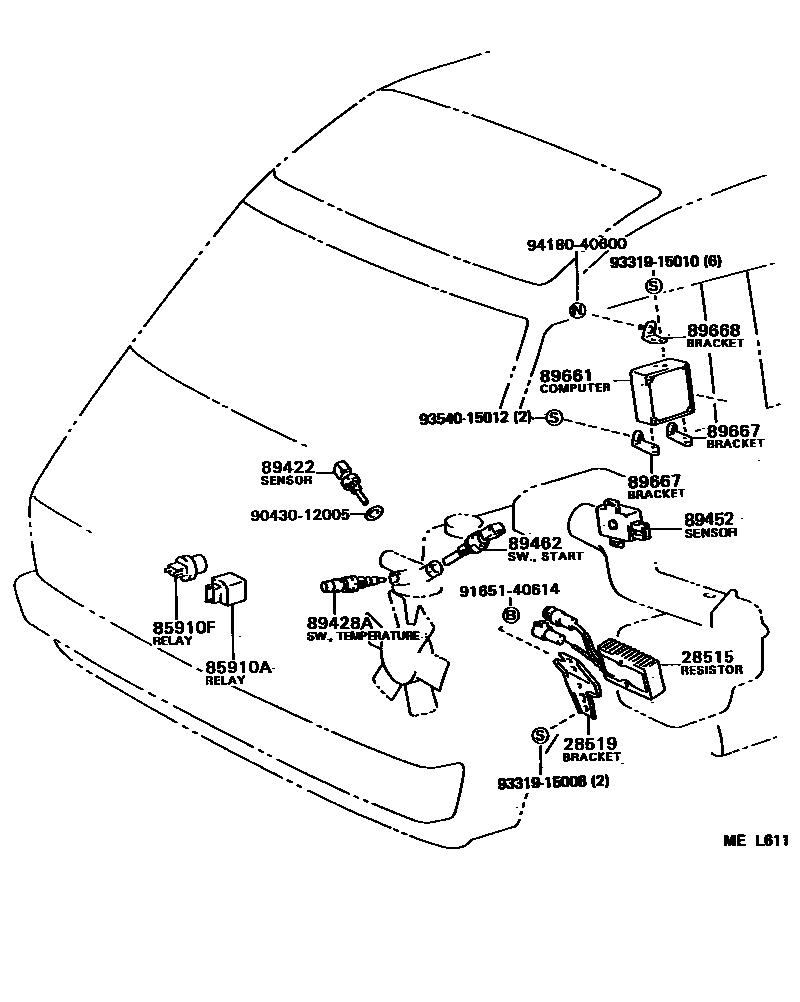

ELECTRONIC FUEL INJECTION SYSTEM

28515RESISTOR, SOLENOID

main28515-26020i4YEC..YR22,31198808-199001

sub28515-35010

28519BRACKET, SOLENOID RESISTOR

main28519-28010i4YEC..YR22,31198808-199001

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-30050iYR22,31198808-199001

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004iYR22,31198808-199001

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iYR22,31198808-199001

89428ASWITCH, WATER TEMPERATURE (FOR E.F.I)

main89428-28030iYR31198808-199001

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-14020iYR22,31198808-199001

89462SWITCH, START INJECTOR TIME

main89462-20030iYR22,31198808-199001

89661COMPUTER, ENGINE CONTROL

main89661-28100iYR22,31198808-199001

89667BRACKET, ENGINE CONTROL COMPUTER

main89567-28010iYR22,31198808-199001

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89568-28010iYR22,31198808-199001

9043012005

main90430-12005

9165140614

main91651-40614

9331915008

main93319-15008

9331915010

main93319-15010

9354015012

main93540-15012

9418040600

main94180-40600

17 parts on this diagram · 1 diagram in section
